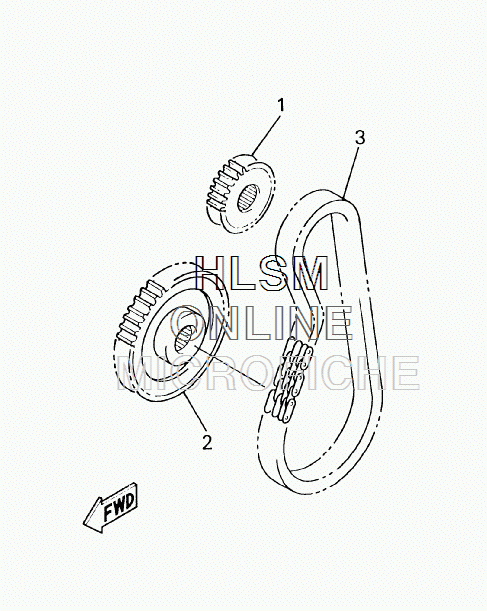

CHAINCASE - SPROCKET AND CHAINS (OPTION) для Yamaha APEX LTX - 2008 года выпуска`
-
№АртикулНазвание
-
18FA-17682-40-00 SPROCKET, CHAIN DRIVE (24T) (OPT)SPROCKET, CHAIN DRIVE (24T) (OPT)
-
18FA-17682-10-00 SPROCKET, CHAIN DRIVE (21T) (OPT)SPROCKET, CHAIN DRIVE (21T) (OPT)
-
18FA-17682-00-00 SPROCKET, CHAIN DRIVE (20T) (OPT)SPROCKET, CHAIN DRIVE (20T) (OPT)
-
18FA-17682-20-00 SPROCKET, CHAIN DRIVE (22T) (OPT)SPROCKET, CHAIN DRIVE (22T) (OPT)
-
18FA-17682-30-00 SPROCKET, CHAIN DRIVE (23T) (OPT)SPROCKET, CHAIN DRIVE (23T) (OPT)
-
18FA-17682-90-00 SPROCKET, CHAIN DRIVE (19T) (OPT)SPROCKET, CHAIN DRIVE (19T) (OPT)
-
18FA-17682-80-00 SPROCKET, CHAIN DRIVE (18T) (OPT)SPROCKET, CHAIN DRIVE (18T) (OPT)
-
28FB-47587-80-00 SPROCKET, CHAIN DRIVEN (38T) (OPT)SPROCKET, CHAIN DRIVEN (38T) (OPT)
-
28FB-47587-90-00 SPROCKET, CHAIN DRIVEN (39T) (OPT)SPROCKET, CHAIN DRIVEN (39T) (OPT)
-
28FB-47587-00-00 SPROCKET, CHAIN DRIVEN (40T) (OPT)SPROCKET, CHAIN DRIVEN (40T) (OPT)
-
394890-09070-00 CHAIN (70L) BORG WARN (OPT)CHAIN (70L) BORG WARN (OPT)
-
394890-09068-00 CHAIN (68L) BORG WARN (OPT)CHAIN (68L) BORG WARN (OPT)
