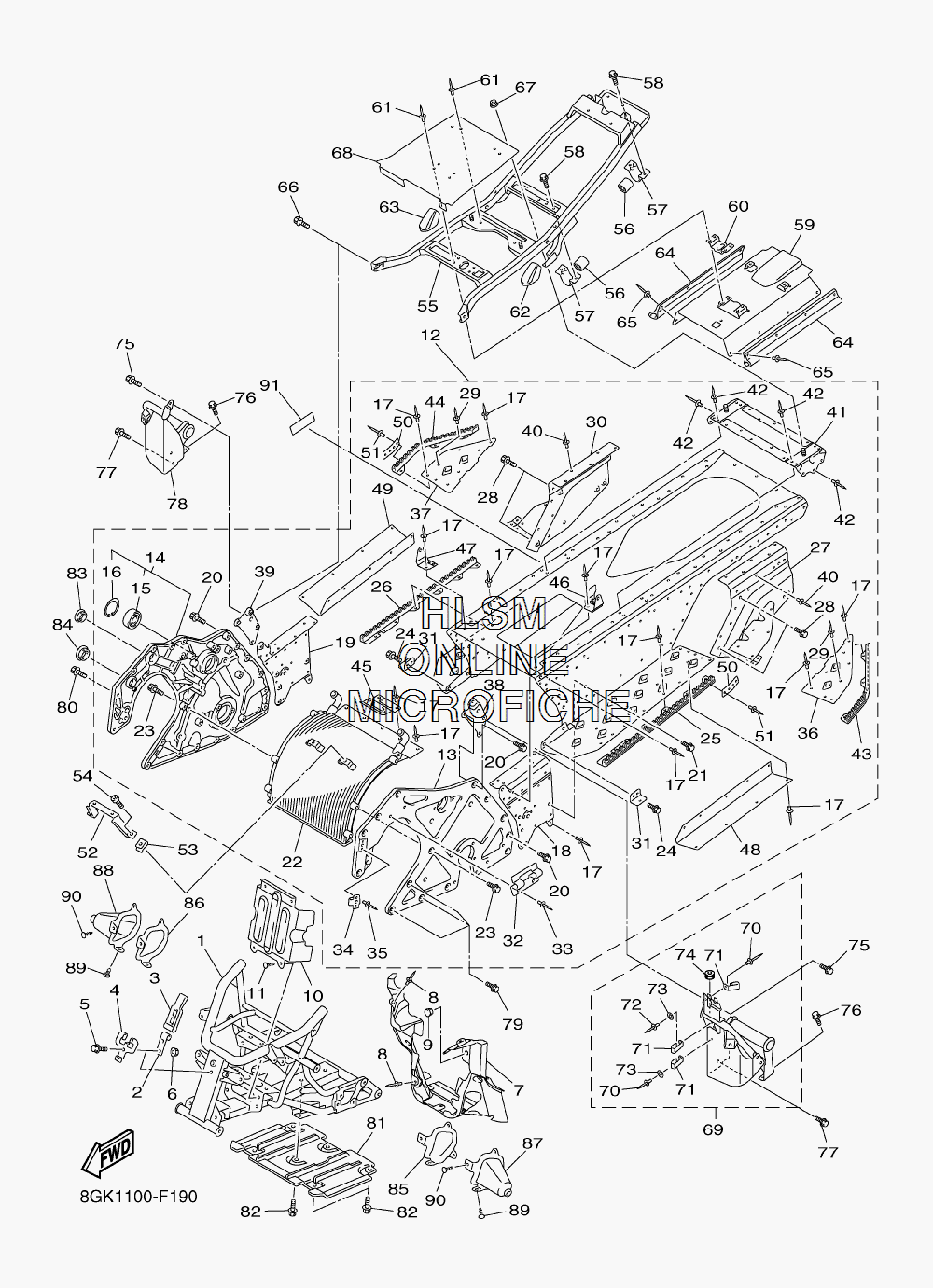

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha PHAZER FX - 2007 года выпуска`
-
№АртикулНазвание
-
18GK-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GC-2175V-00-00 BRACKET 3BRACKET 3
-
359V-21646-00-00 BANDBAND
-
48GC-2175W-00-00 BRACKET 4BRACKET 4
-
592017-05040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
695702-05500-00 NUT, WITH WASHERNUT, WITH WASHER
-
78GC-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
890267-48086-00 RIVET, BLINDRIVET, BLIND
-
990338-12192-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
108GC-2195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
1190269-05003-00 RIVETRIVET
-
128GK-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
138GC-21991-00-00 ...REINF., PANELL FRAME 1...REINF., PANELL FRAME 1
-
148GK-21930-00-00 ...HOUSING, REINF SUB-ASSY (R.H)...HOUSING, REINF SUB-ASSY (R.H)
-
1593306-20511-00 ...BEARING...BEARING
-
1699009-52500-00 ...CIRCLIP...CIRCLIP
-
1790267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
188GC-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
198GC-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
2095022-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2195822-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
228GC-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
2395822-08020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2490109-065G4-00 ...BOLT...BOLT
-
258GC-21926-01-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
268GC-21936-01-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
278GC-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
2895822-08014-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
308GC-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
318GC-21967-00-00 ...PATCH 7...PATCH 7
-
328GC-21973-00-00 ...HOOK...HOOK
-
3390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
342TK-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
3590267-32192-00 ...RIVET, BLIND...RIVET, BLIND
-
368GC-27452-00-00 ...BRACKET, FOOTREST 1...BRACKET, FOOTREST 1
-
378GC-27462-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
388GC-21963-00-00 ...PATCH 3...PATCH 3
-
398GC-21964-00-00 ...PATCH 4...PATCH 4
-
4090267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
418GC-21341-00-00 ...BRACKET, SEAT 1...BRACKET, SEAT 1
-
4290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
438GC-21927-01-00 ...REINFORCEMENT, RR. FOOTREST 1...REINFORCEMENT, RR. FOOTREST 1
-
448GC-21937-01-00 ...REINFORCEMENT, RR. FOOTREST 2...REINFORCEMENT, RR. FOOTREST 2
-
458GC-2164G-00-00 ...STAY 2...STAY 2
-
468GC-21238-00-00 ...BRACKET...BRACKET
-
478GC-21239-00-00 ...BRACKET 2...BRACKET 2
-
488GC-21961-00-00 ...PATCH 1...PATCH 1
-
498GC-21962-00-00 ...PATCH 2...PATCH 2
-
508GC-21988-00-00 ...PATCH 8...PATCH 8
-
5190267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
528GC-2164F-00-00 STAY 1STAY 1
-
5390183-06053-00 NUT, SPRINGNUT, SPRING
-
5491312-06012-00 BOLTBOLT
-
558GC-21160-00-00 SEAT RAIL COMPSEAT RAIL COMP
-
568GC-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
578GC-21121-00-00 BRACKET, DAMPERBRACKET, DAMPER
-
5895822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
598GC-2199H-10-00 SHIELD, HEATSHIELD, HEAT
-
608GC-1467H-00-00 BRACKET, SILENCER 1BRACKET, SILENCER 1
-
6190267-47195-00 RIVET, BLINDRIVET, BLIND
-
628GC-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
638GC-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
648GC-21852-00-00 DAMPERDAMPER
-
6590267-50010-00 RIVET, BLINDRIVET, BLIND
-
6695822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
6795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
688GC-21917-00-00 PANEL, SUB FRAME 6PANEL, SUB FRAME 6
-
698GJ-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
7090267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
7190465-08368-00 ...CLAMP...CLAMP
-
7290267-48083-00 ...RIVET, BLIND...RIVET, BLIND
-
7390201-043H7-00 ...WASHER, PLATE...WASHER, PLATE
-
7490480-13163-00 ...GROMMET...GROMMET
-
7595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7695022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
7790105-06080-00 BOLT, FLANGEBOLT, FLANGE
-
788GJ-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
7995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8095827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
818GC-2193A-00-00 PROTECTORPROTECTOR
-
8290109-066G1-00 BOLTBOLT
-
8390480-27001-00 GROMMETGROMMET
-
8490480-40003-00 GROMMETGROMMET
-
858GC-2195E-00-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
868GC-2195F-00-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
878GC-2198F-00-00 COVER 1COVER 1
-
888GC-2198J-00-00 COVER 3COVER 3
-
8990269-05003-00 RIVETRIVET
-
9090269-05002-00 RIVETRIVET
-
918GC-2179D-00-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
