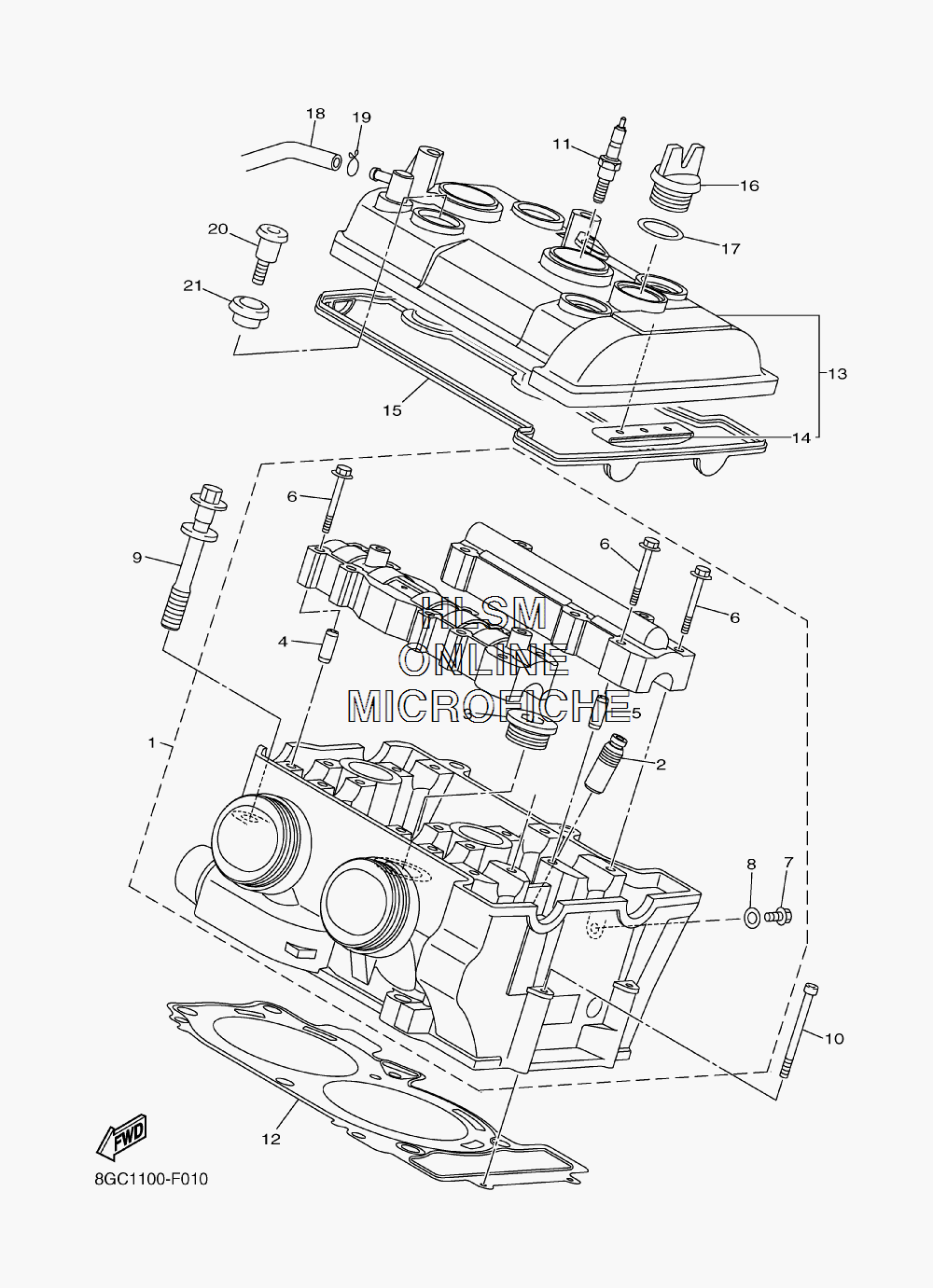

CYLINDER W/ HEAD ASSY для Yamaha PHAZER FX - 2007 года выпуска`
-
№АртикулНазвание
-
18GC-11101-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25NL-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
390340-20004-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
591808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
795022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
890430-06014-00 ...GASKET...GASKET
-
990119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1091312-06060-00 BOLTBOLT
-
11NGK-CR9EK-B0-00 PLUG, SPARK (NGK CR9EKB)PLUG, SPARK (NGK CR9EKB)
-
128GC-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
138GC-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
145BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
158GC-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
163Y1-15363-00-00 PLUG, OILPLUG, OIL
-
1793210-19123-00 O-RINGO-RING
-
188GC-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-10041-00 CLIPCLIP
-
2090109-066F0-00 BOLTBOLT
-
215VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- • CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
