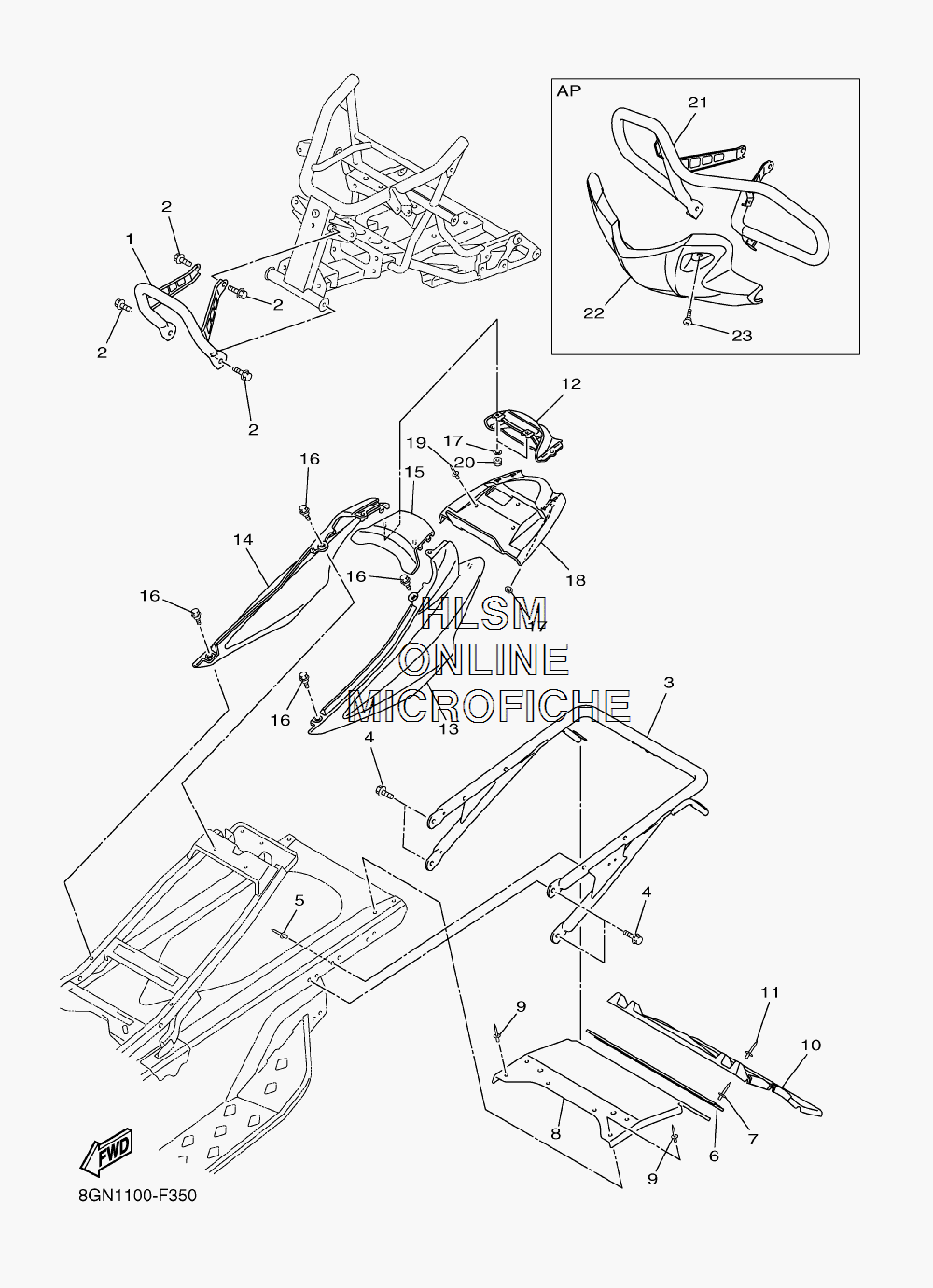

BUMPER - FRONT AND REAR для Yamaha PHAZER FX - 2007 года выпуска`
-
№АртикулНазвание
-
18GC-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38GC-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47195-00 RIVET, BLINDRIVET, BLIND
-
68GC-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
790267-47195-00 RIVET, BLINDRIVET, BLIND
-
88GC-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
990267-47195-00 RIVET, BLINDRIVET, BLIND
-
108GT-K7595-00-00 FLAPFLAP
-
1190267-47187-00 RIVET, BLINDRIVET, BLIND
-
128GC-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
138GC-77551-00-00 PROTECTOR 1 FOR DPBSEPROTECTOR 1 FOR DPBSE
-
138GC-77551-20-00 PROTECTOR 1 UR FOR PMIBPROTECTOR 1 UR FOR PMIB
-
148GC-77552-00-00 PROTECTOR 2 FOR DPBSEPROTECTOR 2 FOR DPBSE
-
148GC-77552-20-00 PROTECTOR 2 UR FOR PMIBPROTECTOR 2 UR FOR PMIB
-
158GC-77553-00-00 PROTECTOR 3 FOR DPBSEPROTECTOR 3 FOR DPBSE
-
158GC-77553-20-00 PROTECTOR 3 UR FOR PMIBPROTECTOR 3 UR FOR PMIB
-
1690109-06220-00 BOLTBOLT
-
1790183-06011-00 NUT, SPRINGNUT, SPRING
-
188GC-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1990267-47187-00 RIVET, BLINDRIVET, BLIND
-
2090480-11454-00 GROMMETGROMMET
-
218GR-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
228GR-77555-00-00 PROTECTOR 5PROTECTOR 5
-
2390149-06263-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
