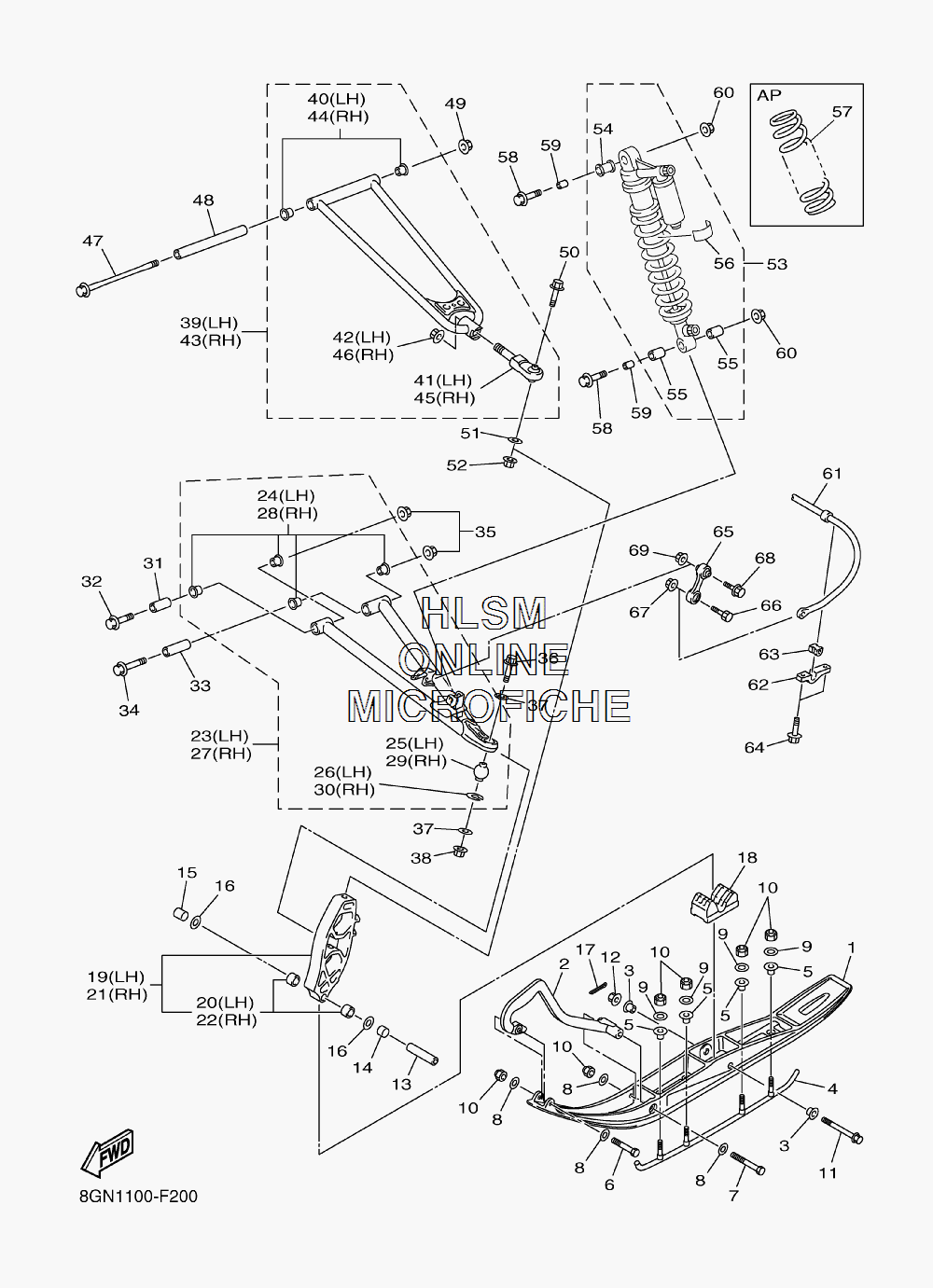

SUSPENSION - FRONT W/ SKI ASSY для Yamaha PHAZER FX - 2007 года выпуска`
-
№АртикулНазвание
-
18EX-F3711-00-00 SKI 1, BLACKSKI 1, BLACK
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASTIC FOR DPBSEBLUE 8DM HANDLE PLASTIC FOR DPBSE
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTIC FOR PMIBBLACK 8DM HANDLE PLASTIC FOR PMIB
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48GK-F3731-00-00 RUNNER 8RUNNER 8
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT,SELF-LOCKINGNUT,SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16018-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GK-23743-00-00 STOPPER 1STOPPER 1
-
198GK-23501-01-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
218GK-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238GN-23570-00-P0 FRONT LOWER ARM COMP. (LEFT) DPBMC FOR DPBSEFRONT LOWER ARM COMP. (LEFT) DPBMC FOR DPBSE
-
238GN-23570-00-P2 FRONT LOWER ARM COMP. (LEFT) MT2 FOR PMIBFRONT LOWER ARM COMP. (LEFT) MT2 FOR PMIB
-
2490381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
258GK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-35700-00 ...CIRCLIP...CIRCLIP
-
278GN-23580-00-P0 FRONT LOWER ARM COMP. (RIGHT) DPBMC FOR DPBSEFRONT LOWER ARM COMP. (RIGHT) DPBMC FOR DPBSE
-
278GN-23580-00-P2 FRONT LOWER ARM COMP. (RIGHT) MT2 FOR PMIBFRONT LOWER ARM COMP. (RIGHT) MT2 FOR PMIB
-
2890381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
298GK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
3099009-35700-00 ...CIRCLIP...CIRCLIP
-
3190387-10056-00 COLLARCOLLAR
-
3290105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3390387-10057-00 COLLARCOLLAR
-
3490105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-10051-00 WASHER, PLATEWASHER, PLATE
-
3895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
398GK-23540-00-P0 FRONT UPPER ARM COMP. (LEFT) DPBMC FOR DPBSEFRONT UPPER ARM COMP. (LEFT) DPBMC FOR DPBSE
-
398GK-23540-00-P2 FRONT UPPER ARM COMP. (LEFT) MT2 FOR PMIBFRONT UPPER ARM COMP. (LEFT) MT2 FOR PMIB
-
4090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
418GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4295602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
438GK-23550-00-P0 FRONT UPPER ARM COMP. (RIGHT) DPBMC FOR DPBSEFRONT UPPER ARM COMP. (RIGHT) DPBMC FOR DPBSE
-
438GK-23550-00-P2 FRONT UPPER ARM COMP. (RIGHT) MT2 FOR PMIBFRONT UPPER ARM COMP. (RIGHT) MT2 FOR PMIB
-
4490381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
458GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4695602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4790105-10213-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-10058-00 COLLARCOLLAR
-
4995602-10200-00 NUT, U FLANGENUT, U FLANGE
-
5091312-10045-00 BOLTBOLT
-
5190201-10052-00 WASHER, PLATEWASHER, PLATE
-
5295602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538GN-2376A-00-00 ABSORBER ASSY 1 (OPT) FOR DPBSEABSORBER ASSY 1 (OPT) FOR DPBSE
-
538GN-2376A-30-00 ABSORBER ASSY 1 (OPT) FOR PMIBABSORBER ASSY 1 (OPT) FOR PMIB
-
548GN-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
5590384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
564AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
578FA-23760-00-00 SPRING ASSY 1 (K=21N/MM)SPRING ASSY 1 (K=21N/MM)
-
5895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5990387-10024-00 COLLARCOLLAR
-
6095602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
618GN-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
628GN-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
638GN-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6495812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
658GN-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6697012-10035-00 BOLTBOLT
-
6795602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6895812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
6995602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
