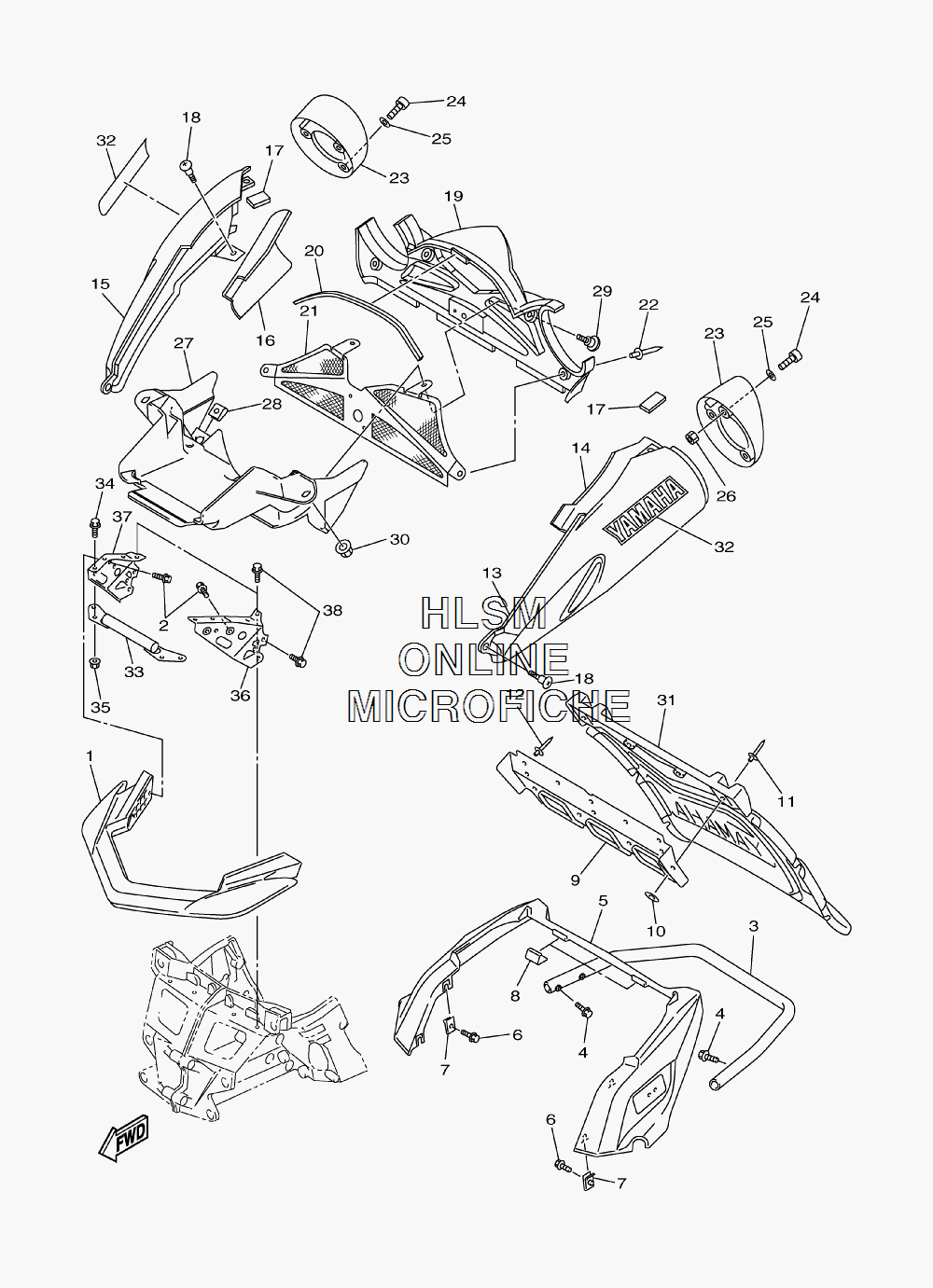

BUMPER - FRONT AND REAR для Yamaha APEX GT - 2007 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FP-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88FA-7717H-00-00 TAPE 4TAPE 4
-
98GH-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
1090201-04325-00 WASHER, PLATEWASHER, PLATE
-
1190267-47200-00 RIVET, BLINDRIVET, BLIND
-
1290267-48095-00 RIVET, BLINDRIVET, BLIND
-
138FP-77551-00-P0 PROTECTOR 1 (DRMK)PROTECTOR 1 (DRMK)
-
138FP-77551-00-P2 PROTECTOR 1 (S3 FOR YB)PROTECTOR 1 (S3 FOR YB)
-
148FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
158FP-77552-00-P0 PROTECTOR 2 (DRMK)PROTECTOR 2 (DRMK)
-
158FP-77552-00-P2 PROTECTOR 2 (S3 FOR YB)PROTECTOR 2 (S3 FOR YB)
-
168FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
178FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
1890154-06009-00 SCREW, BINDINGSCREW, BINDING
-
198FP-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
208FP-77234-00-00 TRIM 8TRIM 8
-
218FP-77441-00-00 LOUVER 1LOUVER 1
-
2290267-47187-00 RIVET, BLINDRIVET, BLIND
-
238FP-77517-00-00 CAPCAP
-
2491314-06020-00 BOLTBOLT
-
2592990-06200-00 WASHER, PLAINWASHER, PLAIN
-
2695380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
278FP-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2890183-06053-00 NUT, SPRINGNUT, SPRING
-
2990154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3095607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
318GT-K7595-00-00 FLAPFLAP
-
3299244-00140-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
338FP-21979-00-00 BRACKET ,FR. FOODBRACKET ,FR. FOOD
-
3495827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3595707-06500-00 NUT, FLANGENUT, FLANGE
-
368FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
378FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
3895827-08016-00 BOLT, FLANGEBOLT, FLANGE
