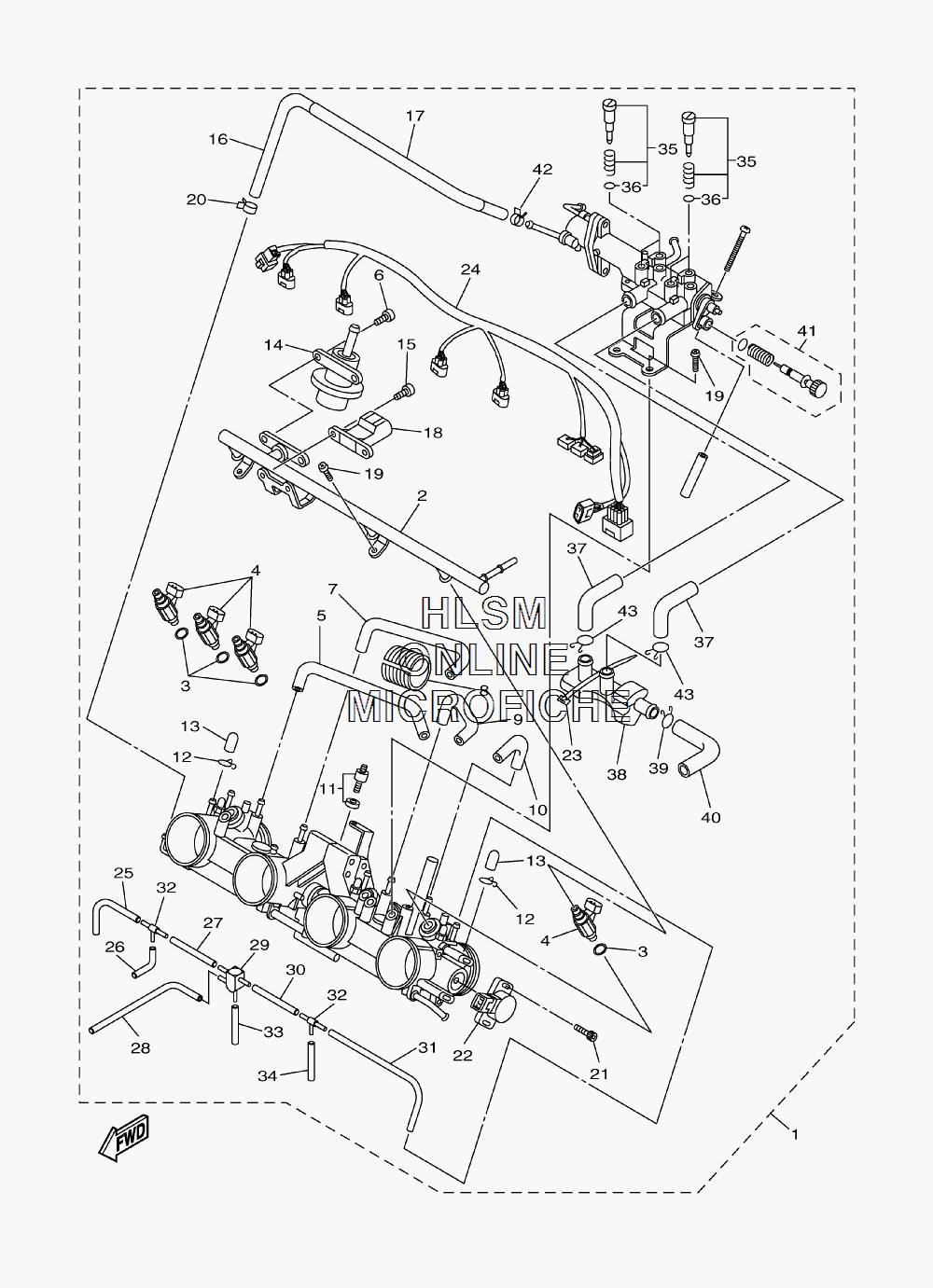

THROTTLE BODY ASSY для Yamaha APEX GT - 2007 года выпуска
-
№АртикулНазвание
-
18FP-13750-02-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13938-00-00 ...PIPE...PIPE
-
38FP-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
48FP-13761-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
58FP-14987-00-00 ...HOSE...HOSE
-
698507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
78FP-14987-10-00 ...HOSE...HOSE
-
88FP-14396-00-00 ...PIPE...PIPE
-
98FP-14987-20-00 ...HOSE...HOSE
-
108FP-14987-30-00 ...HOSE...HOSE
-
115JW-14103-10-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
128A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
13895-14169-00-00 ...CAP...CAP
-
148FP-13906-00-00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
1592507-06010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
168FP-14348-00-00 ...PIPE 1...PIPE 1
-
178FP-14348-10-00 ...PIPE 1...PIPE 1
-
185PS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
1998507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2090467-11028-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
218CC-14216-10-00 ...SCREW...SCREW
-
225PS-85885-01-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
234KM-14137-00-00 ...CLIP...CLIP
-
248FP-82386-01-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
255JW-14348-00-00 ...PIPE 1...PIPE 1
-
268FP-14349-00-00 ...PIPE...PIPE
-
275PS-14987-00-00 ...HOSE...HOSE
-
288FP-14349-10-00 ...PIPE...PIPE
-
295PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
308FP-14349-20-00 ...PIPE...PIPE
-
315JW-14987-00-00 ...HOSE...HOSE
-
3268V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
335FL-14348-10-00 ...PIPE 1...PIPE 1
-
348FP-14349-30-00 ...PIPE...PIPE
-
355JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
363H1-14147-00-00 ...O-RING...O-RING
-
378FP-14148-00-00 ...PIPE...PIPE
-
388FP-14454-00-00 ...JOINT...JOINT
-
3990467-22080-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
408FP-14149-00-00 ...PIPE...PIPE
-
418FP-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
428FP-13577-00-00 ...CLIP...CLIP
-
438FP-14137-00-00 ...CLIP...CLIP
