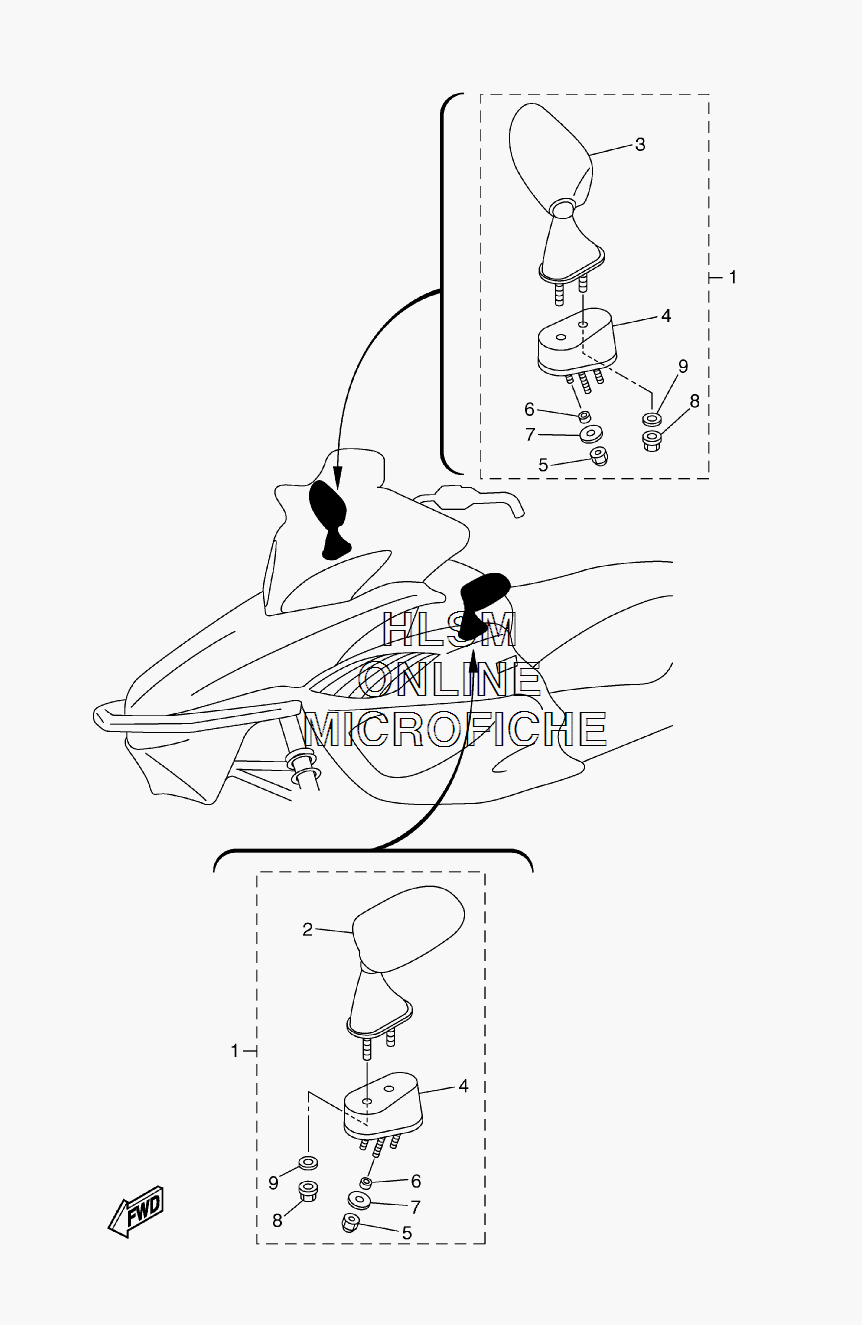

REAR VIEW MIRROR ASSY (OPTION) для Yamaha APEX GT - 2007 года выпуска`
-
№АртикулНазвание
-
18FP-W2628-02-00 REAR VIEW MIRROR SET (OPT)REAR VIEW MIRROR SET (OPT)
-
24SV-26280-00-00 ...REAR VIEW MIRROR ASSY (LEFT)...REAR VIEW MIRROR ASSY (LEFT)
-
34SV-26290-00-00 ...REAR VIEW MIRROR ASSY (RIGHT)...REAR VIEW MIRROR ASSY (RIGHT)
-
48FP-2628N-10-00 ...BASE, MIRROR...BASE, MIRROR
-
595707-06300-00 ...NUT, NYLON...NUT, NYLON
-
690387-06008-00 ...COLLAR...COLLAR
-
790201-06557-00 ...WASHER, PLATE...WASHER, PLATE
-
895607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
990201-063A5-00 ...WASHER, PLATE...WASHER, PLATE
