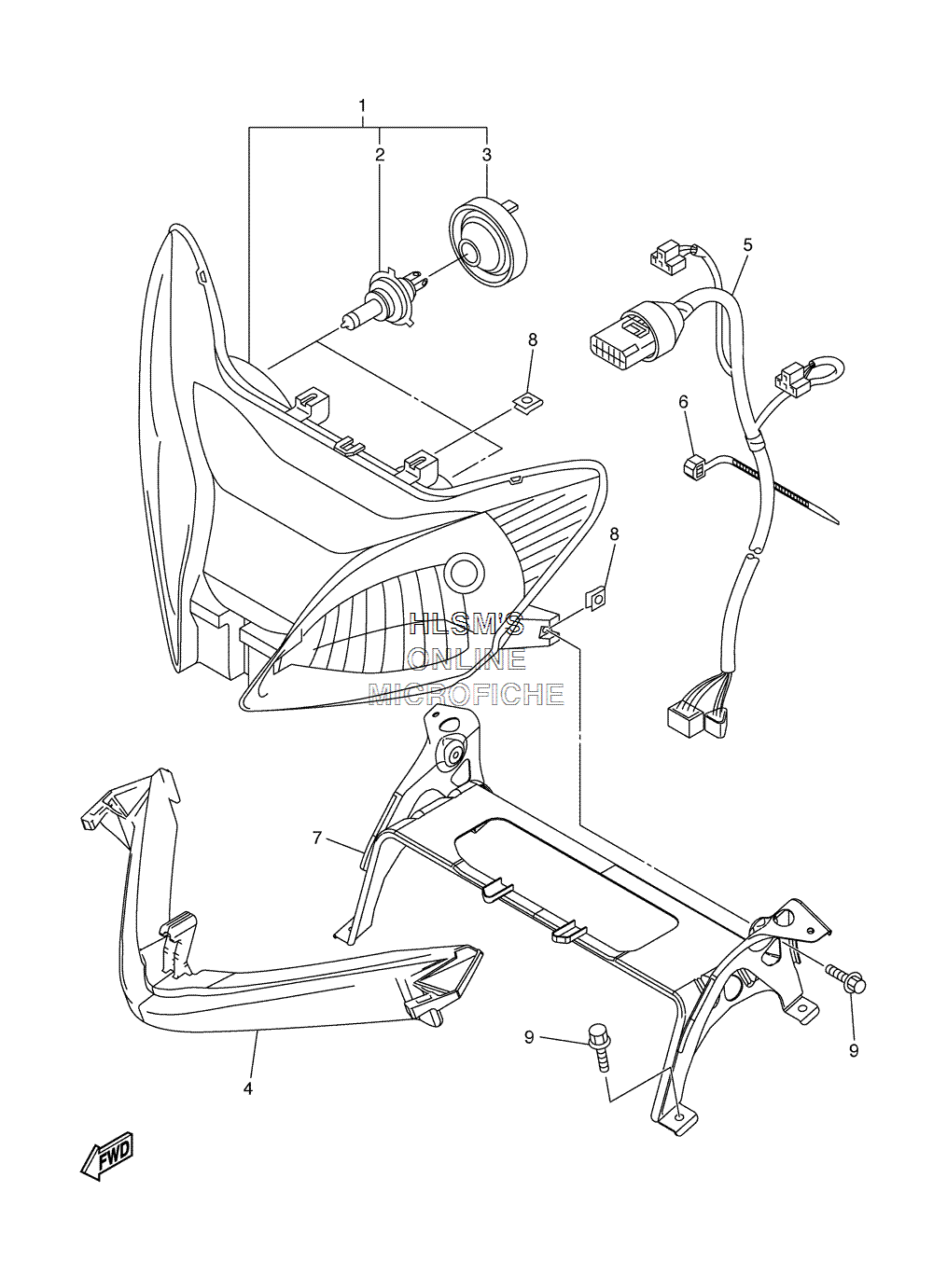

ELECTRICAL - HEADLIGHT ASSY для Yamaha APEX GT - 2006 года выпуска`
-
№АртикулНазвание
-
18FP-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28FP-84314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
38EK-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
48FP-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
58FP-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
690464-13077-00 CLAMPCLAMP
-
78FP-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
890183-06100-00 NUT, SPRINGNUT, SPRING
-
995807-06016-00 BOLT, FLANGEBOLT, FLANGE
