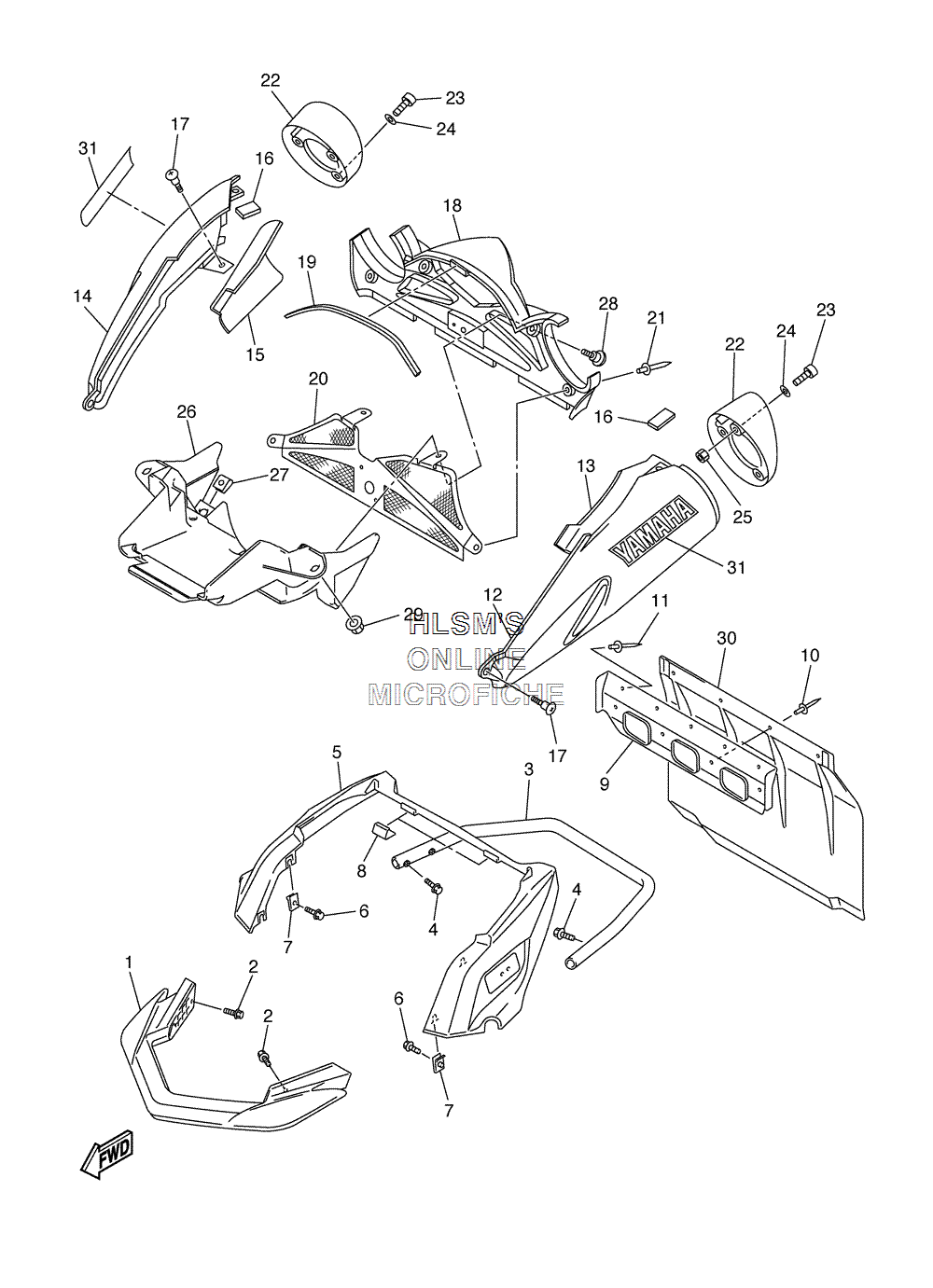

BUMPER - FRONT AND REAR для Yamaha APEX GT - 2006 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FP-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88FA-7717H-00-00 TAPE 4TAPE 4
-
98FU-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
1090267-47200-00 RIVET, BLINDRIVET, BLIND
-
1190267-48095-00 RIVET, BLINDRIVET, BLIND
-
128FP-77551-00-P1 PROTECTOR 1 (SILVER)PROTECTOR 1 (SILVER)
-
138FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
148FP-77552-00-P1 PROTECTOR 2 (SILVER)PROTECTOR 2 (SILVER)
-
158FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
168FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
1790154-06009-00 SCREW, BINDINGSCREW, BINDING
-
188FP-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
198FP-77234-00-00 TRIM 8TRIM 8
-
208FP-77441-00-00 LOUVER 1LOUVER 1
-
2190267-47187-00 RIVET, BLINDRIVET, BLIND
-
228FP-77517-00-00 CAPCAP
-
2391314-06020-00 BOLTBOLT
-
2492990-06200-00 WASHER, PLAINWASHER, PLAIN
-
2595380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
268FP-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2790183-06053-00 NUT, SPRINGNUT, SPRING
-
2890154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2995607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
308ED-K7595-01-00 FLAP (BLACK)FLAP (BLACK)
-
3199244-00140-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
