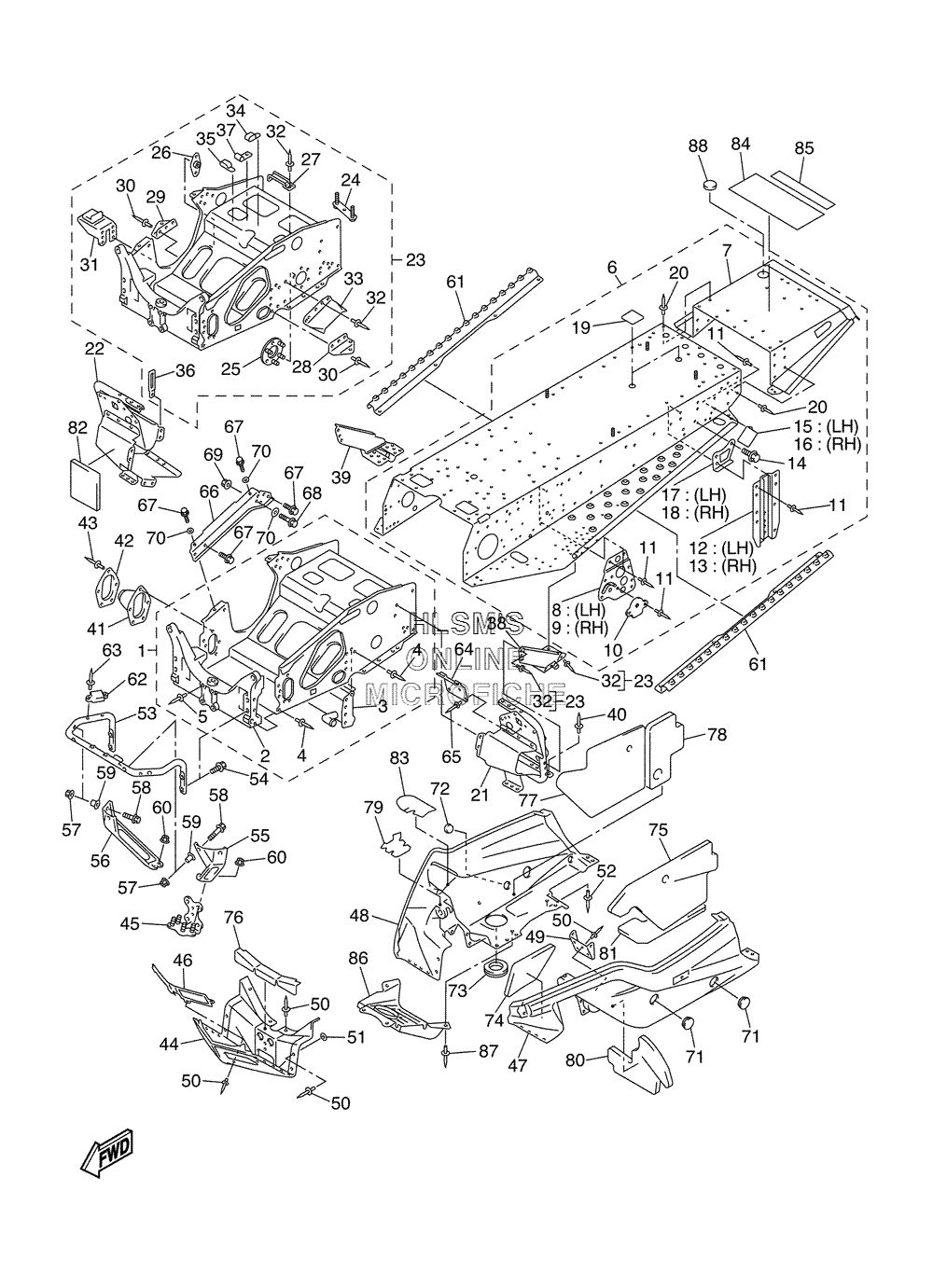

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SX VIPER MOUNTAIN - 2005 года выпуска
-
№АртикулНазвание
-
18EK-21940-18-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28EK-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38EK-12440-10-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
590267-48057-00 ...RIVET, BLIND...RIVET, BLIND
-
68EN-21950-A9-00 REAR FRAME COMP.REAR FRAME COMP.
-
78EN-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
88EN-21991-A0-00 ...REINF., PANELL FRAME 1...REINF., PANELL FRAME 1
-
98EN-21992-A0-00 ...REINF., PANELL FRAME 2...REINF., PANELL FRAME 2
-
108EN-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
1190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
128EN-21944-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
138EN-21954-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
1495817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
158EN-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
168EN-2197N-00-00 ...BRACKET 7...BRACKET 7
-
178EN-21988-00-00 ...PATCH 8...PATCH 8
-
188EN-21989-00-00 ...PATCH 9...PATCH 9
-
198CR-2198J-00-00 ...COVER 3...COVER 3
-
2090267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
218EK-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
228EK-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
238EN-W2195-01-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
248CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
258EK-21920-01-00 ...HOUSING, REINF SUB-ASSY. (L.H)...HOUSING, REINF SUB-ASSY. (L.H)
-
268CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
278DN-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
288EK-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
298EK-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
3090267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
318EK-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
3290267-47186-00 ...RIVET, BLIND (QTY:140)...RIVET, BLIND (QTY:140)
-
338CR-2198G-01-00 ...COVER 2...COVER 2
-
3490461-05003-00 ...CLAMP...CLAMP
-
3590461-06142-00 ...CLAMP...CLAMP
-
3690462-05059-00 ...CLAMP...CLAMP
-
3790461-10148-00 ...CLAMP...CLAMP
-
388DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
398DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
4090269-07080-00 RIVETRIVET
-
418DN-2198F-00-00 COVER 1COVER 1
-
428CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
4390267-47197-00 RIVET, BLINDRIVET, BLIND
-
448EK-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
458EK-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
468CR-77128-00-00 STAY 4STAY 4
-
478EK-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
488EN-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
498EK-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
5090267-48018-00 RIVET, BLINDRIVET, BLIND
-
5190201-05033-00 WASHER, PLATEWASHER, PLATE
-
5290267-47187-00 RIVET, BLINDRIVET, BLIND
-
538EK-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
5495807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
558EK-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
568EK-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
5795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5895807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
5990387-08015-00 COLLARCOLLAR
-
6095707-08500-00 NUT, FLANGENUT, FLANGE
-
618ED-2192A-30-00 PLATE, ANTI-SKIDPLATE, ANTI-SKID
-
628DJ-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
6390267-48018-00 RIVET, BLINDRIVET, BLIND
-
648CR-21973-00-00 HOOKHOOK
-
6590267-48169-00 RIVET, BLINDRIVET, BLIND
-
668EK-21921-00-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6790105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6895827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6995707-10500-00 NUT, FLANGENUT, FLANGE
-
7092907-10200-00 WASHER, PLAINWASHER, PLAIN
-
7190338-44093-00 PLUGPLUG
-
7290338-30256-00 PLUGPLUG
-
738DF-21998-10-00 SPACERSPACER
-
748EK-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
758EK-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
768EK-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
778EK-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
788EK-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
798EK-77266-10-00 LINING, SHROUD 6LINING, SHROUD 6
-
808EK-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
818EK-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
828EK-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
838EN-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
848EN-77143-01-00 EMBLEM 3EMBLEM 3
-
8588X-77762-10-00 LABEL, WARNING 2LABEL, WARNING 2
-
868EN-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
8790267-49004-00 RIVET, BLINDRIVET, BLIND
-
8890338-44019-00 PLUGPLUG
