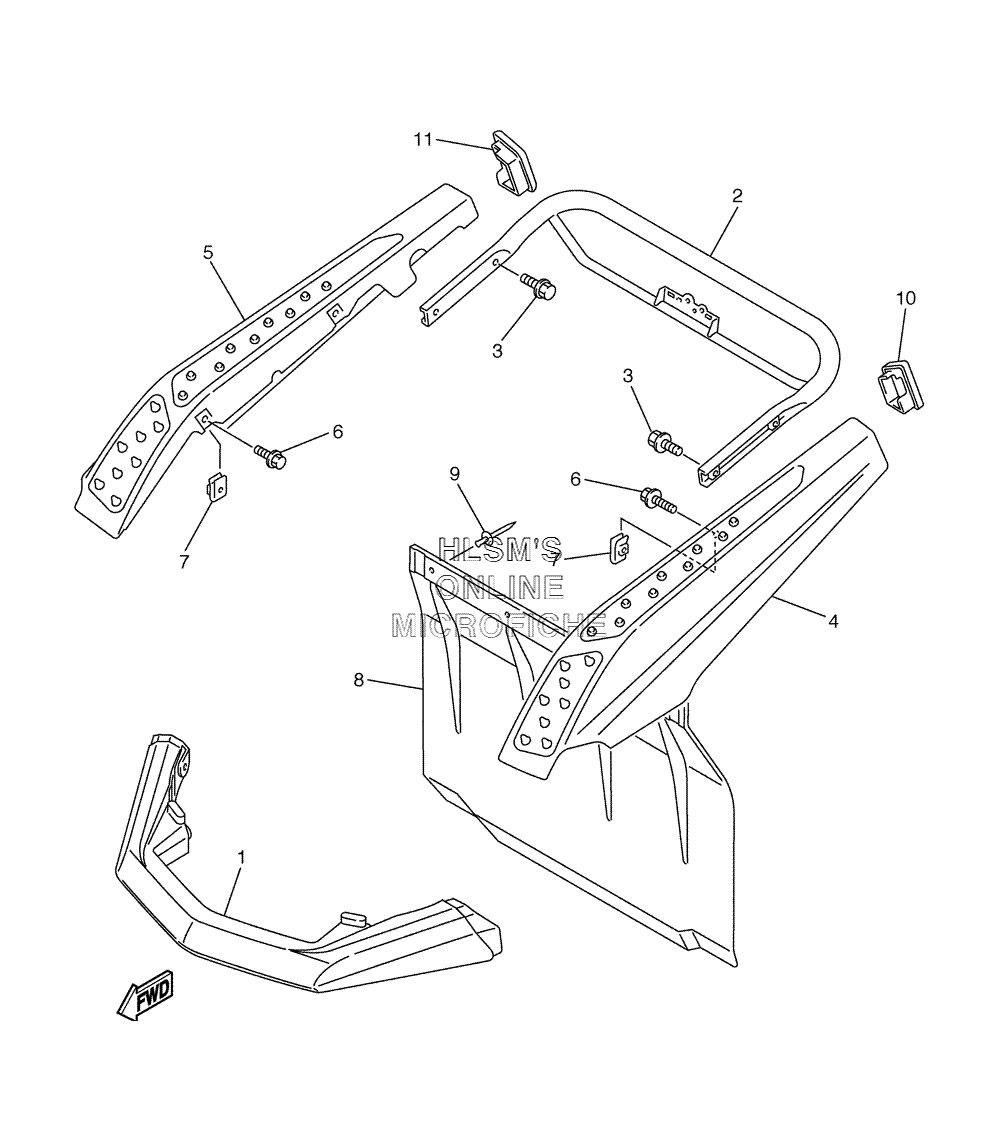

BUMPER - FRONT AND REAR для Yamaha SX VIPER MOUNTAIN - 2005 года выпуска`
-
№АртикулНазвание
-
18EK-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
28EN-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
395027-08016-00 BOLT, FLANGEBOLT, FLANGE
-
48ED-77542-01-00 BUMPER, REAR 2BUMPER, REAR 2
-
58ED-77543-01-00 BUMPER, REAR 3BUMPER, REAR 3
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88ED-K7595-01-00 FLAPFLAP
-
990267-47187-00 RIVET, BLINDRIVET, BLIND
-
108EN-77563-00-00 COVER, 3COVER, 3
-
118EN-77564-00-00 COVER, 4COVER, 4
