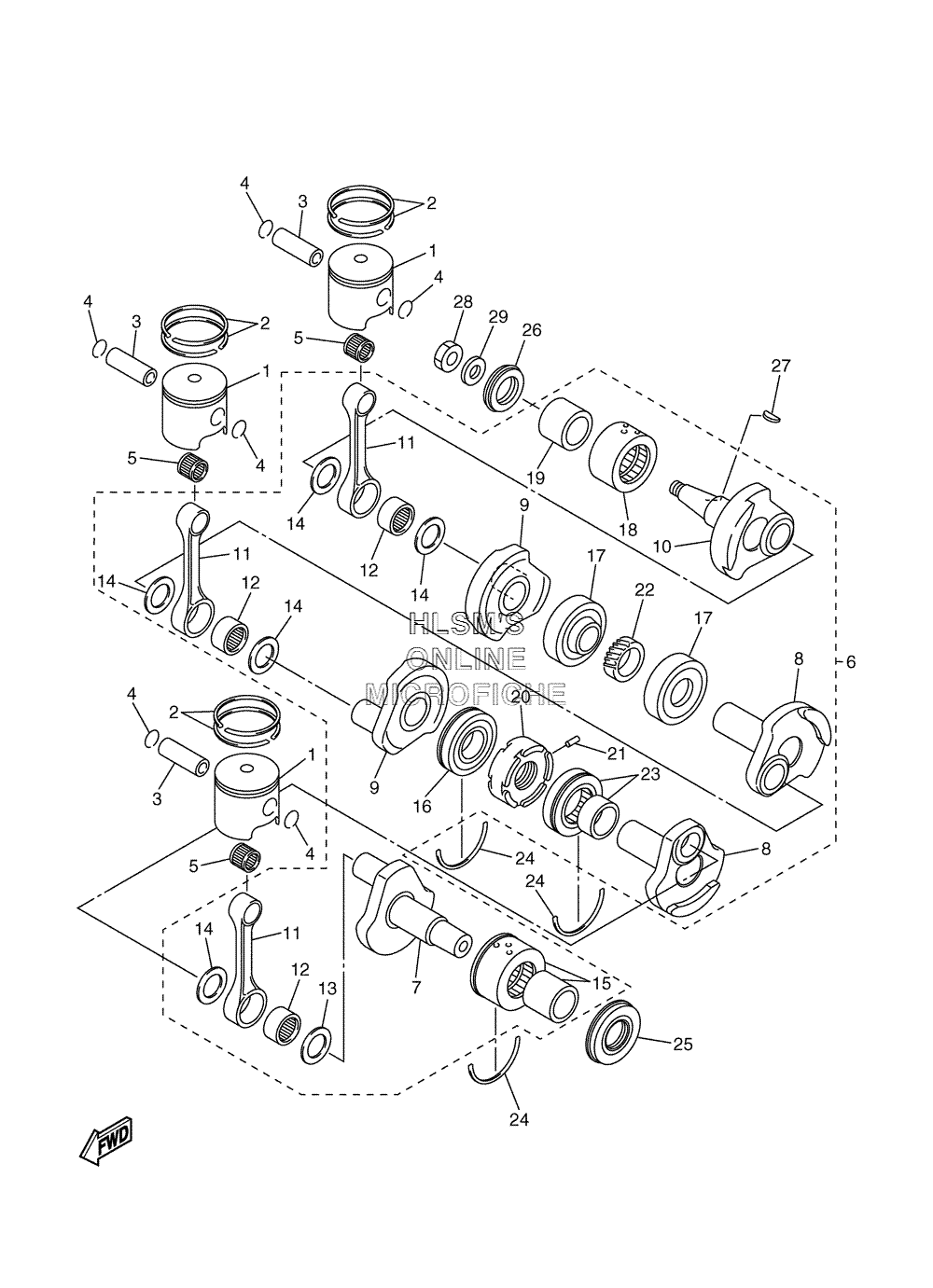

CRANKSHAFT W/ PISTON ASSY для Yamaha SX VIPER MOUNTAIN - 2005 года выпуска`
-
№АртикулНазвание
-
18EK-11631-00-A0 PISTON (STD)PISTON (STD)
-
28DN-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
38J0-11633-00-00 PIN, PISTONPIN, PISTON
-
493450-21053-00 CIRCLIP, INNERCIRCLIP, INNER
-
593310-32009-00 BEARINGBEARING
-
68EK-11400-00-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
78EK-11412-00-00 ...CRANK 1...CRANK 1
-
88EK-11422-00-00 ...CRANK 2...CRANK 2
-
98EK-11432-00-00 ...CRANK 3...CRANK 3
-
108EK-11442-00-00 ...CRANK 4...CRANK 4
-
118DF-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
1293310-5270A-00 ...BEARING...BEARING
-
138CH-11685-00-00 ...WASHER, CRANK PIN...WASHER, CRANK PIN
-
1490201-272U2-00 ...WASHER, PLATE...WASHER, PLATE
-
158DN-11415-00-00 ...BEARING ASSY. 1...BEARING ASSY. 1
-
1693306-20723-00 ...BEARING...BEARING
-
1793306-20722-00 ...BEARING...BEARING
-
1893390-00028-00 ...BEARING...BEARING
-
198DF-1142A-01-00 ...BEARING...BEARING
-
208DF-11515-00-00 ...SEAL, LABYRINTH 1...SEAL, LABYRINTH 1
-
2191609-30010-00 ...PIN, SPRING...PIN, SPRING
-
228DF-11434-00-00 ...GEAR, CRANK SHAFT...GEAR, CRANK SHAFT
-
238DF-11436-00-00 ...BEARING ASSY. 3...BEARING ASSY. 3
-
2493440-72049-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
2593103-34181-00 OIL SEALOIL SEAL
-
2693103-32153-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
2790280-05033-00 KEY, WOODRUFFKEY, WOODRUFF
-
2890170-16425-00 NUTNUT
-
2992907-16600-00 WASHERWASHER
