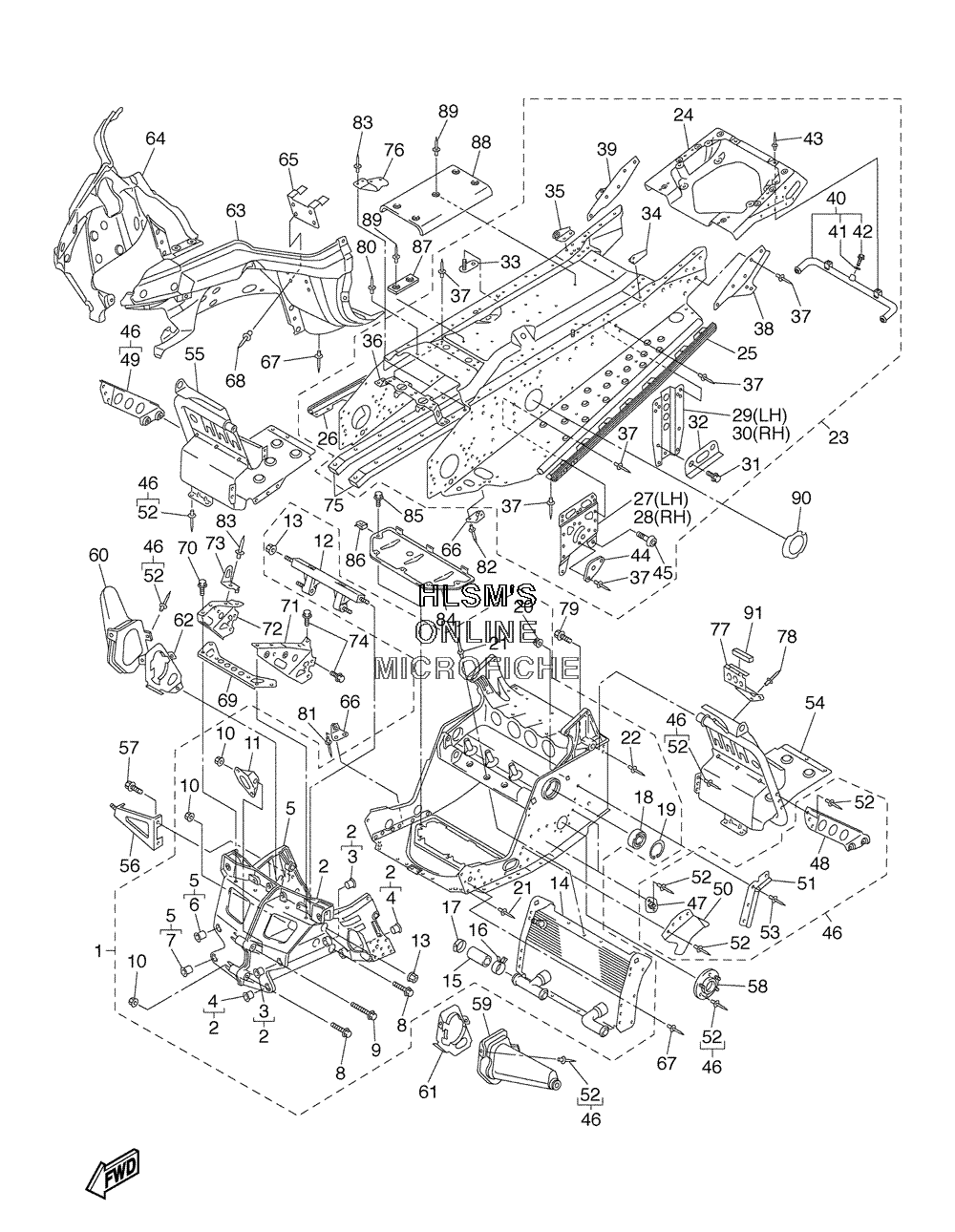

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RX-1 - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-21940-02-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-00-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-00-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
148FA-12440-00-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY....HOSE CLAMP ASSY.
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
2290267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
238FU-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
248FA-W2199-01-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
258FU-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
268FU-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
278FU-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
288FU-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
298FU-21944-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
308FU-21954-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
3195817-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
328FU-21988-01-00 ...PATCH 8...PATCH 8
-
338CR-2194N-00-00 ...BRACKET, FUEL TANK...BRACKET, FUEL TANK
-
348FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
358FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
368FA-2194H-01-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3790267-47195-00 ...RIVET, BLIND (QTY:120)...RIVET, BLIND (QTY:120)
-
388FU-21963-00-00 ...PATCH 3...PATCH 3
-
398FU-21964-00-00 ...PATCH 4...PATCH 4
-
408FU-1241A-00-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
4190210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
4295817-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4390267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
448FU-21919-00-00 ...BRACKET, MAIN TRACK...BRACKET, MAIN TRACK
-
4592014-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
468FU-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
478CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
488FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
498FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
508FU-2198G-00-00 ...COVER 2...COVER 2
-
518FA-21999-00-00 ......CLAMP, WIRE HARNESS......CLAMP, WIRE HARNESS
-
5290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5390267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
548FU-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
558FU-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
568FA-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
5795827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
588EK-21920-01-00 HOUSING, REINF SUB-ASSY. (L.H)HOUSING, REINF SUB-ASSY. (L.H)
-
598FU-2198F-00-00 COVER 1COVER 1
-
608FU-2198J-00-00 COVER 3COVER 3
-
618FU-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
628FU-2195F-00-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
638FA-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
648FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
658FA-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
668FA-2196F-00-00 BRACKET 3BRACKET 3
-
6790267-48018-00 RIVET, BLINDRIVET, BLIND
-
6890267-47200-00 RIVET, BLINDRIVET, BLIND
-
698FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7095827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
718FU-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
728FU-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
738FA-77125-00-00 STAY 1STAY 1
-
7495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
758FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
768FU-2197N-00-00 BRACKET 7BRACKET 7
-
778FA-21973-00-00 HOOKHOOK
-
7890267-47195-00 RIVET, BLINDRIVET, BLIND
-
7995827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8090267-48169-00 RIVET, BLINDRIVET, BLIND
-
8190267-48083-00 RIVET, BLINDRIVET, BLIND
-
8290267-48095-00 RIVET, BLINDRIVET, BLIND
-
8390267-47195-00 RIVET, BLINDRIVET, BLIND
-
848FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
8590109-065F3-00 BOLTBOLT
-
8690183-06053-00 NUT, SPRINGNUT, SPRING
-
878FA-21998-00-00 SPACERSPACER
-
888FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8990267-48059-00 RIVET, BLINDRIVET, BLIND
-
908FU-474AA-00-00 GRAPHIC, 1GRAPHIC, 1
-
918CR-77319-00-00 DAMPER 1DAMPER 1
