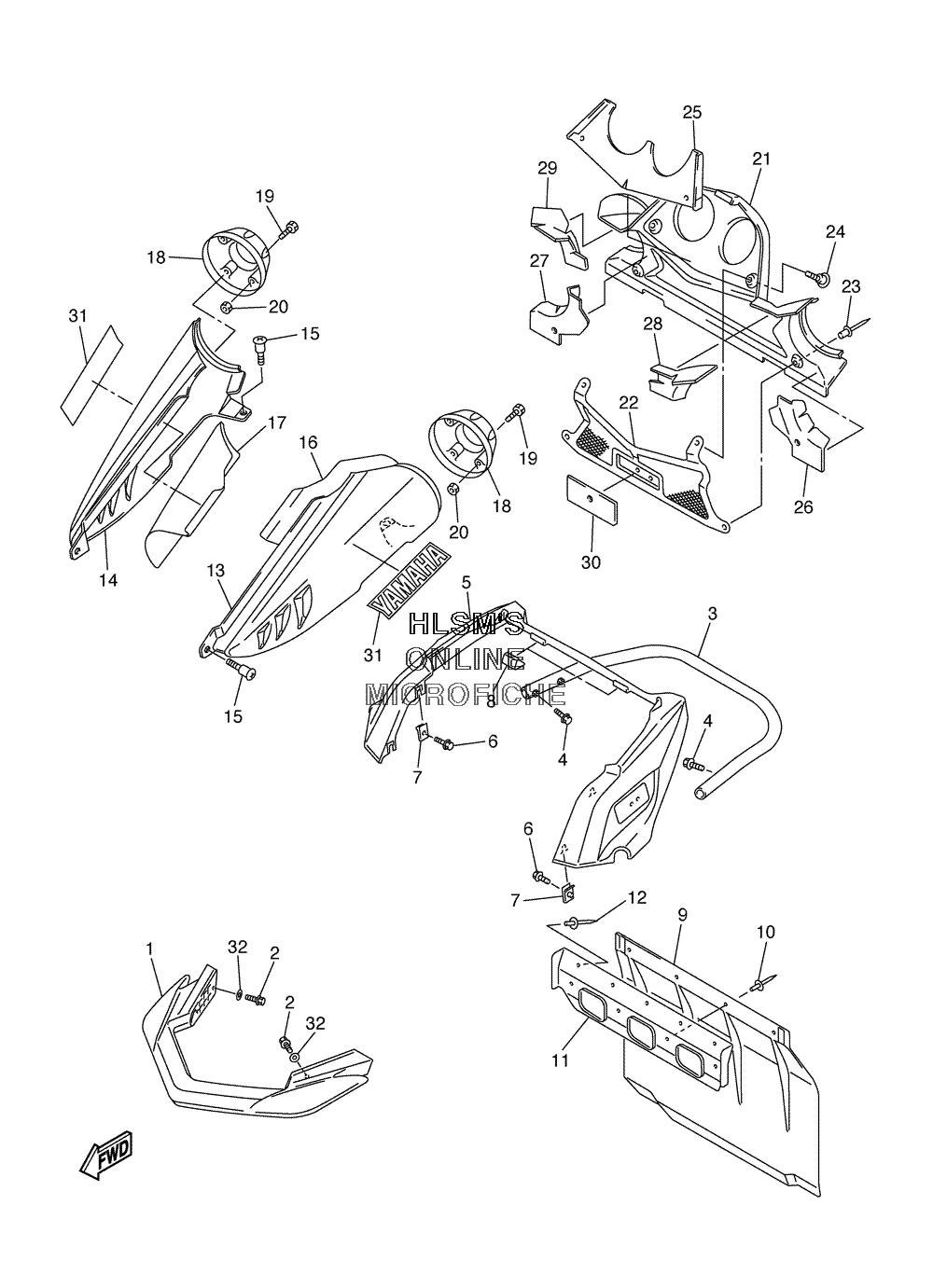

BUMPER - FRONT AND REAR для Yamaha RX-1 - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38FA-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
88FA-7717H-00-00 TAPE 4TAPE 4
-
98ED-K7595-01-00 FLAPFLAP
-
1090267-47187-00 RIVET, BLINDRIVET, BLIND
-
118FU-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
1290267-48095-00 RIVET, BLINDRIVET, BLIND
-
138FA-77551-A0-33 PROTECTOR 1 (BLACK)PROTECTOR 1 (BLACK)
-
148FA-77552-A0-33 PROTECTOR 2 (BLACK)PROTECTOR 2 (BLACK)
-
1590154-06009-00 SCREW, BINDINGSCREW, BINDING
-
168FA-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
178FA-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
188FA-77517-10-00 CAPCAP
-
1991314-06014-00 BOLTBOLT
-
2095307-06600-00 NUTNUT
-
218FA-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
228FA-77553-00-00 PROTECTOR 3PROTECTOR 3
-
2390267-47187-00 RIVET, BLINDRIVET, BLIND
-
2490154-06009-00 SCREW, BINDINGSCREW, BINDING
-
258FA-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
268FA-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
278FA-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
288FA-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
298FA-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
308FA-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
3199241-00160-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
328FU-77525-00-00 WASHER 1WASHER 1
