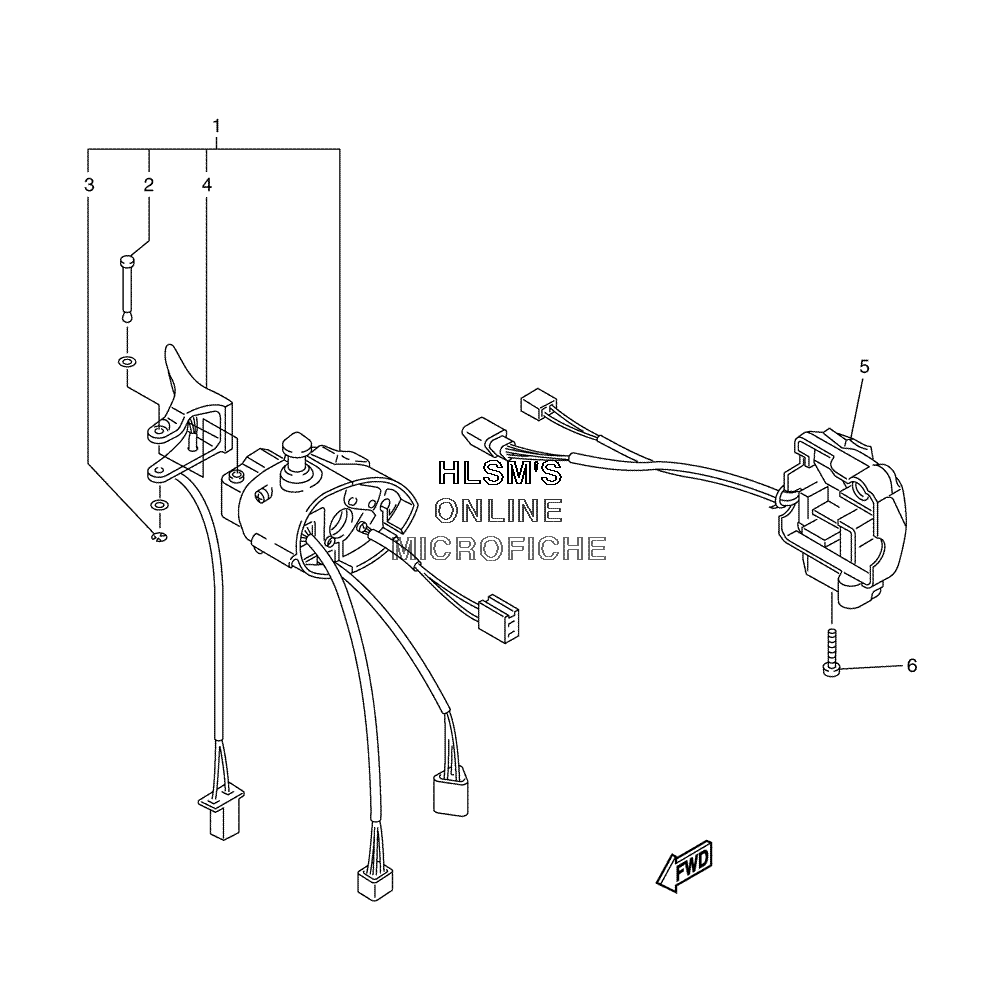

HANDLEBAR - SWITCHES AND LEVERS для Yamaha RX-1 - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-82720-01-00 LEVER HOLDER ASSY. (RIGHT)LEVER HOLDER ASSY. (RIGHT)
-
28R6-8399F-00-00 ...SHAFT...SHAFT
-
399001-04600-00 ...CIRCLIP...CIRCLIP
-
48FA-82970-00-00 ...THUMB WARMER ASSY....THUMB WARMER ASSY.
-
58FA-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
698507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
