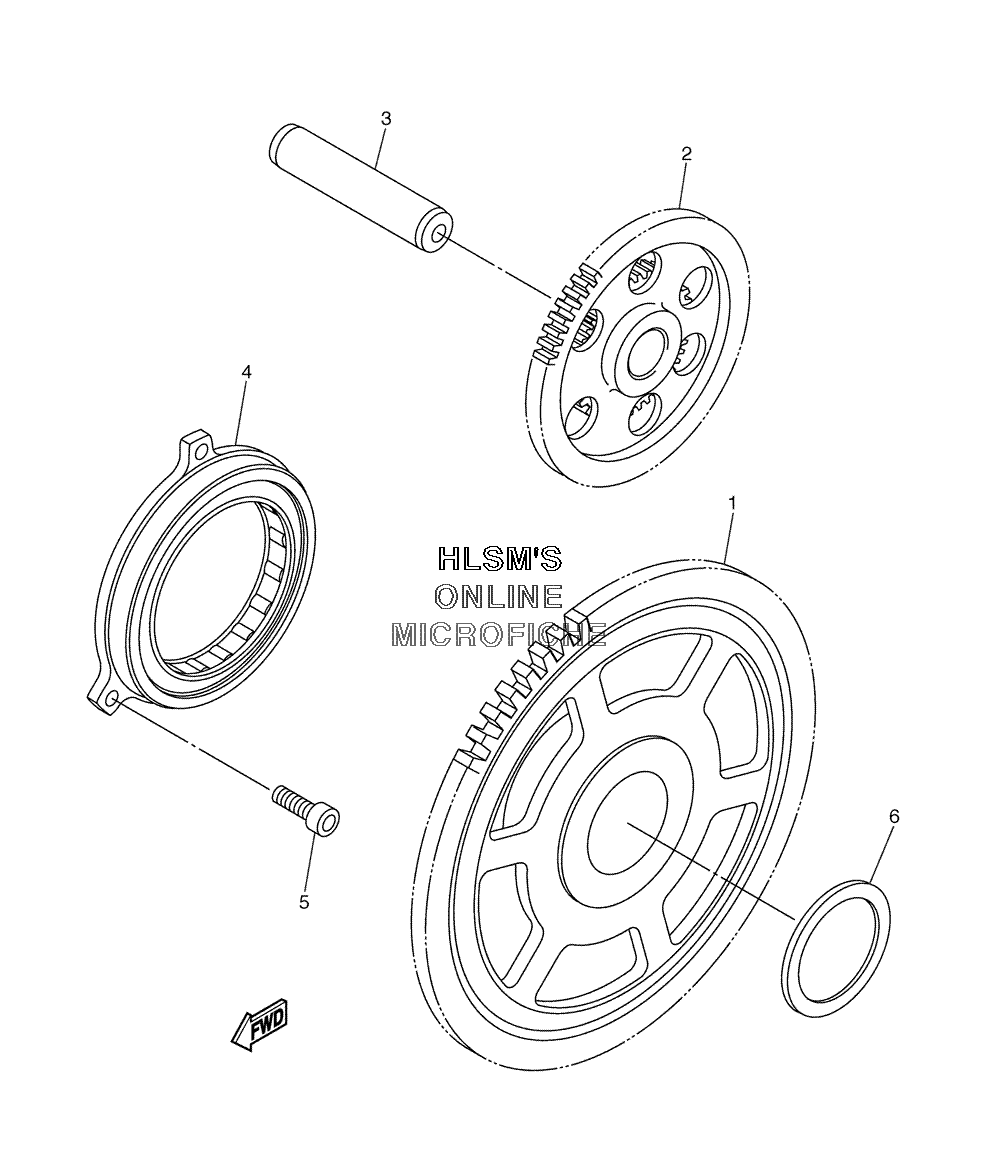

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha RS VENTURE 2-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-15515-00-00 GEAR 3GEAR 3
-
28ES-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
38ES-15521-00-00 SHAFT 1SHAFT 1
-
48ES-15590-00-00 STARTER ONE-WAY ASSY.STARTER ONE-WAY ASSY.
-
590110-06004-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690201-30013-00 WASHER, PLATEWASHER, PLATE
