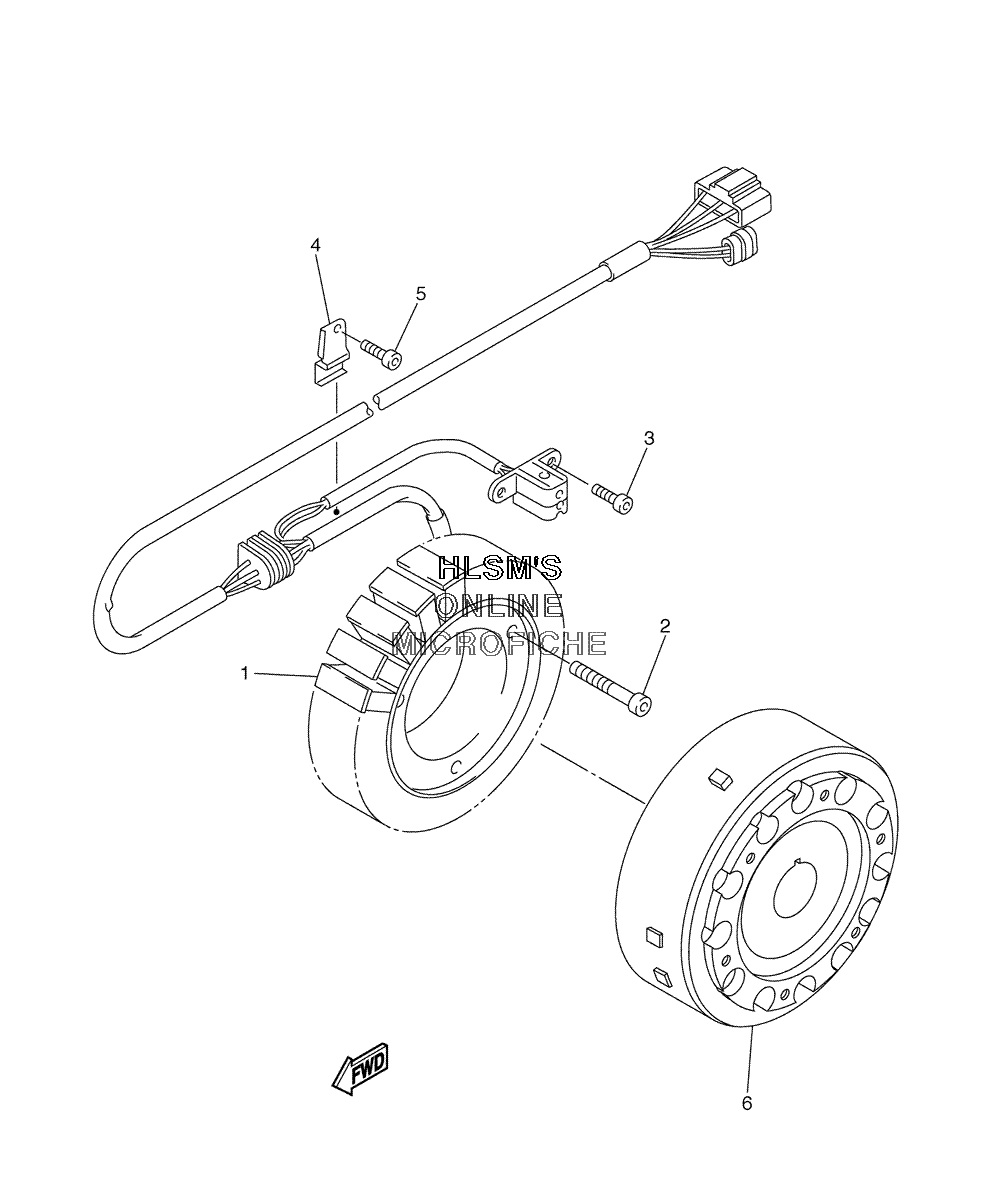

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha RS VENTURE 2-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
18ES-81410-00-00 STATOR ASSY.STATOR ASSY.
-
290110-06042-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390110-05011-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
48FA-15113-00-00 PLATEPLATE
-
590110-06226-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68ES-81450-00-00 ROTOR ASSY.ROTOR ASSY.
