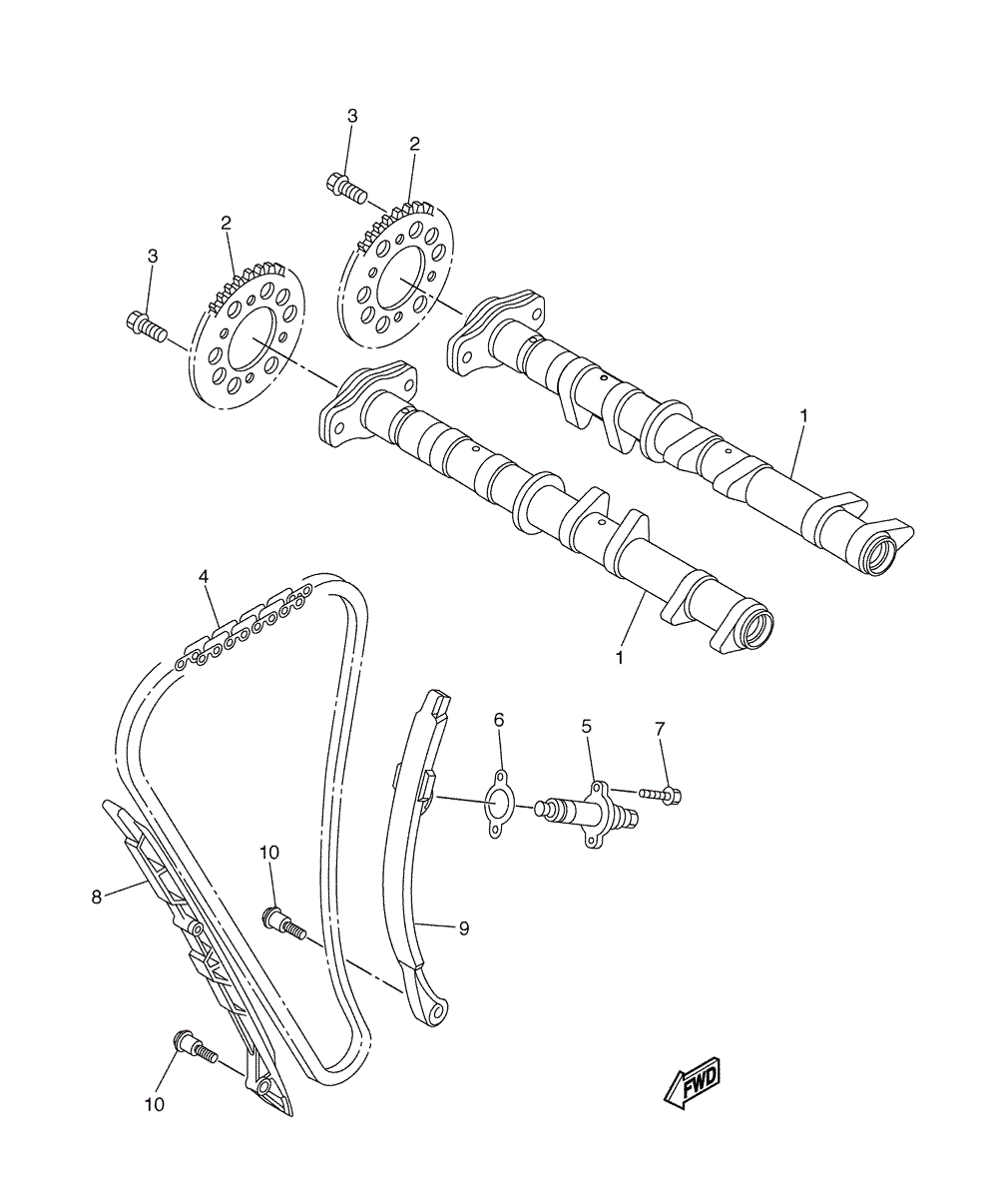

CAMSHAFT W/ CAMSHAFT CHAIN ASSY для Yamaha RS VENTURE 2-PASS - 2005 года выпуска`
-
№АртикулНазвание
-
18ES-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
28ES-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
494591-59140-00 CHAINCHAIN
-
58ES-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
64FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
795027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
88ES-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
98ES-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1090109-06065-00 BOLTBOLT
