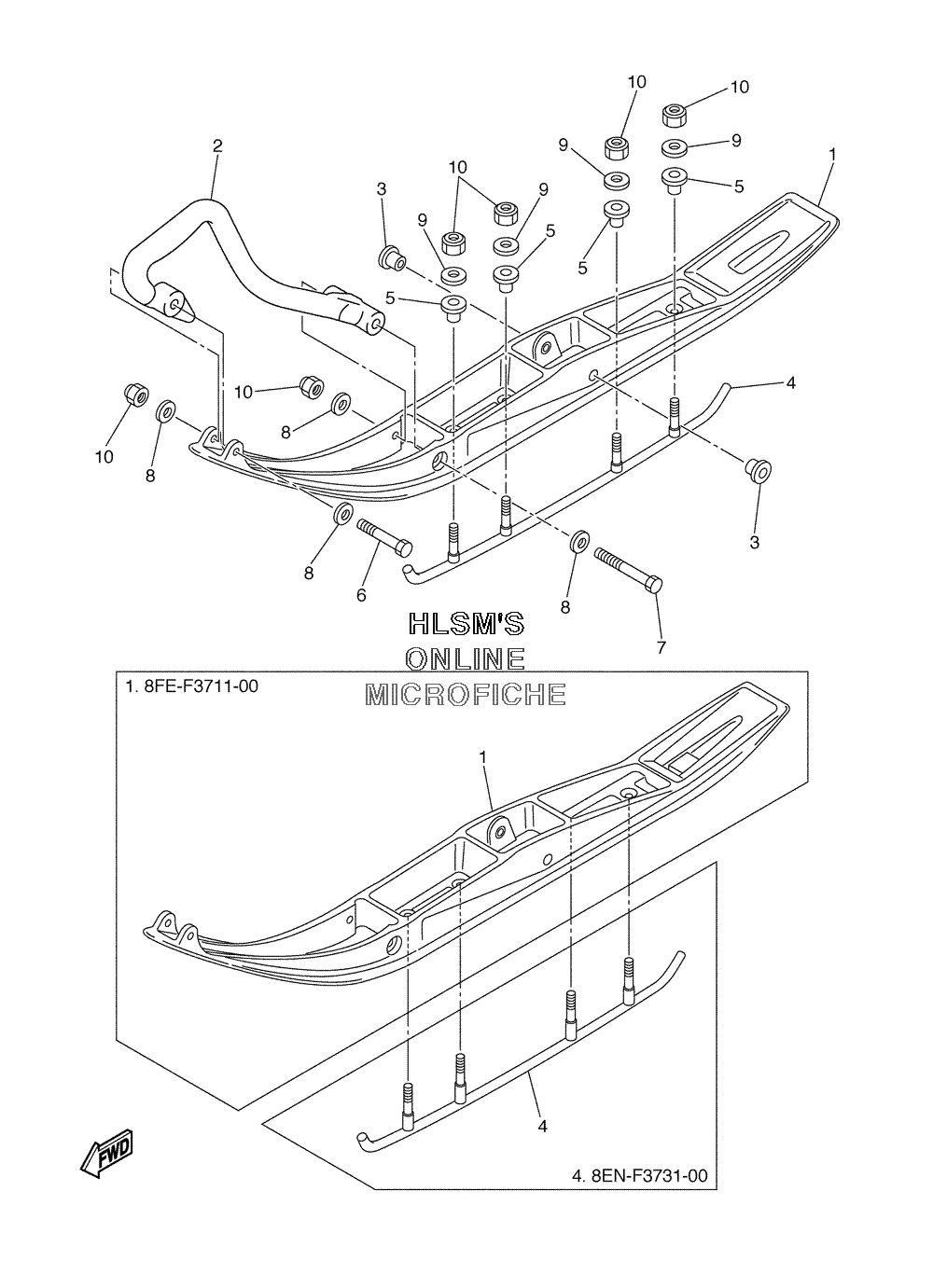

SUSPENSION - ALTERNATE SKI для Yamaha RS VECTOR - 2005 года выпуска`
-
№АртикулНазвание
-
18EX-F3711-00-00 SKI 1 (OPT)SKI 1 (OPT)
-
18FE-F3711-00-00 SKI 1 (OPT)SKI 1 (OPT)
-
28EK-F3712-00-00 HANDLE, PLASTIC BLUE (OPT)HANDLE, PLASTIC BLUE (OPT)
-
38EX-F3754-00-00 COLLAR, 1 (OPT)COLLAR, 1 (OPT)
-
48EK-F3731-00-00 RUNNER 1 (OPT)RUNNER 1 (OPT)
-
48EN-F3731-00-00 RUNNER 1 (OPT)RUNNER 1 (OPT)
-
58EK-F3751-00-00 BUSH, SKI 1 (OPT)BUSH, SKI 1 (OPT)
-
69702M-08055-00 BOLT (OPT)BOLT (OPT)
-
79702M-08100-00 BOLT (OPT)BOLT (OPT)
-
890201-08784-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
990201-086P8-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
109570M-08300-00 NUT, NYLON (OPT)NUT, NYLON (OPT)
