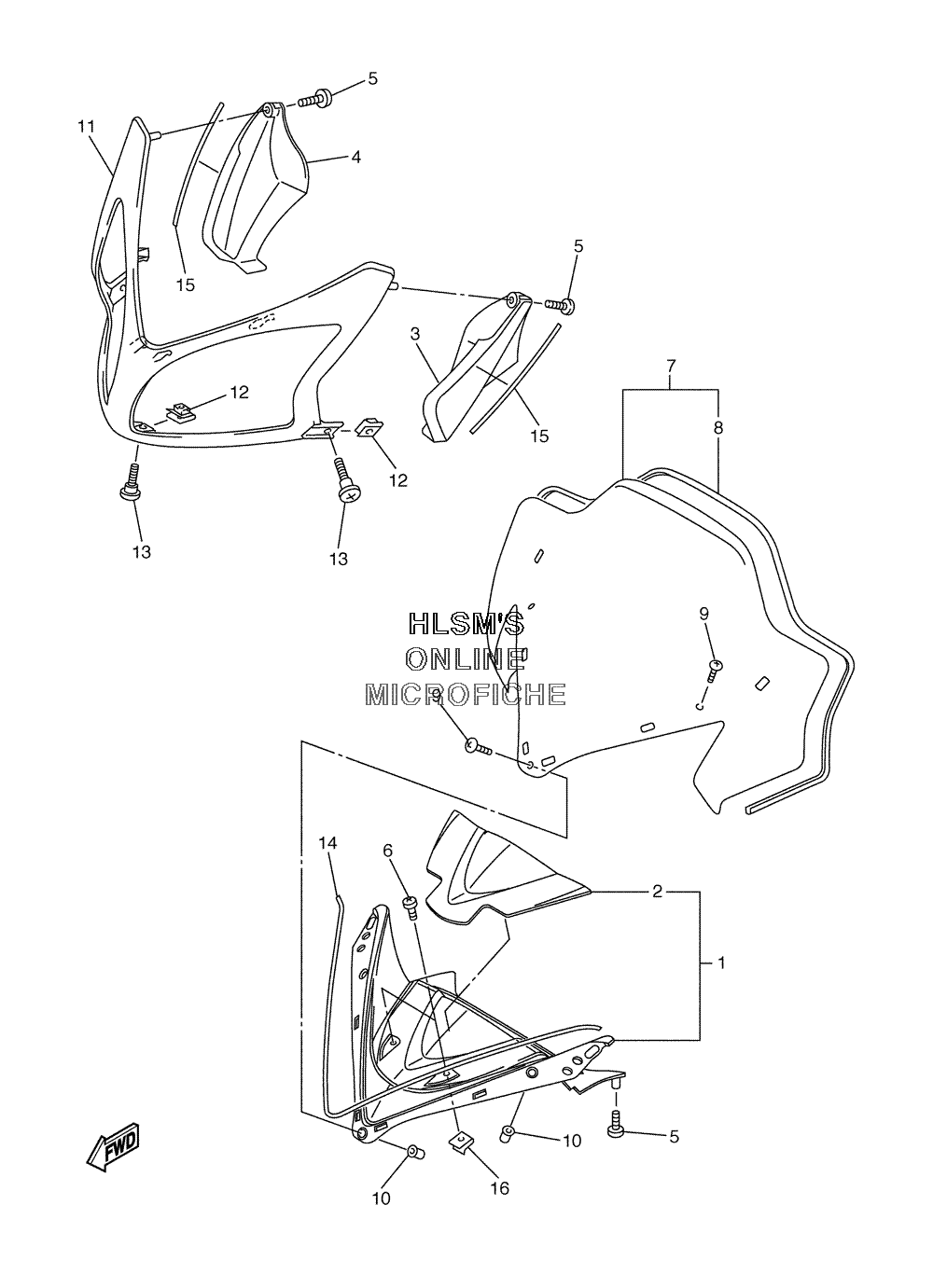

HOOD - WINDSHIELD ASSY для Yamaha RS VECTOR - 2005 года выпуска`
-
№АртикулНазвание
-
18ES-W7725-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28ES-77198-00-00 ...DAMPER 1...DAMPER 1
-
38FA-77185-00-00 PLATE 1PLATE 1
-
48FA-77186-00-00 PLATE 2PLATE 2
-
597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
698907-06014-00 SCREW, BINDSCREW, BIND
-
78FJ-K7210-10-00 WINDSHIELD, CLR W/BWINDSHIELD, CLR W/B
-
88FJ-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
990150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1090179-05523-00 NUTNUT
-
118FA-77231-A0-33 FAIRING (BLACK)FAIRING (BLACK)
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
148FA-77214-00-00 TRIM, LOWERTRIM, LOWER
-
158FA-77215-00-00 TRIM 3TRIM 3
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CARBURETOR ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- • HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE KIT (OPTION)
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - ALTERNATE SKI
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
