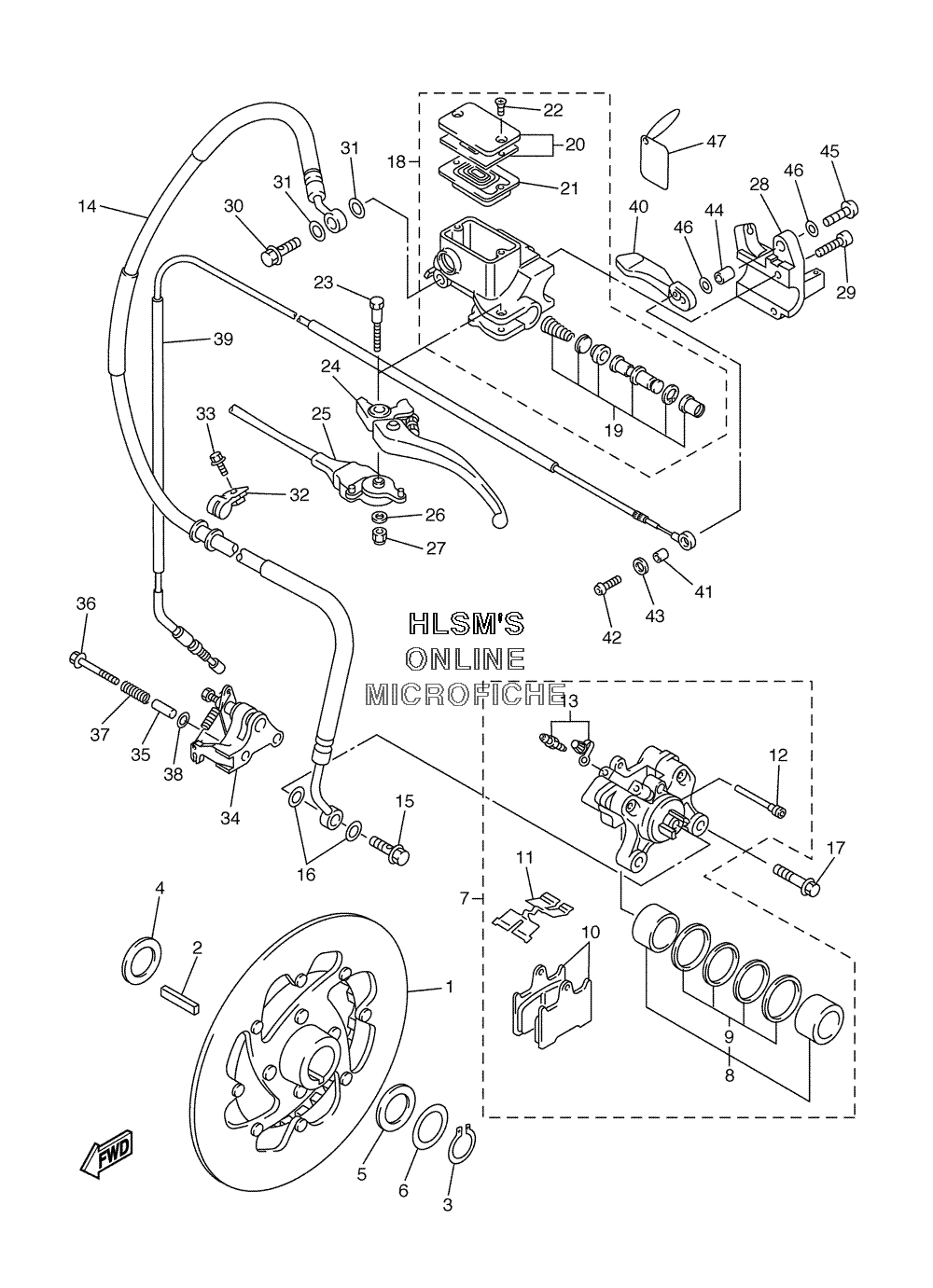

BRAKE ASSY для Yamaha RS VECTOR - 2005 года выпуска`
-
№АртикулНазвание
-
18FA-2581T-00-00 DISK BRAKE ASSY.DISK BRAKE ASSY.
-
290281-07004-00 KEY, SLIDINGKEY, SLIDING
-
399009-24400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
490201-25289-00 WASHER, PLATE (T=1.6)WASHER, PLATE (T=1.6)
-
590201-25527-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
690201-252F1-00 WASHER, PLATE (T0.5)WASHER, PLATE (T0.5)
-
78FA-2580T-00-00 CALIPER ASSY. (LEFT)CALIPER ASSY. (LEFT)
-
88CR-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
98CR-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
108FA-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
118DJ-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
128CR-25924-00-00 ...PIN, PAD...PIN, PAD
-
138CR-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
148ES-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1590401-10159-00 BOLT, UNIONBOLT, UNION
-
1690201-10118-00 WASHER, PLATEWASHER, PLATE
-
1790105-10634-00 BOLT, FLANGEBOLT, FLANGE
-
188EN-W2587-00-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
198CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
208CR-W2585-00-00 ...RESERVOIR CAP SET...RESERVOIR CAP SET
-
2155U-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
2298706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
238CR-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
248CR-83912-00-00 LEVER 1LEVER 1
-
258CR-82530-01-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
268CR-8398X-00-00 WASHER, PLAINWASHER, PLAIN
-
2795707-05300-00 NUT, FLANGENUT, FLANGE
-
288FA-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
2991316-06022-00 BOLTBOLT
-
3090401-10159-00 BOLT, UNIONBOLT, UNION
-
3190201-10118-00 WASHER, PLATEWASHER, PLATE
-
328FA-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3390109-063F1-00 BOLTBOLT
-
348FA-25970-00-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
3590387-06058-00 COLLARCOLLAR
-
3690111-06042-00 BOLTBOLT
-
3790501-120A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3890201-12161-00 WASHER, PLATEWASHER, PLATE
-
398ES-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
408FA-83922-00-00 LEVER 2LEVER 2
-
4190387-06043-00 COLLARCOLLAR
-
4292017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390201-06050-00 WASHER, PLATEWASHER, PLATE
-
4490387-081M9-00 COLLARCOLLAR
-
4592017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4690201-08403-00 WASHER, PLATEWASHER, PLATE
-
478CR-23496-00-00 TAG, CAUTIONTAG, CAUTION
