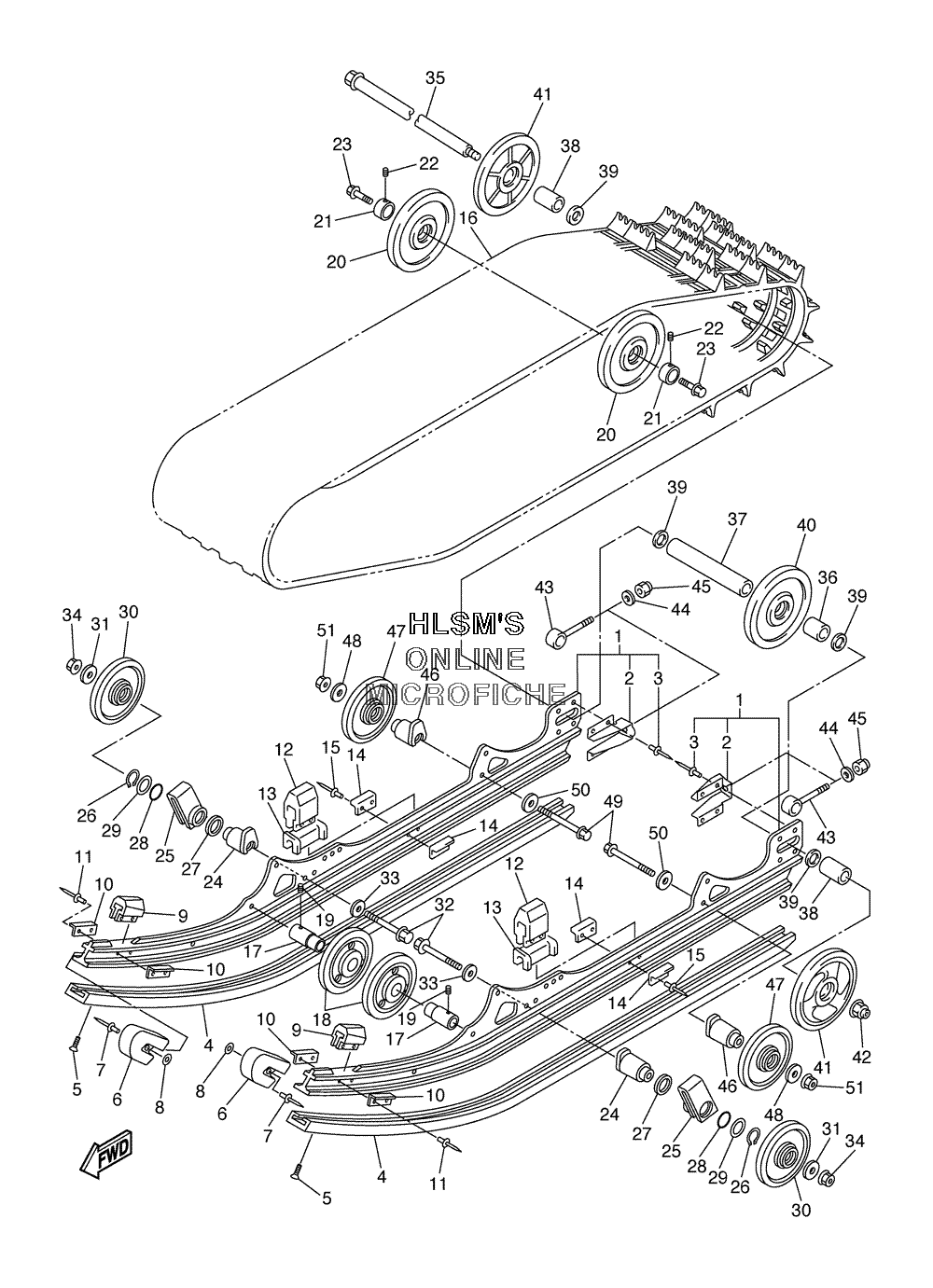

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VECTOR MOUNTAIN - 2005 года выпуска`
-
№АртикулНазвание
-
18FK-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48FK-47421-00-00 RUNNER, SLIDE 151 BLACKRUNNER, SLIDE 151 BLACK
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLINDRIVET, BLIND
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168EP-47110-00-00 TRACK ASSY.TRACK ASSY.
-
178ES-47319-00-00 COLLARCOLLAR
-
188ES-47310-10-00 SUSPENSION WHEEL ASSY.SUSPENSION WHEEL ASSY.
-
1990113-06039-00 BOLT, SETBOLT, SET
-
208CR-47550-00-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
218ES-47365-00-00 COLLAR 1COLLAR 1
-
2290113-06039-00 BOLT, SETBOLT, SET
-
2390109-10771-00 BOLTBOLT
-
248ES-47419-10-00 BRACKET 7BRACKET 7
-
258ES-47446-00-00 HOOK 1HOOK 1
-
2699009-35400-00 CIRCLIPCIRCLIP
-
2793210-35537-00 O-RINGO-RING
-
2893210-34504-00 .O-RING.O-RING
-
2990201-35013-00 WASHER, PLATEWASHER, PLATE
-
308ES-47310-00-00 SUSPENSION WHEEL ASSY.SUSPENSION WHEEL ASSY.
-
3190201-104A7-00 WASHER, PLATEWASHER, PLATE
-
3295817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
358L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3690387-20015-00 COLLARCOLLAR
-
3790387-20016-00 COLLARCOLLAR
-
3890387-20019-00 COLLARCOLLAR
-
3990201-205R6-00 WASHER, PLATEWASHER, PLATE
-
408CR-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
418EK-47550-10-00 GUIDE WHEEL ASSY. FOR TEAM YAMAHA BLUE/WHITEGUIDE WHEEL ASSY. FOR TEAM YAMAHA BLUE/WHITE
-
418EK-47550-20-00 GUIDE WHEEL ASSY. FOR HEAT RED AND SILVER 3GUIDE WHEEL ASSY. FOR HEAT RED AND SILVER 3
-
4295607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
438DM-47479-00-00 COLLAR 3COLLAR 3
-
4492907-10600-00 WASHER, PLATEWASHER, PLATE
-
4595707-10300-00 NUT, FLANGENUT, FLANGE
-
468ES-47419-00-00 BRACKET 7BRACKET 7
-
478ES-47310-00-00 SUSPENSION WHEEL ASSY.SUSPENSION WHEEL ASSY.
-
4890201-104A7-00 WASHER, PLATEWASHER, PLATE
-
4995817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
5090201-106F2-00 WASHER, PLATEWASHER, PLATE
-
5195607-10200-00 NUT, U FLANGENUT, U FLANGE
