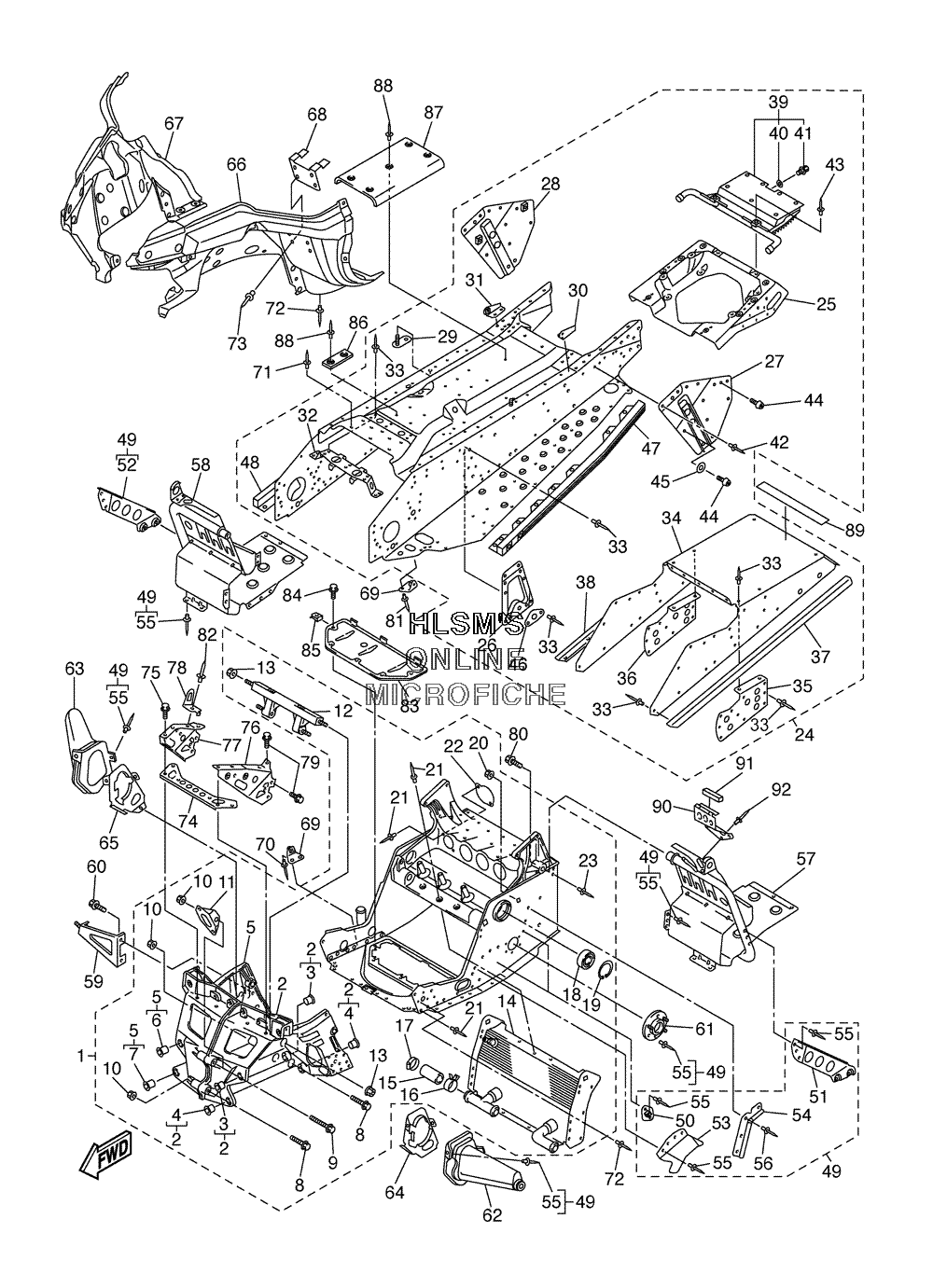

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VECTOR MOUNTAIN - 2005 года выпуска
-
№АртикулНазвание
-
18FK-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-10-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-W2198-10-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16001-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118FA-2128A-00-00 ...BRACKET, REGULATOR...BRACKET, REGULATOR
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
148EP-12440-00-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
158FA-12551-00-00 ...HOSE 7...HOSE 7
-
1690467-28046-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
1790450-35001-00 ...HOSE CLAMP ASSY....HOSE CLAMP ASSY.
-
1893306-20650-00 ...BEARING...BEARING
-
1999009-62500-00 ...CIRCLIP...CIRCLIP
-
2095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2190267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
228ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2390267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
248FK-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268FK-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
278FK-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
288FK-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
298CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
308FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
318FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
328ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3390267-47195-00 ...RIVET, BLIND (QTY:128)...RIVET, BLIND (QTY:128)
-
348FW-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
358EP-21963-00-00 ...PATCH 3...PATCH 3
-
368EP-21964-00-00 ...PATCH 4...PATCH 4
-
378FK-2111J-00-00 ...MEMBER, SIDE 1...MEMBER, SIDE 1
-
388FK-2111K-00-00 ...MEMBER, SIDE 2...MEMBER, SIDE 2
-
398FW-1241A-00-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
4090210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
4195817-06012-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4290267-47197-00 ...,RIVET, BLIND...,RIVET, BLIND
-
4390267-48095-00 ...RIVET, BLIND...RIVET, BLIND
-
4492017-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
4590201-104A7-00 ...WASHER, PLATE...WASHER, PLATE
-
468FK-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
478FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
488FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
498FK-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
508CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
518FU-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
528FU-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
538FU-2198G-00-00 ...COVER 2...COVER 2
-
548FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
5590267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
5690267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
578FU-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
588FU-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
598ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6095827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
618EK-21920-01-00 HOUSING, REINF SUB-ASSY. (L.H)HOUSING, REINF SUB-ASSY. (L.H)
-
628FU-2198F-00-00 COVER 1COVER 1
-
638FU-2198J-00-00 COVER 3COVER 3
-
648FU-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
658FU-2195F-00-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
668FK-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
678EP-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
688FA-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
698FA-2196F-00-00 BRACKET 3BRACKET 3
-
7090267-48083-00 RIVET, BLINDRIVET, BLIND
-
7190267-48169-00 RIVET, BLINDRIVET, BLIND
-
7290267-48018-00 RIVET, BLINDRIVET, BLIND
-
7390267-47200-00 RIVET, BLINDRIVET, BLIND
-
748FA-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7595827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
768FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
778FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
788FA-77125-00-00 STAY 1STAY 1
-
7995827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
8095827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8190267-48095-00 RIVET, BLINDRIVET, BLIND
-
8290267-47195-00 RIVET, BLINDRIVET, BLIND
-
838FA-2197E-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
8490109-065F3-00 BOLTBOLT
-
8590183-06053-00 NUT, SPRINGNUT, SPRING
-
868FA-21998-00-00 SPACERSPACER
-
878FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8890267-48059-00 RIVET, BLINDRIVET, BLIND
-
8988X-77762-10-00 LABEL, WARNING 2LABEL, WARNING 2
-
908FA-21973-00-00 HOOKHOOK
-
918CR-77319-00-00 DAMPER 1DAMPER 1
-
9290267-47195-00 RIVET, BLINDRIVET, BLIND
