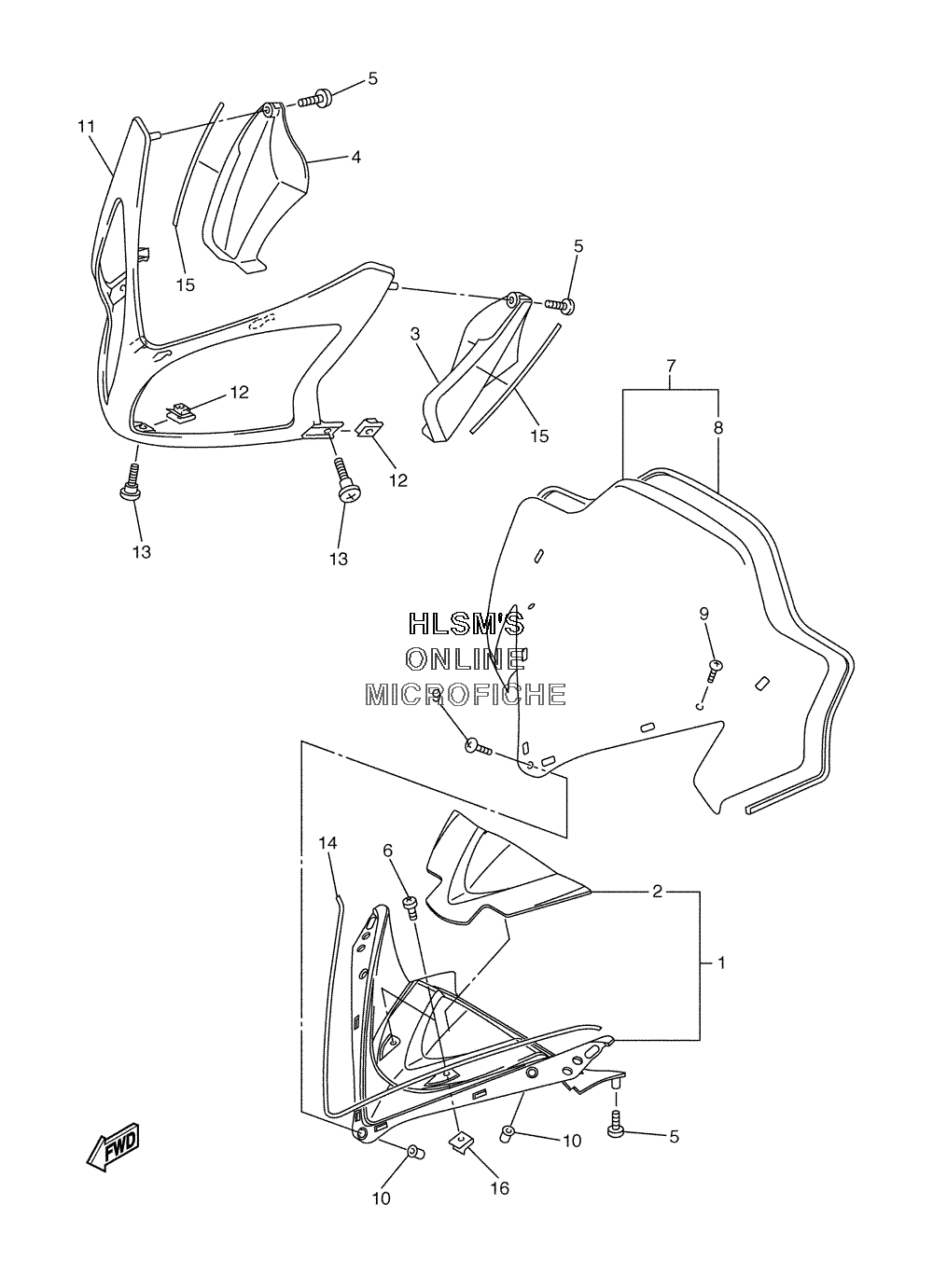

HOOD - WINDSHIELD ASSY для Yamaha RS VECTOR MOUNTAIN - 2005 года выпуска`
-
№АртикулНазвание
-
18ES-W7725-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28ES-77198-00-00 ...DAMPER 1...DAMPER 1
-
38FA-77185-00-00 PLATE 1PLATE 1
-
48FA-77186-00-00 PLATE 2PLATE 2
-
597707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
698907-06014-00 SCREW, BINDSCREW, BIND
-
78FJ-K7210-10-00 WINDSHIELD COMP. FOR TEAM YAMAHA BLUE/WHITE AND HEAT REDWINDSHIELD COMP. FOR TEAM YAMAHA BLUE/WHITE AND HEAT RED
-
78FJ-K7210-00-00 WINDSHIELD COMP. FOR SILVER 3WINDSHIELD COMP. FOR SILVER 3
-
88FJ-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
990150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1090179-05523-00 NUTNUT
-
118FA-77231-A0-33 FAIRING (BLACK FOR TEAM YAMAHA BLUE/WHITE AND SILVER 3)FAIRING (BLACK FOR TEAM YAMAHA BLUE/WHITE AND SILVER 3)
-
118FA-77231-A0-EY FAIRING (HEAT RED)FAIRING (HEAT RED)
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
148FA-77214-00-00 TRIM, LOWERTRIM, LOWER
-
158FA-77215-00-00 TRIM 3TRIM 3
-
1690183-06053-00 NUT, SPRINGNUT, SPRING
