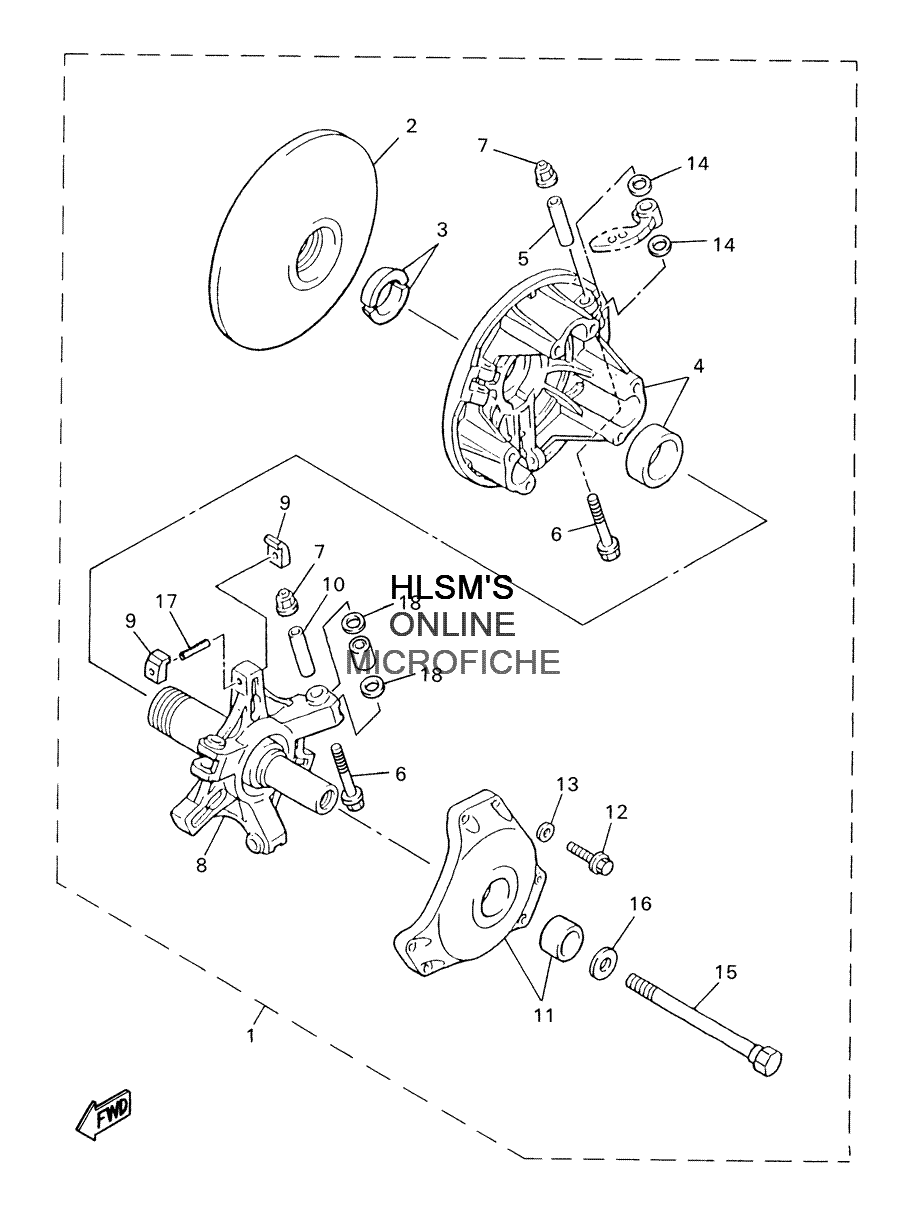

CLUTCH - REPAIR KIT (OPTION) для Yamaha VENTURE 700 - 2004 года выпуска`
-
№АртикулНазвание
-
18DS-W176G-00-00 CLUTCH REPAIR KITCLUTCH REPAIR KIT
-
28CR-17611-01-00 ...SHEAVE, PRIMARY FIXED...SHEAVE, PRIMARY FIXED
-
38V0-17639-00-00 ...STOPPER...STOPPER
-
48BV-17620-11-00 ...PRIMARY SLIDING SHEAVE COMP....PRIMARY SLIDING SHEAVE COMP.
-
590387-0514T-00 ...COLLAR...COLLAR
-
690105-05644-00 ...BOLT, FLANGE...BOLT, FLANGE
-
795607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
88CA-17640-12-00 ...SPIDER COMPLETE...SPIDER COMPLETE
-
98BW-17653-00-00 ...SLIDER...SLIDER
-
1090387-0514U-00 ...COLLAR...COLLAR
-
118DF-17630-00-00 ...PRIMARY SHEAVE CAP COMP....PRIMARY SHEAVE CAP COMP.
-
1297017-06030-00 ...BOLT...BOLT
-
1392907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1490202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
158V0-17647-00-00 ...BOLT (L=156.5MM)...BOLT (L=156.5MM)
-
1692907-16100-00 ...WASHER...WASHER
-
1791609-50032-00 ...PIN, SPRING...PIN, SPRING
-
1890202-09227-00 ...WASHER, PLATE...WASHER, PLATE
