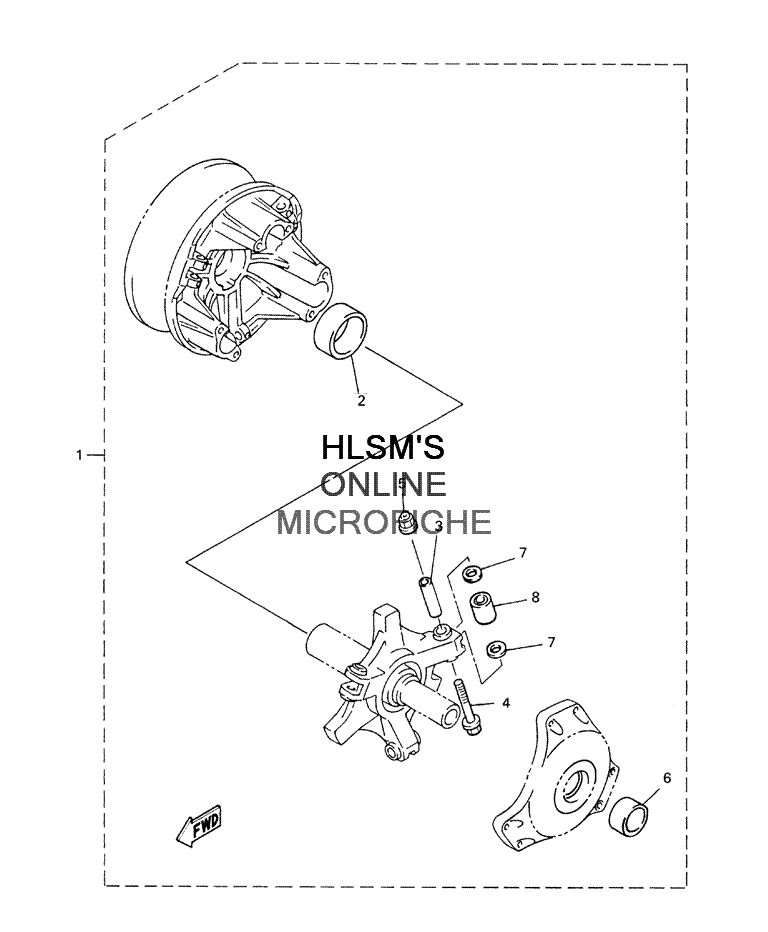

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha VENTURE 700 - 2004 года выпуска`
-
№АртикулНазвание
-
18CS-00000-51-00 CLUTCH TUNE-UP KITCLUTCH TUNE-UP KIT
-
290384-41242-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
390387-0514U-00 ...COLLAR...COLLAR
-
490105-05644-00 ...BOLT, FLANGE...BOLT, FLANGE
-
595607-05200-00 ...NUT, U FLANGE...NUT, U FLANGE
-
690380-28237-00 ...BUSH, SOLID...BUSH, SOLID
-
790202-09227-00 ...WASHER, PLATE...WASHER, PLATE
