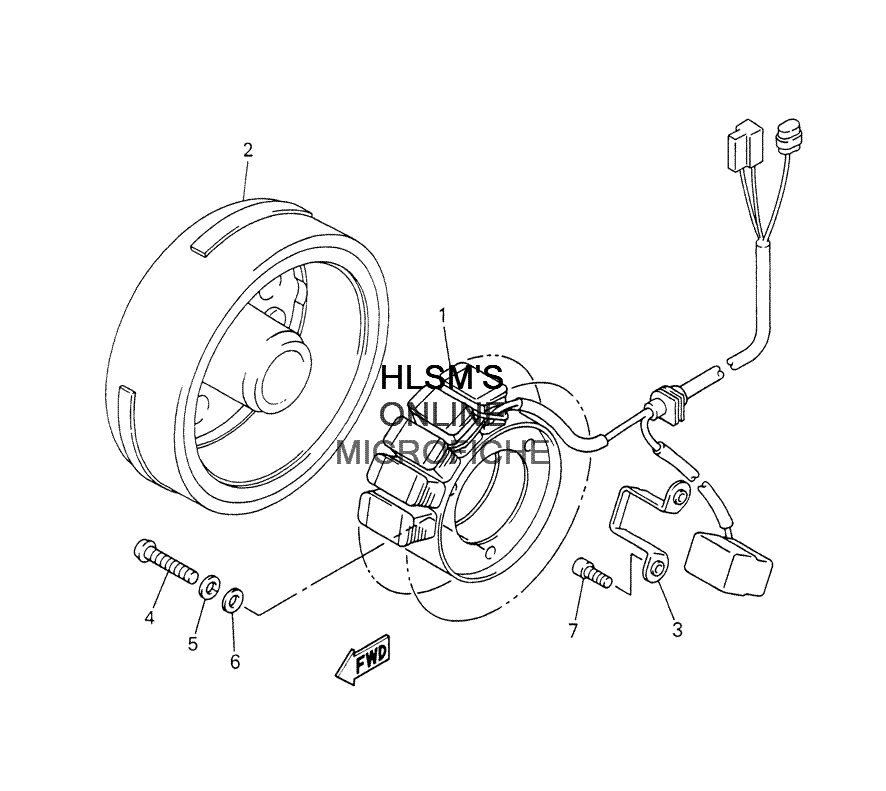

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha VENTURE 700 - 2004 года выпуска`
-
№АртикулНазвание
-
18EK-81410-01-00 STATOR ASSY.STATOR ASSY.
-
28DN-81450-00-00 ROTOR ASSY.ROTOR ASSY.
-
390465-12011-00 CLAMPCLAMP
-
498507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
791317-05014-00 BOLTBOLT
