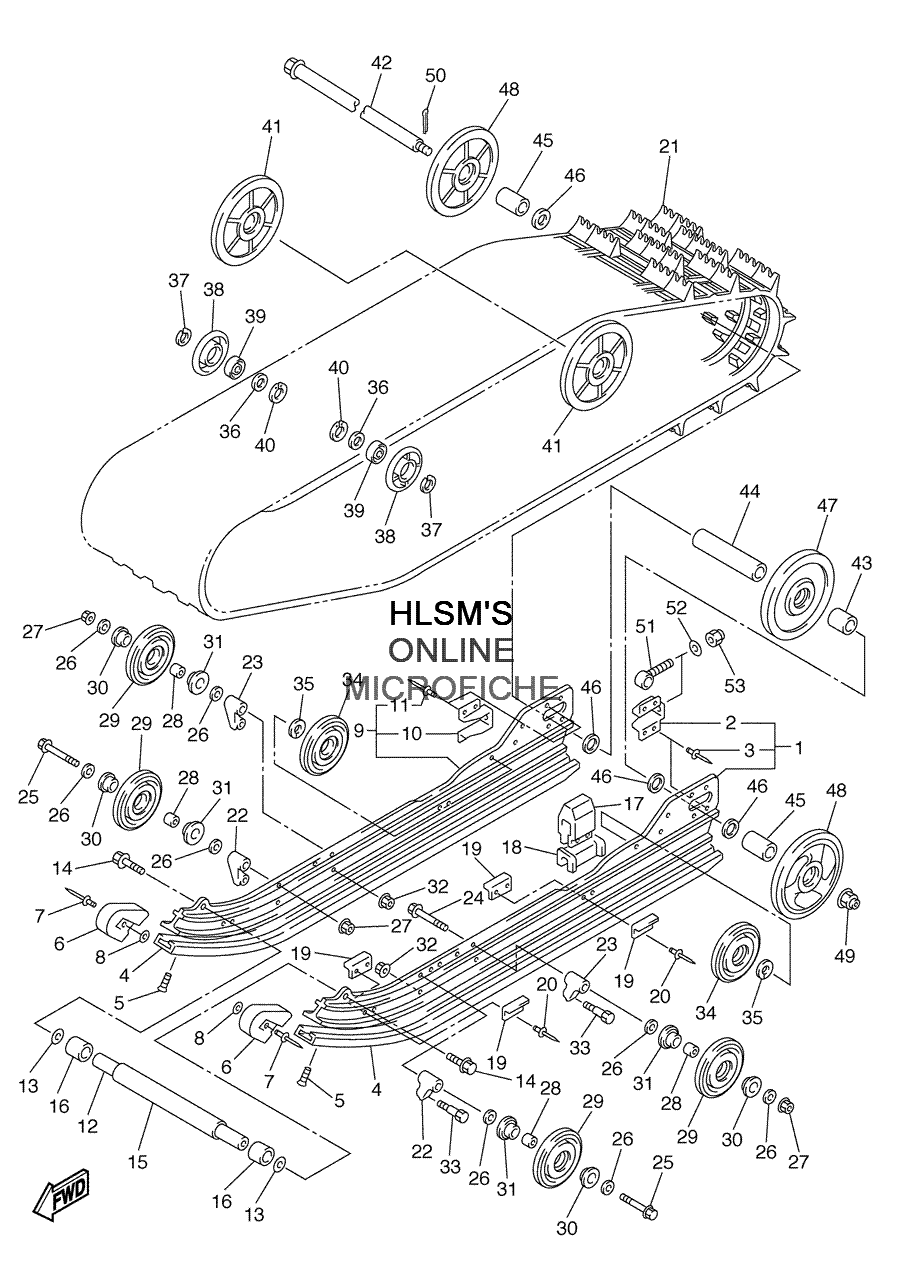

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SX VIPER MOUNTAIN - 2004 года выпуска`
-
№АртикулНазвание
-
18EN-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28DM-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ...RIVET...RIVET
-
48EN-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98EN-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
108DM-4741B-00-00 ...BRACKET...BRACKET
-
118V0-47468-00-00 ...RIVET...RIVET
-
1282M-47485-02-00 SHAFT 3SHAFT 3
-
1390201-10126-00 WASHER, PLATEWASHER, PLATE
-
1490105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
1590387-20002-00 COLLARCOLLAR
-
1690387-20003-00 COLLARCOLLAR
-
178CM-47457-00-00 DAMPER 2DAMPER 2
-
188CM-47341-00-00 SPACERSPACER
-
198AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
2090267-48199-00 RIVET, BLINDRIVET, BLIND
-
218EN-47110-00-00 TRACK ASSY., 15X144X2TRACK ASSY., 15X144X2
-
228DF-47419-00-00 BRACKET 7BRACKET 7
-
238DF-47419-10-00 BRACKET 7BRACKET 7
-
2490105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
2595817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-100S0-00 WASHER, PLATEWASHER, PLATE
-
2795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890387-10079-00 COLLARCOLLAR
-
298CR-47310-10-00 BOGEY WHEEL W SPACERBOGEY WHEEL W SPACER
-
308CR-47341-01-00 SPACERSPACER
-
318CR-47341-11-00 SPACERSPACER
-
3295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3390101-08774-00 BOLTBOLT
-
348CR-47310-10-00 BOGEY WHEEL W SPACERBOGEY WHEEL W SPACER
-
3599009-25400-00 CIRCLIPCIRCLIP
-
3690387-2004V-00 COLLARCOLLAR
-
3799009-20400-00 CIRCLIPCIRCLIP
-
388H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
3993306-00444-00 BEARINGBEARING
-
4099009-42500-00 CIRCLIPCIRCLIP
-
418EK-47550-00-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
428L8-47520-02-00 REAR AXLE COMP.REAR AXLE COMP.
-
4390387-2012E-00 COLLARCOLLAR
-
4490387-2012C-00 COLLARCOLLAR
-
4590387-2012D-00 COLLARCOLLAR
-
4690201-205R6-00 WASHER, PLATEWASHER, PLATE
-
478CR-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
488EK-47550-10-00 GUIDE WHEEL ASSY.GUIDE WHEEL ASSY.
-
4995607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5091401-30025-00 PIN, COTTERPIN, COTTER
-
518DM-47479-00-00 COLLAR 3COLLAR 3
-
5292907-10600-00 WASHER, PLATEWASHER, PLATE
-
5395707-10300-00 NUT, FLANGENUT, FLANGE
