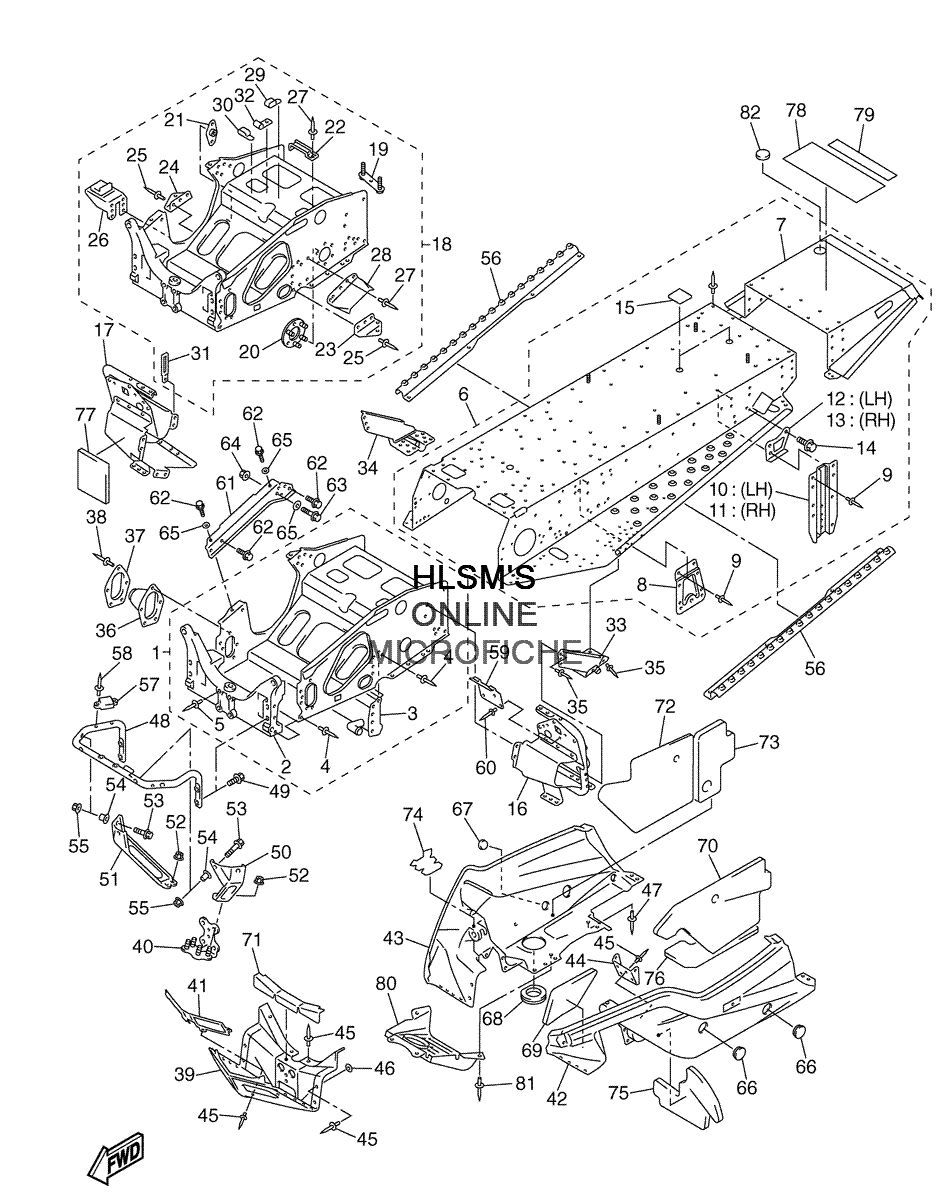

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha SX VIPER MOUNTAIN - 2004 года выпуска`
-
№АртикулНазвание
-
18EK-21940-18-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28EK-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38EK-12440-10-00 ...HEAT EXCHANGER ASSY....HEAT EXCHANGER ASSY.
-
490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
590267-48057-00 ...RIVET, BLIND...RIVET, BLIND
-
68EN-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
78EN-21916-00-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
88ED-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
108EN-21944-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
118EN-21954-00-00 ......BRACKET, RR. TRACK SUSPENSI......BRACKET, RR. TRACK SUSPENSI
-
128EN-21988-00-00 ...PATCH 8...PATCH 8
-
138EN-21989-00-00 ...PATCH 9...PATCH 9
-
1495827-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
158CR-2198J-00-00 ...COVER 3...COVER 3
-
168EK-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
178EK-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
188EN-W2195-01-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
198CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
208EK-21920-01-00 ...HOUSING, REINF SUB-ASSY. (L.H)...HOUSING, REINF SUB-ASSY. (L.H)
-
218CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
228DN-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
238EK-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
248EK-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
2590267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
268EK-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2790267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
288CR-2198G-01-00 ...COVER 2...COVER 2
-
2990461-05003-00 ...CLAMP...CLAMP
-
3090461-06142-00 ...CLAMP...CLAMP
-
3190462-05059-00 ...CLAMP...CLAMP
-
3290461-10148-00 ...CLAMP...CLAMP
-
338DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
348DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
3590269-07080-00 RIVETRIVET
-
368DN-2198F-00-00 COVER 1COVER 1
-
378CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3890267-47197-00 RIVET, BLINDRIVET, BLIND
-
398EK-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
408EK-23788-00-00 PLATE, BACK UPPLATE, BACK UP
-
418CR-77128-00-00 STAY 4STAY 4
-
428EK-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
438EN-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
448EK-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
4590267-48018-00 RIVET, BLINDRIVET, BLIND
-
4690201-05033-00 WASHER, PLATEWASHER, PLATE
-
4790267-47187-00 RIVET, BLINDRIVET, BLIND
-
488EK-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4995807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
508EK-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
518EK-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
5295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5395807-08035-00 BOLT, FLANGEBOLT, FLANGE
-
5490387-08015-00 COLLARCOLLAR
-
5595707-08500-00 NUT, FLANGENUT, FLANGE
-
568ED-2192A-30-00 PLATE, ANTI-SKIDPLATE, ANTI-SKID
-
578DJ-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
5890267-48018-00 RIVET, BLINDRIVET, BLIND
-
598CR-21973-00-00 HOOKHOOK
-
6090267-48169-00 RIVET, BLINDRIVET, BLIND
-
618EK-21921-00-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6290105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6395827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6495707-10500-00 NUT, FLANGENUT, FLANGE
-
6592907-10200-00 WASHER, PLAINWASHER, PLAIN
-
6690338-44093-00 PLUGPLUG
-
6790338-30256-00 PLUGPLUG
-
688DF-21998-10-00 SPACERSPACER
-
698EK-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
708EK-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
718EK-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
728EK-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
738EK-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
748EK-77266-10-00 LINING, SHROUD 6LINING, SHROUD 6
-
758EK-77267-00-00 LINING, SHROUD 7LINING, SHROUD 7
-
768EK-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
778EK-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
788EN-77143-01-00 EMBLEM 3EMBLEM 3
-
7988X-77762-10-00 LABEL, WARNING 2LABEL, WARNING 2
-
808EN-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
8190267-49004-00 RIVET, BLINDRIVET, BLIND
-
8290338-44019-00 PLUGPLUG
