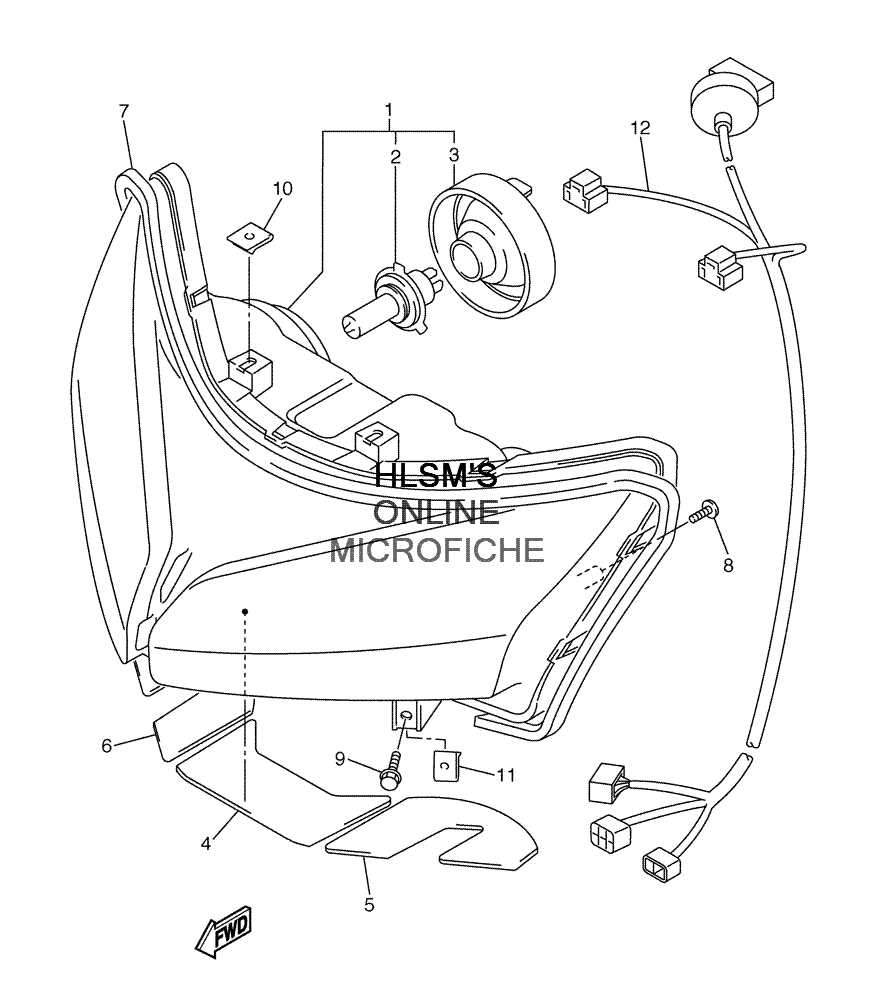

ELECTRICAL - HEADLIGHT ASSY для Yamaha SX VIPER MOUNTAIN - 2004 года выпуска`
-
№АртикулНазвание
-
18EK-84310-00-00 HEADLIGHT UNIT ASSY.HEADLIGHT UNIT ASSY.
-
25V2-84314-00-XX ...BULB (12V-60/55W)...BULB (12V-60/55W)
-
38EK-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
48EK-8399N-00-00 INSULATOR 1INSULATOR 1
-
58EK-8368L-00-00 INSULATOR 2INSULATOR 2
-
68EK-8368M-00-00 INSULATOR 3INSULATOR 3
-
78EN-83669-00-00 INSULATORINSULATOR
-
890167-05078-00 SCREW, TAPPINGSCREW, TAPPING
-
995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1090183-06053-00 NUT, SPRINGNUT, SPRING
-
1190183-06100-00 NUT, SPRINGNUT, SPRING
-
128FE-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
