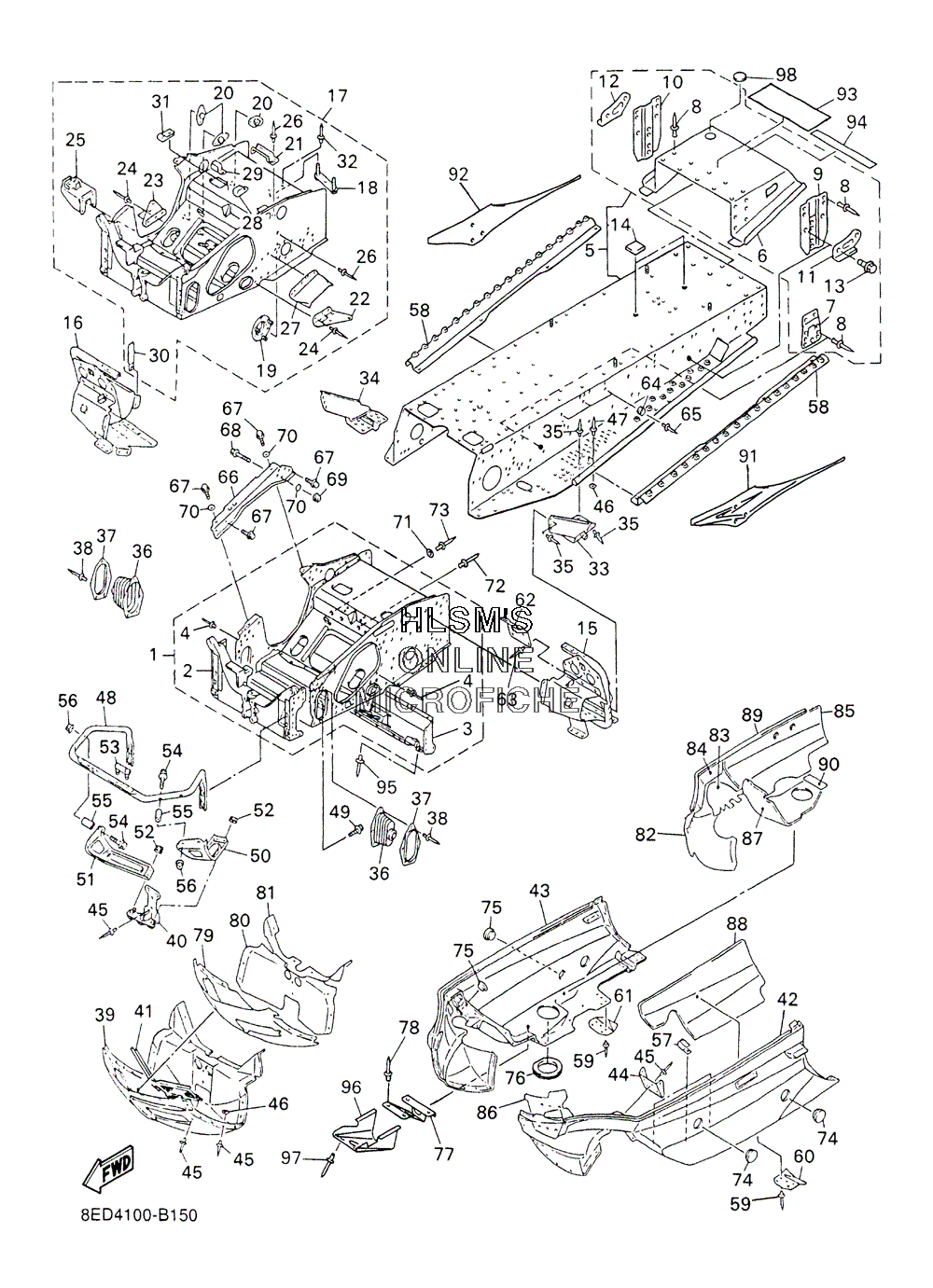

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha MOUNTAIN MAX 700 - 2003 года выпуска`
-
№АртикулНазвание
-
18DG-21940-07-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28CR-2191A-02-00 ...BULKHEAD...BULKHEAD
-
38DG-12440-01-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
490267-48015-00 ...RIVET, BLIND (OPT)...RIVET, BLIND (OPT)
-
490267-48016-00 ...RIVET, BLIND (OPT)...RIVET, BLIND (OPT)
-
58EJ-21950-08-00 REAR FRAME COMP.REAR FRAME COMP.
-
68ED-21916-10-00 ...PANEL, SUB FRAME 5...PANEL, SUB FRAME 5
-
78ED-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
890267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
98ED-21944-00-00 ...BRACKET, RR.TRACK SUSPENTION...BRACKET, RR.TRACK SUSPENTION
-
108ED-21954-00-00 ...BRACKET, RR.TRACK SUSPENTION...BRACKET, RR.TRACK SUSPENTION
-
118ED-21988-00-00 ...PATCH 8...PATCH 8
-
128ED-21989-00-00 ...PATCH 9...PATCH 9
-
1395827-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
148CR-2198J-00-00 ...COVER 3...COVER 3
-
158ED-21960-09-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
168ED-21970-09-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
178ED-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
188CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
198CR-21920-00-00 ...HOUSING, REINF SUB-ASSY(L.H)...HOUSING, REINF SUB-ASSY(L.H)
-
208CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
218CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
228CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
238CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
2490267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
258CR-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
2690267-47186-00 ...RIVET, BLIND...RIVET, BLIND
-
278CR-2198G-00-00 ...COVER 2...COVER 2
-
2890461-05003-00 ...CLAMP...CLAMP
-
2990461-06142-00 ...CLAMP...CLAMP
-
3090462-05059-00 ...CLAMP...CLAMP
-
3190461-10148-00 ...CLAMP...CLAMP
-
3290267-47197-00 ...RIVET, BLIND...RIVET, BLIND
-
338DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
348DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
3590269-07080-00 RIVETRIVET
-
368CR-2198F-00-00 COVER 1COVER 1
-
378CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3890267-47197-00 RIVET, BLINDRIVET, BLIND
-
398CR-21912-01-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
408CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
418CR-77128-00-00 STAY 4STAY 4
-
428CR-2196A-03-00 FRAME UNDER 1FRAME UNDER 1
-
438CR-2196E-03-00 FRAME, UNDER 2FRAME, UNDER 2
-
448CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
4590267-48018-00 RIVET, BLINDRIVET, BLIND
-
4690201-05033-00 WASHER, PLATEWASHER, PLATE
-
4790267-47187-00 RIVET, BLINDRIVET, BLIND
-
488CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4995807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
508CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
518CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
5295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
5495807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
5590387-0810F-00 COLLARCOLLAR
-
5695707-08500-00 NUT, FLANGENUT, FLANGE
-
5790465-08146-00 CLAMPCLAMP
-
588ED-2192A-10-00 PLATE, ANTI-SKIDPLATE, ANTI-SKID
-
5990267-48018-00 RIVET, BLINDRIVET, BLIND
-
608CR-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
618CR-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
628CR-21973-00-00 HOOKHOOK
-
6390267-48169-00 RIVET, BLINDRIVET, BLIND
-
6481K-2471F-00-00 BUTTONBUTTON
-
6590267-40069-00 RIVET, BLINDRIVET, BLIND
-
668CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6790105-10617-00 BOLT, FLANGEBOLT, FLANGE
-
6895827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6995707-10500-00 NUT, FLANGENUT, FLANGE
-
7092907-10200-00 WASHER, PLAINWASHER, PLAIN
-
7190201-05033-00 WASHER, PLATEWASHER, PLATE
-
7290267-48016-00 RIVET, BLINDRIVET, BLIND
-
7390267-47187-00 RIVET, BLINDRIVET, BLIND
-
7490338-44093-00 PLUGPLUG
-
7590338-30256-00 PLUGPLUG
-
768DF-21998-00-00 SPACERSPACER
-
778ED-2197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
7890267-48018-00 RIVET, BLINDRIVET, BLIND
-
798CR-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
808CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
818CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
828CR-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
838CR-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
848CR-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
858CR-77267-01-00 LINING, SHROUD 7LINING, SHROUD 7
-
868CR-77268-00-00 LINING,SHROUD 8LINING,SHROUD 8
-
878CR-77269-00-00 LINING,SHROUD 9LINING,SHROUD 9
-
888CR-77271-00-00 DAMPER, NOISE 11DAMPER, NOISE 11
-
898CR-7717J-00-00 TAPE,5TAPE,5
-
908CR-77165-00-00 TRIM 1TRIM 1
-
918EJ-7711G-10-00 GRAPHIC 7GRAPHIC 7
-
928EJ-7711H-10-00 GRAPHIC 8GRAPHIC 8
-
938EN-77143-01-00 EMBLEM 3EMBLEM 3
-
9488X-77762-10-00 LABEL, WARNING 2LABEL, WARNING 2
-
9590267-48016-00 RIVET, BLINDRIVET, BLIND
-
968ED-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
9790267-47186-00 RIVET, BLINDRIVET, BLIND
-
9890338-44019-00 PLUGPLUG
