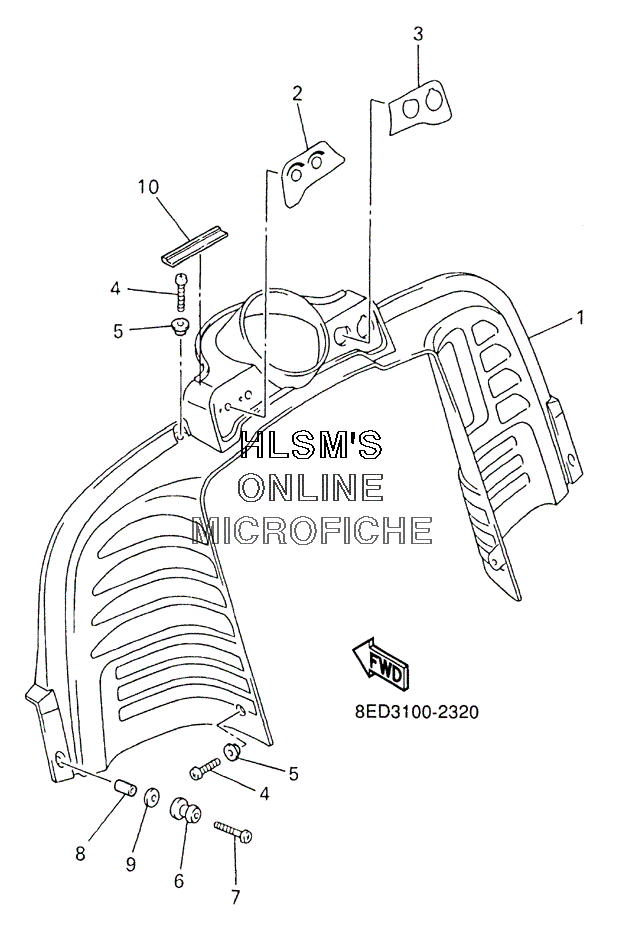

CONSOLE ASSY для Yamaha MOUNTAIN MAX 700 - 2003 года выпуска`
-
№АртикулНазвание
-
18DM-77711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28DM-77741-00-00 INDICATOR 1INDICATOR 1
-
38DM-77742-00-00 INDICATOR 2INDICATOR 2
-
498907-06012-00 SCREW, BINDSCREW, BIND
-
590387-0611K-00 COLLARCOLLAR
-
68M6-77175-00-00 HOLDER, LATCHHOLDER, LATCH
-
790154-06077-00 SCREW, BINDINGSCREW, BINDING
-
890387-064W3-00 COLLARCOLLAR
-
990201-06071-00 .WASHER, PLATE.WASHER, PLATE
-
108CR-2196T-00-00 TRIM 1TRIM 1
