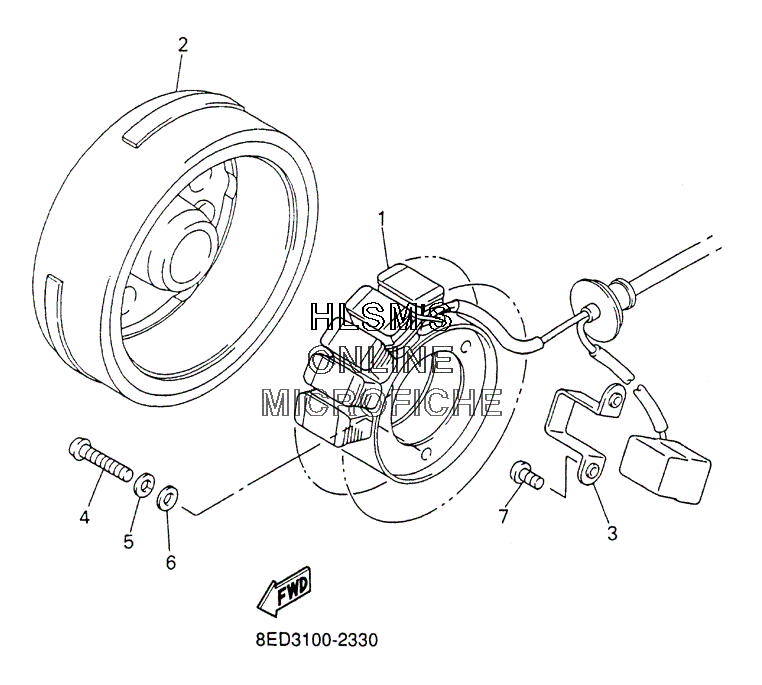

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha MOUNTAIN MAX 700 - 2003 года выпуска`
-
№АртикулНазвание
-
18DM-81410-00-00 STATOR ASSYSTATOR ASSY
-
28DM-81450-00-00 ROTOR ASSYROTOR ASSY
-
390465-10385-00 CLAMPCLAMP
-
498507-06030-00 SCREWSCREW
-
592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
692907-06600-00 .WASHER, PLATE.WASHER, PLATE
-
798507-05014-00 SCREWSCREW
