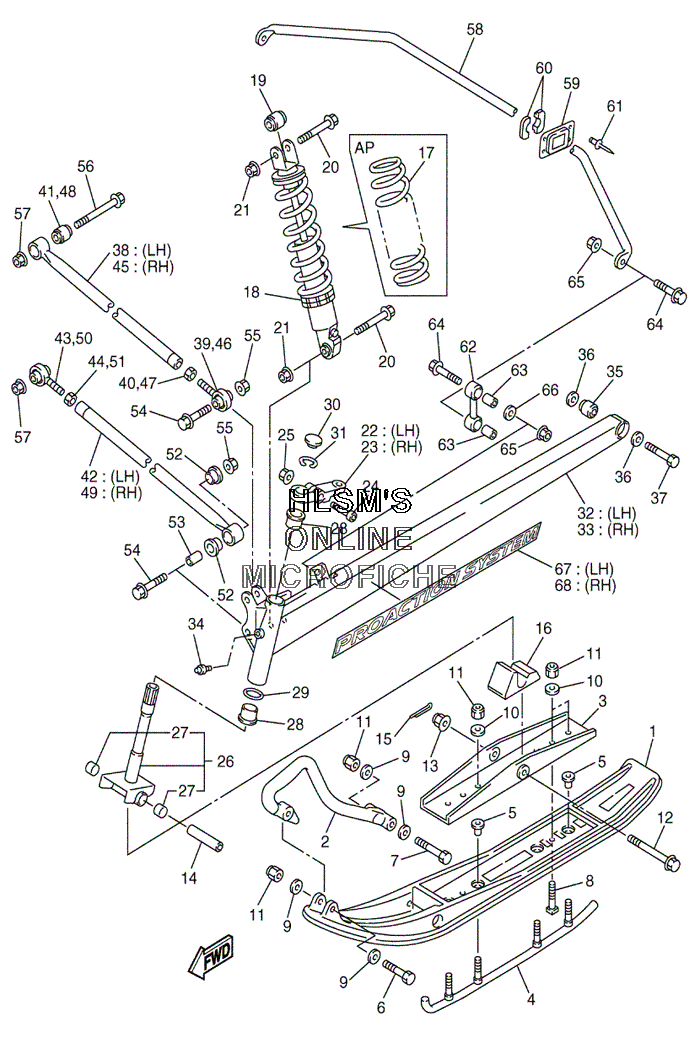

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SX VIPER 700 ER - 2002 года выпуска`
-
№АртикулНазвание
-
18EK-F3711-00-00 SKI 1SKI 1
-
28FB-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EK-F3766-00-00 SADDLE 1SADDLE 1
-
48EK-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
990201-08784-00 WASHER, PLATEWASHER, PLATE
-
1090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
119570M-08300-00 NUT, FLANGENUT, FLANGE
-
1290105-10712-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CR-23743-10-00 STOPPER 1STOPPER 1
-
178CX-23760-00-00 SPRING ASSY 1 (K=1.7) (OPT)SPRING ASSY 1 (K=1.7) (OPT)
-
178CX-23760-10-00 SPRING ASSY 1 (K=2.3) (OPT)SPRING ASSY 1 (K=2.3) (OPT)
-
178CH-23760-40-00 SPRING ASSY 1 (K=1.1-1.9-2.1) (OPT)SPRING ASSY 1 (K=1.1-1.9-2.1) (OPT)
-
178CH-23760-50-00 SPRING ASSY 1 (K=1.3-2.4-2.8) (OPT)SPRING ASSY 1 (K=1.3-2.4-2.8) (OPT)
-
178CH-23760-60-00 SPRING ASSY 1 (K=1.5-2.3-3.1) (OPT)SPRING ASSY 1 (K=1.5-2.3-3.1) (OPT)
-
188EK-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
198CR-2376B-00-00 BUSHBUSH
-
2090105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
2195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228EK-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
238EK-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2491314-08035-00 BOLT, SOCKETBOLT, SOCKET
-
2595604-08200-00 NUT, U FLANGENUT, U FLANGE
-
268EK-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2790384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2890381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2990201-301G3-00 WASHER, PLATEWASHER, PLATE
-
308CR-23741-10-00 CAP 1CAP 1
-
3199009-25400-00 CIRCLIPCIRCLIP
-
328DM-2382E-10-00 ARM, FRONT 1ARM, FRONT 1
-
338DM-2382F-10-00 ARM, FRONT 2ARM, FRONT 2
-
3493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
358CR-2516A-00-00 DAMPERDAMPER
-
3690201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3790101-12780-00 BOLTBOLT
-
388EK-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
398EK-23823-00-00 JOINT 2JOINT 2
-
4095317-12600-00 NUTNUT
-
418EK-23775-00-00 INSERTINSERT
-
428EK-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
438EK-23832-00-00 JOINT 3JOINT 3
-
4495314-14600-00 NUTNUT
-
458EK-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
468EK-23823-00-00 JOINT 2JOINT 2
-
4795317-12600-00 NUTNUT
-
488EK-23775-00-00 INSERTINSERT
-
498EK-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
508EK-23832-00-00 JOINT 3JOINT 3
-
5195314-14600-00 NUTNUT
-
5290381-17110-00 BUSH, SOLIDBUSH, SOLID
-
5390387-1009K-00 COLLARCOLLAR
-
5490105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
5595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5690105-12010-00 BOLT, FLANGEBOLT, FLANGE
-
5795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
588CR-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
598CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
608CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6190267-47186-00 RIVET, BLINDRIVET, BLIND
-
628DF-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6390387-087L3-00 COLLARCOLLAR
-
6490105-08345-00 BOLT, FLANGEBOLT, FLANGE
-
6595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6690201-086P8-00 WASHER, PLATEWASHER, PLATE
-
678EA-77371-30-00 EMBLEM 15EMBLEM 15
-
688EA-77372-30-00 EMBLEM 16EMBLEM 16
