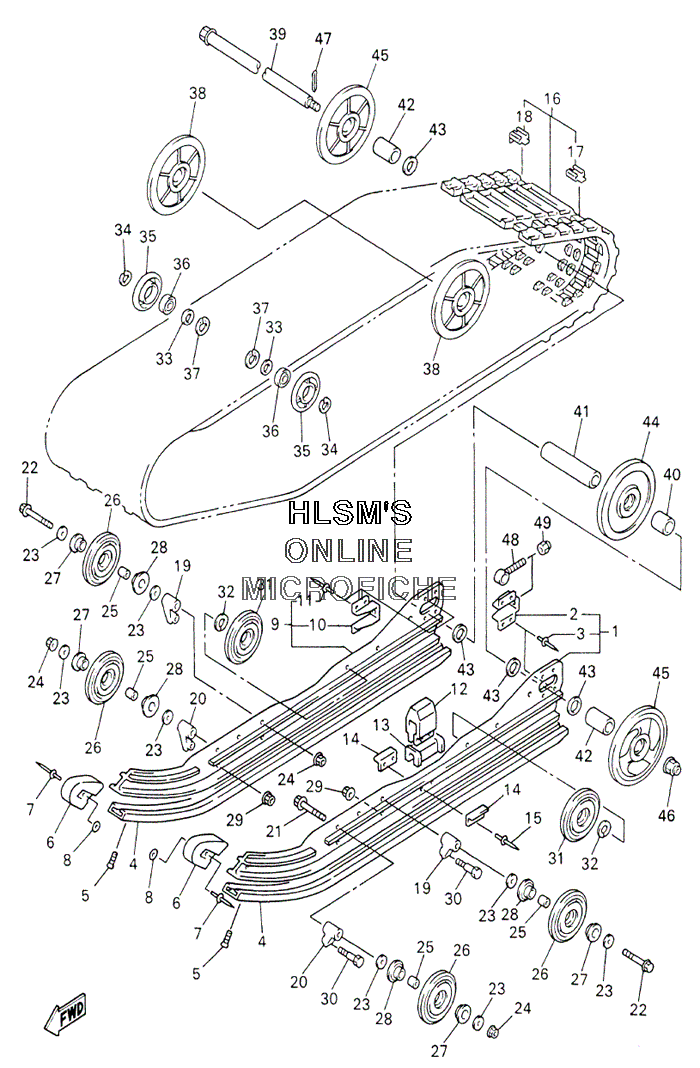

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha SX VIPER 700 ER - 2002 года выпуска`
-
№АртикулНазвание
-
18EA-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28V0-4741B-00-00 ...BRACKET...BRACKET
-
38V0-47468-00-00 ....RIVET....RIVET
-
48CM-47421-40-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68CM-47422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98EA-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
108V0-4741B-00-00 ...BRACKET...BRACKET
-
118V0-47468-00-00 ....RIVET....RIVET
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLINDRIVET, BLIND
-
168EK-47110-00-00 TRACK ASSYTRACK ASSY
-
178EA-47113-00-00 ....PLATE, REINFORCEMENT....PLATE, REINFORCEMENT
-
188EA-47115-30-00 ....METAL, SLIDE....METAL, SLIDE
-
198DF-47419-00-00 BRACKET 7BRACKET 7
-
208DF-47419-10-00 BRACKET 7BRACKET 7
-
2190105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
2295817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
2390201-100S0-00 WASHER, PLATEWASHER, PLATE
-
2495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590387-10079-00 COLLARCOLLAR
-
268CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
278CR-47341-01-00 SPACERSPACER
-
288CR-47341-11-00 SPACERSPACER
-
2995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090101-08774-00 BOLTBOLT
-
318CR-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3299009-25400-00 CIRCLIPCIRCLIP
-
3390387-2004V-00 COLLARCOLLAR
-
3499009-20400-00 CIRCLIPCIRCLIP
-
358H8-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
3693306-00444-00 BEARING (B6004RS)BEARING (B6004RS)
-
3799009-42500-00 CIRCLIPCIRCLIP
-
388EK-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
398L8-47520-02-00 REAR AXLE COMP.REAR AXLE COMP.
-
4090387-2012E-00 COLLARCOLLAR
-
4190387-2012C-00 COLLARCOLLAR
-
4290387-2012D-00 COLLARCOLLAR
-
4390201-205R6-00 WASHER, PLATEWASHER, PLATE
-
448CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
458EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4695607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4791401-30025-00 PIN, COTTERPIN, COTTER
-
488K2-47479-01-00 COLLAR 3COLLAR 3
-
4995707-10300-00 NUT, FLANGENUT, FLANGE
