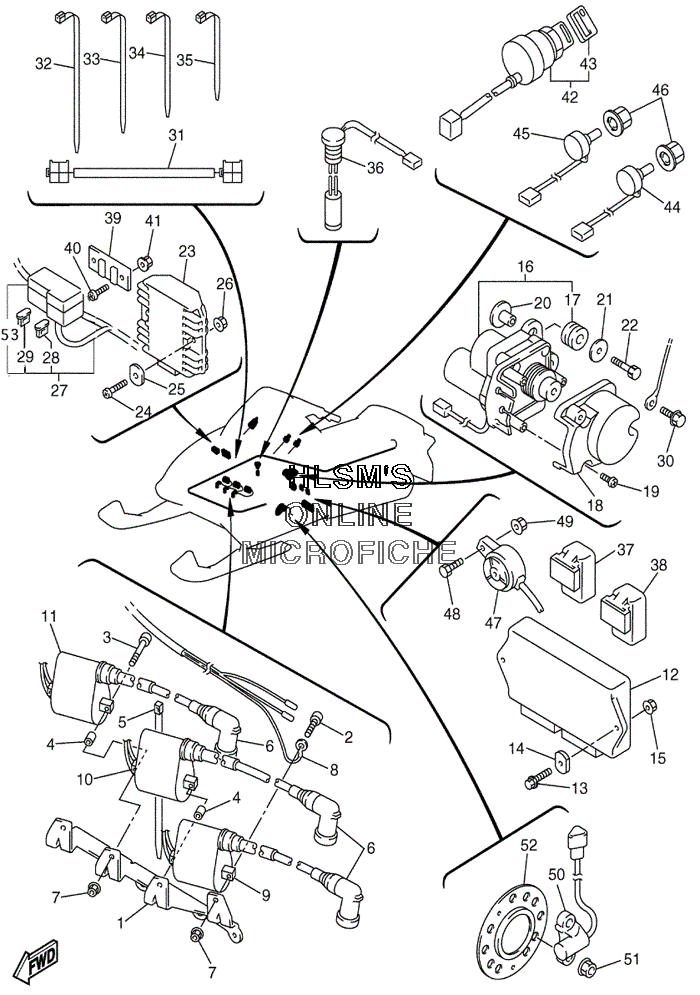

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha SX VIPER 700 ER - 2002 года выпуска`
-
№АртикулНазвание
-
18EK-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
291317-06020-00 BOLTBOLT
-
391317-06040-00 BOLTBOLT
-
490387-0714B-00 COLLARCOLLAR
-
590464-15195-00 CLAMPCLAMP
-
68DF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
88EK-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
98DF-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
108DF-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
118DF-82310-30-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
128EK-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1395807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1490179-06264-00 NUTNUT
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
168DF-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
1790480-14023-00 ....GROMMET....GROMMET
-
188DF-85829-00-00 COVER, SERVO MOTORCOVER, SERVO MOTOR
-
1998507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2090387-063G3-00 COLLARCOLLAR
-
2190201-06380-00 WASHER, PLATEWASHER, PLATE
-
2297007-06030-00 BOLTBOLT
-
235BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2498907-06025-00 SCREW, BINDSCREW, BIND
-
2590179-06264-00 NUTNUT
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
-
278FB-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
285JJ-82151-30-00 ....FUSE (10A-BL)....FUSE (10A-BL)
-
295JJ-82151-20-00 ....FUSE (20A-BL)....FUSE (20A-BL)
-
3097007-06010-00 BOLTBOLT
-
318DM-8471G-00-00 WIRE, LEADWIRE, LEAD
-
3290464-12045-00 CLAMPCLAMP
-
3390464-15195-00 CLAMPCLAMP
-
3490464-13073-00 CLAMPCLAMP
-
3590464-13077-00 CLAMPCLAMP
-
368CR-85720-01-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
378DM-81950-00-00 RELAY MAIN (LOAD)RELAY MAIN (LOAD)
-
385DM-81950-00-00 RELAY HEADLIGHTRELAY HEADLIGHT
-
39JT1-83614-00-00 BRACKETBRACKET
-
4098507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4195707-06500-00 NUT, FLANGENUT, FLANGE
-
428DM-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
43526-82579-00-00 ...CAP, KEY...CAP, KEY
-
448DM-87283-00-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
458DM-87283-10-00 RESISTOR, VARIABLERESISTOR, VARIABLE
-
468DM-87284-00-00 KNOB, VARIABLE RESISTORKNOB, VARIABLE RESISTOR
-
478CW-83383-00-00 BUZZERBUZZER
-
4897007-05020-00 BOLTBOLT
-
4995707-05500-00 NUT, FLANGENUT, FLANGE
-
508EK-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
5195707-08300-00 NUT, FLANGENUT, FLANGE
-
528EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
531AE-82172-00-00 BOX COVERBOX COVER
