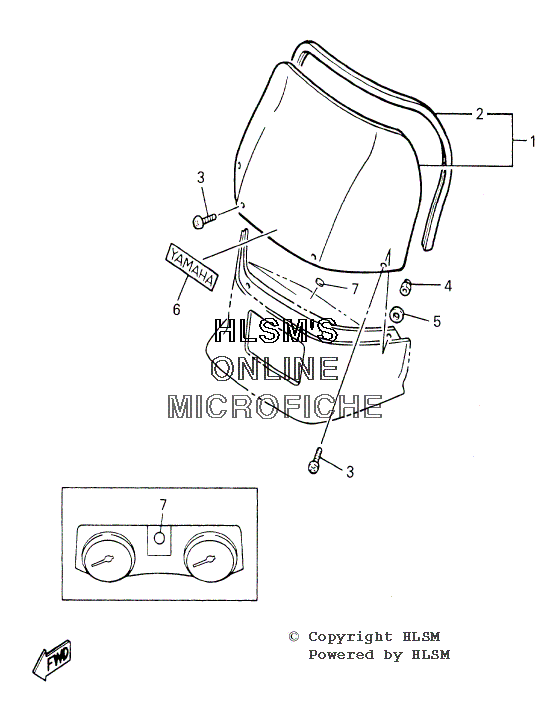

HOOD - WINDSHIELD ASSY для Yamaha VIKING 540 - 2001 года выпуска`
-
№АртикулНазвание
-
186V-77210-10-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
287S-77213-10-00 ...TRIM, UPPER...TRIM, UPPER
-
390154-05047-00 SCREW, BINDINGSCREW, BINDING
-
490176-05059-00 NUT, CROWNNUT, CROWN
-
590201-05033-00 WASHER, PLATEWASHER, PLATE
-
699246-00120-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
74XV-2341B-00-00 EMBLEMEMBLEM
