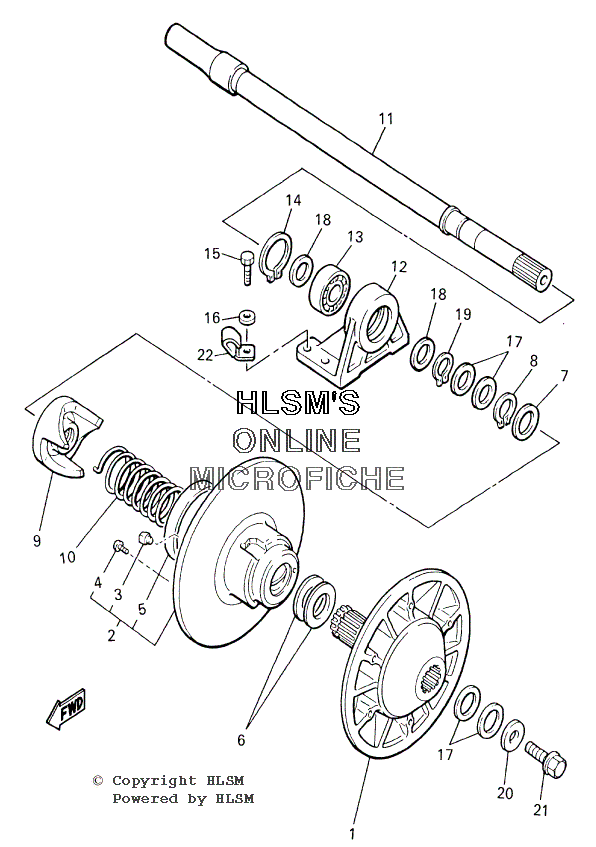

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha VIKING 540 - 2001 года выпуска`
-
№АртикулНазвание
-
188R-17660-02-00 SECONDARY FIXED SHEAVE COMPSECONDARY FIXED SHEAVE COMP
-
28AT-17670-01-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
38X6-17688-00-00 ...SHOE, RAMP...SHOE, RAMP
-
490154-06062-00 ...SCREW, BINDING...SCREW, BINDING
-
590384-90081-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
690201-345G2-00 WASHER, PLATEWASHER, PLATE
-
790214-29060-00 WASHER, CLAWWASHER, CLAW
-
893440-34170-00 CIRCLIPCIRCLIP
-
98AT-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
1090508-50746-00 SPRING, TORSIONSPRING, TORSION
-
1188N-17680-02-00 SECONDARY SHAFT COMP.SECONDARY SHAFT COMP.
-
1288N-47631-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1393306-20582-00 BEARINGBEARING
-
1499009-52500-00 CIRCLIPCIRCLIP
-
1597027-08020-00 BOLTBOLT
-
1692907-08600-00 WASHER, PLATEWASHER, PLATE
-
1790201-252F1-00 WASHER, PLATE (T0.5) (OPT) (UN)WASHER, PLATE (T0.5) (OPT) (UN)
-
1790201-25526-00 WASHER, PLATE (T2.0) (OPT) (UN)WASHER, PLATE (T2.0) (OPT) (UN)
-
1790201-25527-00 WASHER, PLATE (T1.0) (OPT) (UN)WASHER, PLATE (T1.0) (OPT) (UN)
-
1890201-257J2-00 WASHER, PLATEWASHER, PLATE
-
1993410-25017-00 CIRCLIPCIRCLIP
-
2090201-104A7-00 WASHER, PLATEWASHER, PLATE
-
2195817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
2290465-08316-00 CLAMPCLAMP
