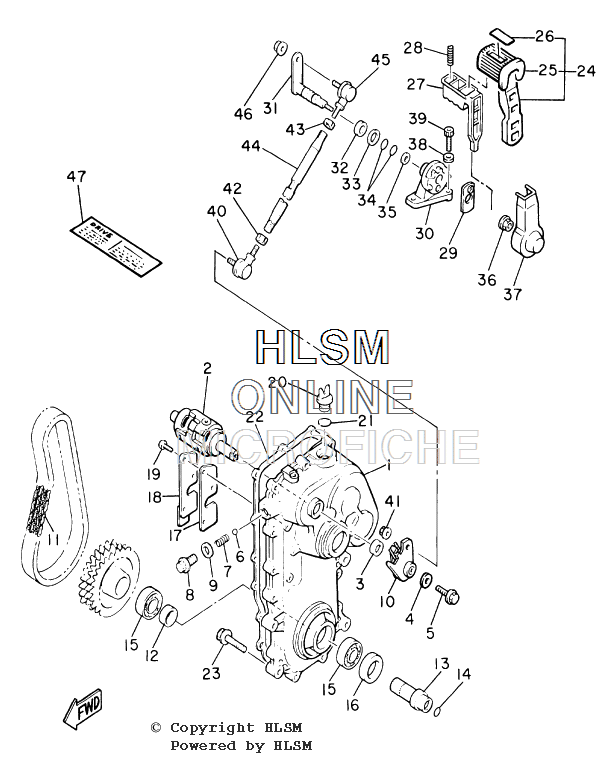

CHAINCASE ASSY 2 для Yamaha VIKING 540 - 2001 года выпуска`
-
№АртикулНазвание
-
187R-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
289N-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
393102-15212-00 OIL SEALOIL SEAL
-
490201-06072-00 WASHER, PLATEWASHER, PLATE
-
590105-06405-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
693503-08007-00 BALLBALL
-
790501-147A6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
890105-14367-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990430-14194-00 GASKETGASKET
-
1089N-18130-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1194880-06070-00 CHAINCHAIN
-
1290387-405T8-00 COLLARCOLLAR
-
1383R-47571-00-00 JOURNAL 1JOURNAL 1
-
1493210-28763-00 O-RINGO-RING
-
1593306-90802-00 BEARINGBEARING
-
1693102-46394-00 OIL SEALOIL SEAL
-
1785R-47544-01-00 GASKETGASKET
-
1888N-47591-00-00 PLATEPLATE
-
1990154-06050-00 SCREW, BINDINGSCREW, BINDING
-
203Y1-15363-00-00 PLUG, OILPLUG, OIL
-
2193210-19123-00 O-RINGO-RING
-
2285R-47592-00-00 GASKETGASKET
-
2395827-08040-00 BOLT, FLANGEBOLT, FLANGE
-
2483R-18150-00-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
2552G-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
2683R-1815A-00-00 ...LABEL...LABEL
-
2759V-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2890501-101A7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2959V-18561-00-00 PLATE, SIDE 1PLATE, SIDE 1
-
3083R-18153-00-00 GUIDE, SHIFT RETURN SPRINGGUIDE, SHIFT RETURN SPRING
-
3183R-18341-00-00 SHAFT, RINKSHAFT, RINK
-
3290387-145T7-00 COLLARCOLLAR
-
3390201-144J2-00 WASHER, PLATEWASHER, PLATE
-
3493210-10010-00 O-RINGO-RING
-
3590201-064J1-00 WASHER, PLATEWASHER, PLATE
-
3695707-06500-00 NUT, FLANGENUT, FLANGE
-
3759V-18433-00-00 COVER, SHIFT SPRINGCOVER, SHIFT SPRING
-
3892907-06600-00 WASHER, PLATEWASHER, PLATE
-
3991317-06025-00 BOLTBOLT
-
403X3-18157-10-00 JOINT 2JOINT 2
-
4195707-06500-00 NUT, FLANGENUT, FLANGE
-
4295317-08600-00 NUTNUT
-
4390170-08261-00 NUTNUT
-
4483R-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
453X3-18156-10-00 JOINT 1JOINT 1
-
4695707-06500-00 NUT, FLANGENUT, FLANGE
-
478AT-47578-00-00 LABEL 1LABEL 1
