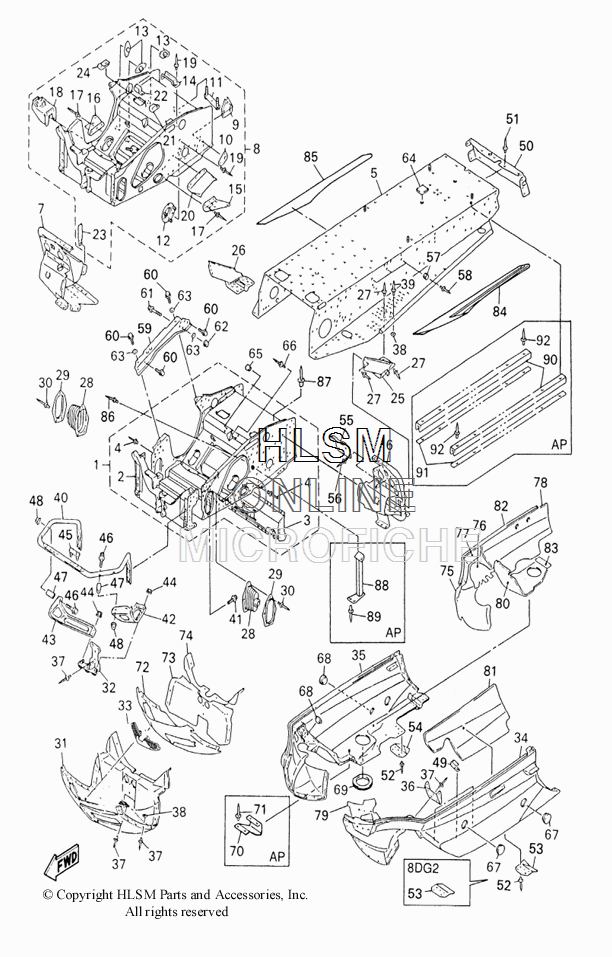

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha V-MAX 700 DELUXE - 2000 года выпуска
-
№АртикулНазвание
-
18DG-21940-08-00 FRONT FRAME COMPFRONT FRAME COMP
-
28CR-2191A-00-00 ...BULKHEAD...BULKHEAD
-
38DG-12440-00-00 ...HEAT EXCHANGER ASSEMBLY...HEAT EXCHANGER ASSEMBLY
-
490267-48176-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
490267-48177-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
58DG-21950-09-00 REAR FRAME COMPREAR FRAME COMP
-
68CR-21960-08-00 FOOTREST COMP1FOOTREST COMP1
-
78CR-21970-08-00 FOOTREST COMP2FOOTREST COMP2
-
88CR-W2195-03-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
98CR-21943-01-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
108CR-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
118CR-2196F-00-00 ...BRACKET 3...BRACKET 3
-
128CR-21920-00-00 ...HOUSING, REINF SUB-ASSEMBLY (L.H)...HOUSING, REINF SUB-ASSEMBLY (L.H)
-
138CR-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
148CR-21977-00-00 ...CLAMP, FUEL PIPE...CLAMP, FUEL PIPE
-
158CR-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
168CR-21918-00-00 ...PANEL, SUB-FRAME 7...PANEL, SUB-FRAME 7
-
1790267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
188CR-2194J-00-00 ...STAY, MUFFLER...STAY, MUFFLER
-
1990267-47186-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
1990267-47197-00 ...RIVET, BLIND (UR UN)...RIVET, BLIND (UR UN)
-
208CR-2198G-00-00 ...COVER 2...COVER 2
-
2190461-05003-00 ...CLAMP...CLAMP
-
2290461-06142-00 ...CLAMP...CLAMP
-
2390462-05059-00 ...CLAMP...CLAMP
-
2490461-10148-00 ...CLAMP...CLAMP
-
258DF-21941-00-00 PIPE, PIVOT 1PIPE, PIVOT 1
-
268DF-21951-00-00 PIPE, PIVOT 2PIPE, PIVOT 2
-
2790269-07080-00 RIVETRIVET
-
288CR-2198F-00-00 COVER 1COVER 1
-
298CR-2195E-00-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
3090267-48165-00 RIVET, BLINDRIVET, BLIND
-
318CR-21912-31-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
328CR-23788-11-00 PLATE, BACK UPPLATE, BACK UP
-
338CR-77128-00-00 STAY 4STAY 4
-
348CR-2196A-32-00 FRAME UNDER 1FRAME UNDER 1
-
358CR-2196E-32-00 FRAME, UNDER 2FRAME, UNDER 2
-
368CR-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
3790267-48141-00 RIVET, BLINDRIVET, BLIND
-
3890201-05033-00 WASHER, PLATEWASHER, PLATE
-
3990267-47187-00 RIVET, BLINDRIVET, BLIND
-
408CR-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
4195807-08020-00 BOLT, FLANGEBOLT, FLANGE
-
428CR-21949-10-00 BRACKET, FRONTBRACKET, FRONT
-
438CR-21959-10-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
458CR-2196M-00-00 BRACKET, 5BRACKET, 5
-
4695807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4790387-0810F-00 COLLARCOLLAR
-
4895707-08500-00 NUT, FLANGENUT, FLANGE
-
4990465-08146-00 CLAMPCLAMP
-
508CR-21923-02-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
5190267-47186-00 RIVET, BLINDRIVET, BLIND
-
5290267-48141-00 RIVET, BLINDRIVET, BLIND
-
538CH-21978-00-00 PROTECTOR, FRAME (VX600)PROTECTOR, FRAME (VX600)
-
538CR-21978-00-00 PROTECTOR, FRAME (VX700)PROTECTOR, FRAME (VX700)
-
548CR-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
558CR-21973-00-00 HOOKHOOK
-
5690267-48169-00 RIVET, BLINDRIVET, BLIND
-
5781K-2471F-00-00 BUTTONBUTTON
-
5890267-40069-00 RIVET, BLINDRIVET, BLIND
-
598CR-21921-01-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
6090105-10617-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6195827-10065-00 BOLT, FLANGEBOLT, FLANGE
-
6295707-10500-00 NUT, FLANGENUT, FLANGE
-
6392907-10200-00 WASHER, PLAINWASHER, PLAIN
-
648CR-2198J-00-00 COVER 3COVER 3
-
6590338-10004-00 PLUGPLUG
-
6690267-48177-00 RIVET, BLINDRIVET, BLIND
-
6790338-44269-00 PLUGPLUG
-
6890338-30267-00 PLUGPLUG
-
698DF-21998-00-00 SPACERSPACER
-
708CS-2197C-00-00 PROTECTOR, FRAME 3 (AP)PROTECTOR, FRAME 3 (AP)
-
7190267-48141-00 RIVET, BLIND (AP)RIVET, BLIND (AP)
-
728CR-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
738CR-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
748CR-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
758CR-77264-00-00 LINING, SHROUD 4LINING, SHROUD 4
-
768CR-77265-00-00 LINING, SHROUD 5LINING, SHROUD 5
-
778CR-77266-00-00 LINING, SHROUD 6LINING, SHROUD 6
-
788CR-77267-01-00 LINING, SHROUD 7LINING, SHROUD 7
-
798CR-77268-00-00 LINING, SHROUD 8LINING, SHROUD 8
-
808CR-77269-00-00 LINING, SHROUD 9LINING, SHROUD 9
-
818CR-77271-00-00 DAMPER, NOISE 1DAMPER, NOISE 1
-
828CR-7717J-00-00 TAPE, 5TAPE, 5
-
838CR-77165-00-00 TRIM 1TRIM 1
-
848DT-77351-00-00 EMBLEM 1EMBLEM 1
-
858DT-77352-00-00 EMBLEM 2EMBLEM 2
-
8690267-48177-00 RIVET, BLINDRIVET, BLIND
-
8790267-47186-00 RIVET, BLINDRIVET, BLIND
-
888EA-2197E-00-00 PROTECTOR, FRAME (AP)PROTECTOR, FRAME (AP)
-
8990267-48176-00 RIVET, BLIND (AP)RIVET, BLIND (AP)
-
908DF-21978-00-00 PROTECTOR, FRAME (AP)PROTECTOR, FRAME (AP)
-
918DF-21972-00-00 BRACKET, GUARD FITTING (AP)BRACKET, GUARD FITTING (AP)
-
9290267-47197-00 RIVET, BLIND (AP)RIVET, BLIND (AP)
