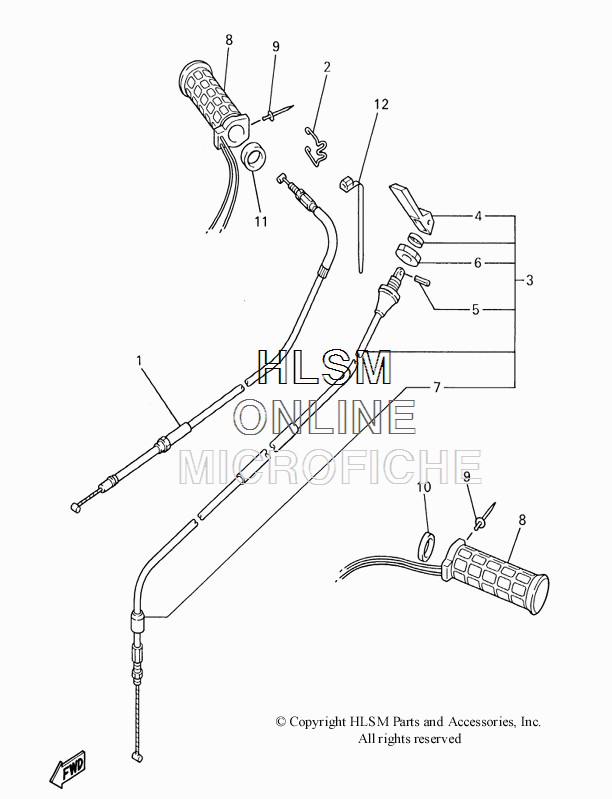

HANDLEBAR - CABLES AND GRIPS для Yamaha V-MAX 700 DELUXE - 2000 года выпуска`
-
№АртикулНазвание
-
18CH-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28M6-26391-01-00 CLIP, CABLECLIP, CABLE
-
38CH-26330-02-00 STARTER CABLE ASSEMBLYSTARTER CABLE ASSEMBLY
-
48U9-26325-00-00 ...KNOB, STARTER...KNOB, STARTER
-
591609-30010-00 ...PIN, SPRING...PIN, SPRING
-
68G8-26333-00-00 ...NUT...NUT
-
78CR-26329-00-00 ...CAP, RUBBER...CAP, RUBBER
-
888T-26240-00-00 GRIP ASSEMBLYGRIP ASSEMBLY
-
990267-40076-00 RIVET, BLINDRIVET, BLIND
-
1090387-22726-00 COLLARCOLLAR
-
1190387-224F9-00 COLLARCOLLAR
-
1290464-15195-00 CLAMPCLAMP
