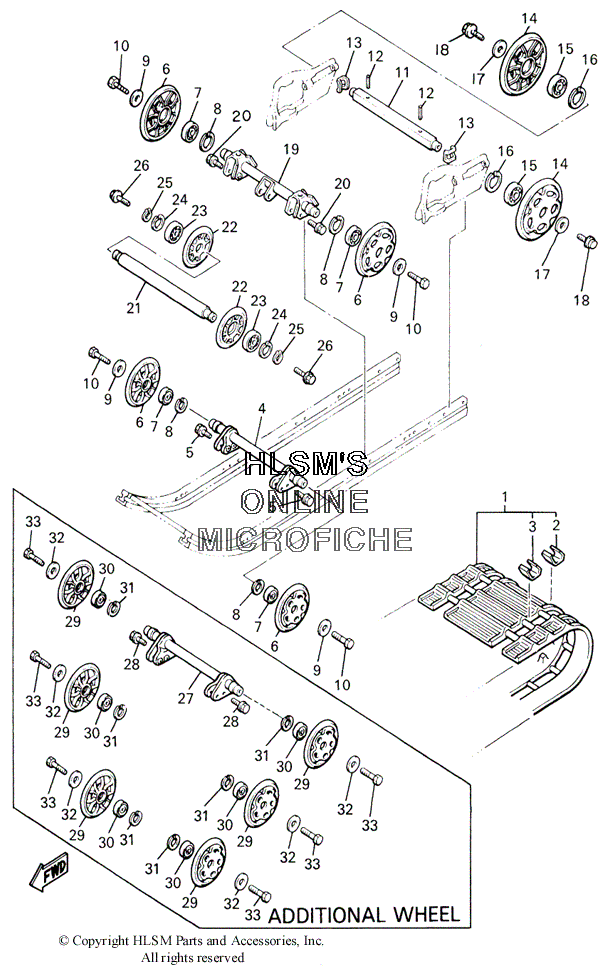

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha BRAVO 250 - 2000 года выпуска`
-
№АртикулНазвание
-
189X-47110-00-00 TRACK ASSEMBLYTRACK ASSEMBLY
-
28A5-47113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
389A-47113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
48T9-47451-00-00 BAR, SUSPENSIONBAR, SUSPENSION
-
590101-06348-00 BOLTBOLT
-
687M-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
793306-00444-00 BEARINGBEARING
-
899009-42500-00 CIRCLIPCIRCLIP
-
990201-08681-00 WASHER, PLATEWASHER, PLATE
-
1090109-08559-00 BOLTBOLT
-
118E3-47521-00-00 AXLE, REARAXLE, REAR
-
1291609-40040-00 PIN, SPRINGPIN, SPRING
-
138E3-47384-00-00 WASHERWASHER
-
148L4-47530-00-00 GUIDE WHEEL COMPGUIDE WHEEL COMP
-
1593306-20469-00 BEARINGBEARING
-
1699009-47500-00 CIRCLIPCIRCLIP
-
1790201-083A8-00 WASHER, PLATEWASHER, PLATE
-
1895827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
198V5-47451-00-00 BAR, SUSPENSIONBAR, SUSPENSION
-
2090119-08008-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
218L1-47461-00-00 IDLERIDLER
-
228H8-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
2393306-00444-00 BEARINGBEARING
-
2499009-42500-00 CIRCLIPCIRCLIP
-
2599009-20400-00 CIRCLIPCIRCLIP
-
2695827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
278T9-47451-00-00 BAR, SUSPENSIONBAR, SUSPENSION
-
2890101-06348-00 BOLTBOLT
-
2987M-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
3093306-00444-00 BEARINGBEARING
-
3199009-42500-00 CIRCLIPCIRCLIP
-
3290201-08681-00 WASHER, PLATEWASHER, PLATE
-
3390109-08559-00 BOLTBOLT
