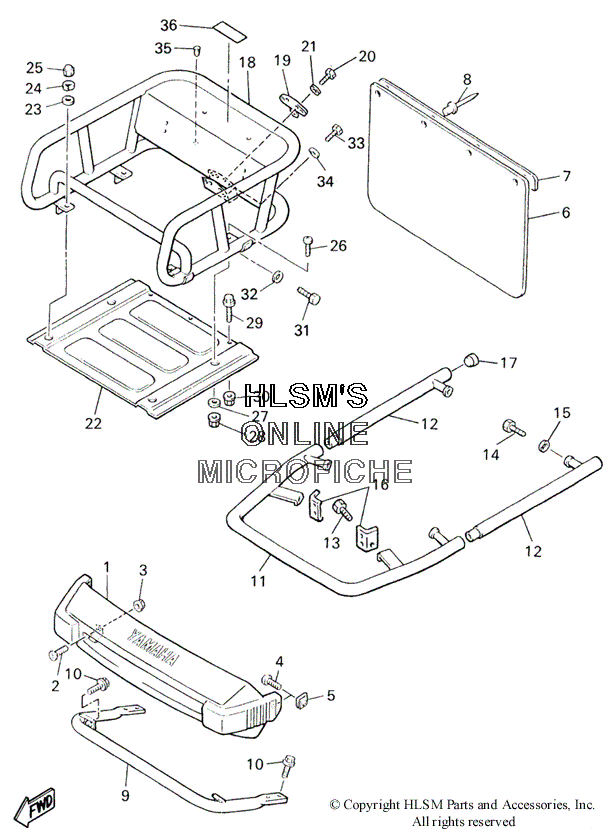

BUMPER - FRONT AND REAR для Yamaha BRAVO 250 - 2000 года выпуска`
-
№АртикулНазвание
-
181X-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
298907-06016-00 SCREW, BINDSCREW, BIND
-
395707-06500-00 NUT, FLANGENUT, FLANGE
-
498907-05012-00 SCREW, BINDSCREW, BIND
-
590183-05013-00 NUT, SPRINGNUT, SPRING
-
68R4-77595-01-00 FLAPFLAP
-
780J-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
890267-48086-00 RIVET, BLINDRIVET, BLIND
-
98R4-77513-00-00 BUMPER, FRONT 3BUMPER, FRONT 3
-
1095807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
118AF-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
128AF-77513-00-00 BUMPER, FRONT 3BUMPER, FRONT 3
-
1395807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1497007-08016-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
1684A-77531-01-00 BRACKET, FRONTBRACKET, FRONT
-
1790338-18176-00 PLUGPLUG
-
188Y1-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
1984R-77592-00-00 BRACKET, HITCH 2BRACKET, HITCH 2
-
2097027-08020-00 BOLTBOLT
-
2192907-08600-00 WASHER, PLATEWASHER, PLATE
-
228Y1-77554-00-00 PROTECTOR 4PROTECTOR 4
-
2392907-08600-00 WASHER, PLATEWASHER, PLATE
-
2492907-08100-00 WASHER, SPRINGWASHER, SPRING
-
2595307-08800-00 NUTNUT
-
2698907-08020-00 SCREW, BINDSCREW, BIND
-
2790201-086A3-00 WASHER, PLATEWASHER, PLATE
-
2895707-08300-00 NUT, FLANGENUT, FLANGE
-
2995827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
3095707-08300-00 NUT, FLANGENUT, FLANGE
-
3197027-08016-00 BOLTBOLT
-
3292907-08600-00 WASHER, PLATEWASHER, PLATE
-
3397027-08020-00 BOLTBOLT
-
3492907-08600-00 WASHER, PLATEWASHER, PLATE
-
3590464-48226-00 CLAMPCLAMP
-
3689X-24897-00-00 EMBLEMEMBLEM
