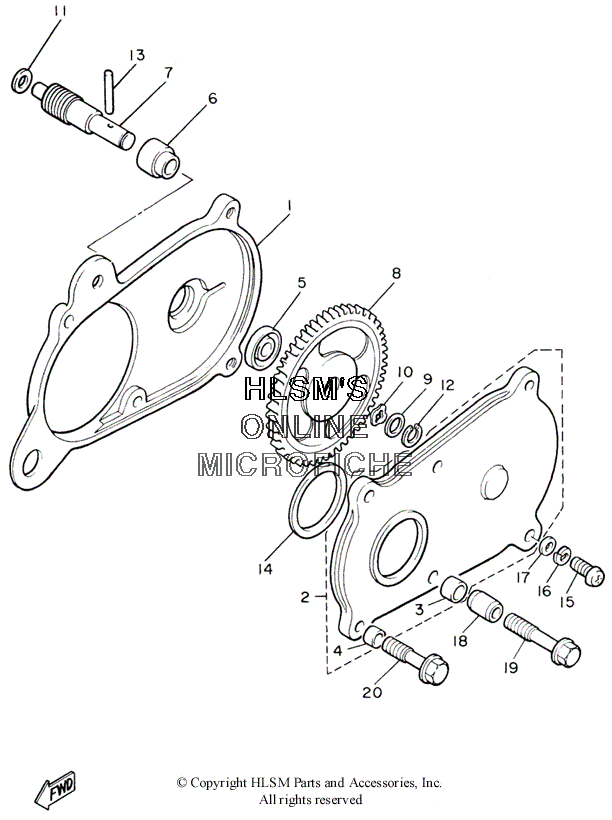

OIL PUMP DRIVE GEAR для Yamaha BRAVO 250 - 2000 года выпуска`
-
№АртикулНазвание
-
18R4-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
28R4-15426-00-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
390387-082N1-00 ...COLLAR...COLLAR
-
490387-062N2-00 ...COLLAR...COLLAR
-
593101-10001-00 OIL SEALOIL SEAL
-
6821-13176-00-00 METAL, WORM SHAFT OUTERMETAL, WORM SHAFT OUTER
-
78R4-13175-00-00 SHAFT, WORMSHAFT, WORM
-
88R4-13188-00-00 GEAR, DRIVEGEAR, DRIVE
-
9137-13148-00-00 PLATE, CAM THRUSTPLATE, CAM THRUST
-
1090206-11016-00 WASHER, WAVEWASHER, WAVE
-
1190201-08624-00 WASHER, PLATEWASHER, PLATE
-
1299009-10400-00 CIRCLIPCIRCLIP
-
1393603-22028-00 PIN, DOWELPIN, DOWEL
-
1493104-29072-00 OIL SEALOIL SEAL
-
1598507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1891808-22019-00 PIN, DOWELPIN, DOWEL
-
1995827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2095827-06025-00 BOLT, FLANGEBOLT, FLANGE
Все узлы модели:
- AIR INTAKE W/ INTAKE
- AIR SHROUD W/ FAN
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH REPAIR KIT
- CLUTCH TUNE-UP KIT
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK 1
- FUEL TANK 2
- GUARD - LUGGAGE BOX
- HANDLE SWITCH - LEVER
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- OIL PUMP ASSY
- • OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT ASSY
- SHROUD WINDSHIELD
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- THUMB/GRIP WARMER KIT
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
