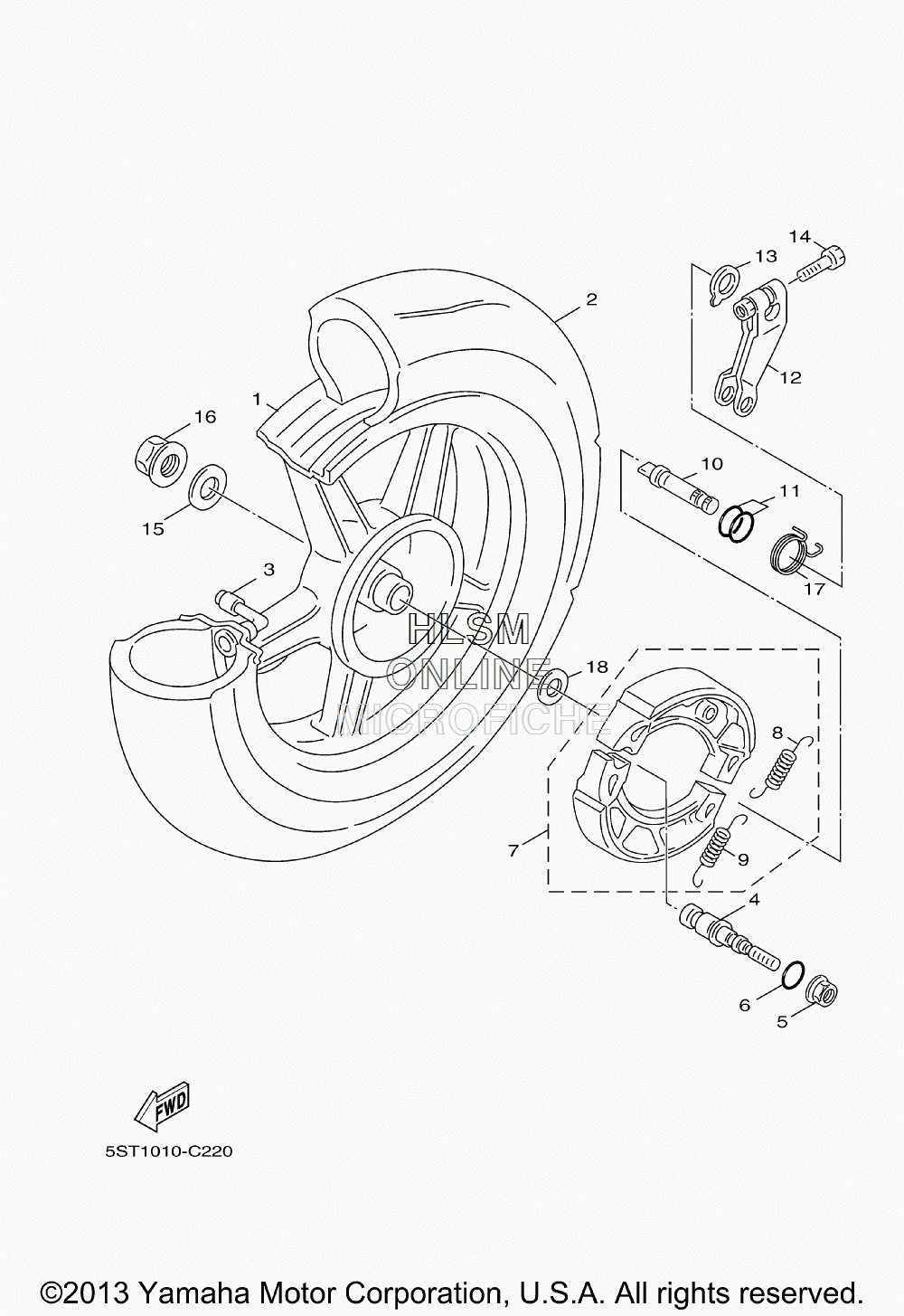

WHEEL - REAR для Yamaha VINO CLASSIC - 2014 года выпуска`
-
№АртикулНазвание
-
15ST-F5338-00-35 CAST WHEEL, REAR (SILVER)CAST WHEEL, REAR (SILVER)
-
294109-10807-00 TIRE (90/90-10 41J C922) CHENGSHINTIRE (90/90-10 41J C922) CHENGSHIN
-
393900-00802-00 VALVE, RIMVALVE, RIM
-
45ST-F5326-10-00 PIN, PIVOTPIN, PIVOT
-
595707-08500-00 NUT, FLANGENUT, FLANGE
-
693210-07803-00 O-RINGO-RING
-
75SW-WF53E-10-00 BRAKE SHOE KITBRAKE SHOE KIT
-
890506-12001-00 ...SPRING, TENSION...SPRING, TENSION
-
990506-15001-00 ...SPRING, TENSION...SPRING, TENSION
-
105SU-F5351-00-00 CAMSHAFTCAMSHAFT
-
1193210-10801-00 O-RINGO-RING
-
125SU-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
135SU-F533A-01-00 PLATE, INDICATORPLATE, INDICATOR
-
1490101-06278-00 BOLTBOLT
-
1590201-142M6-00 WASHER, PLATEWASHER, PLATE
-
1690185-14814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
175SU-F5357-00-00 SPRING, LEVER RETURNSPRING, LEVER RETURN
-
1890201-17255-00 WASHER, PLATEWASHER, PLATE
