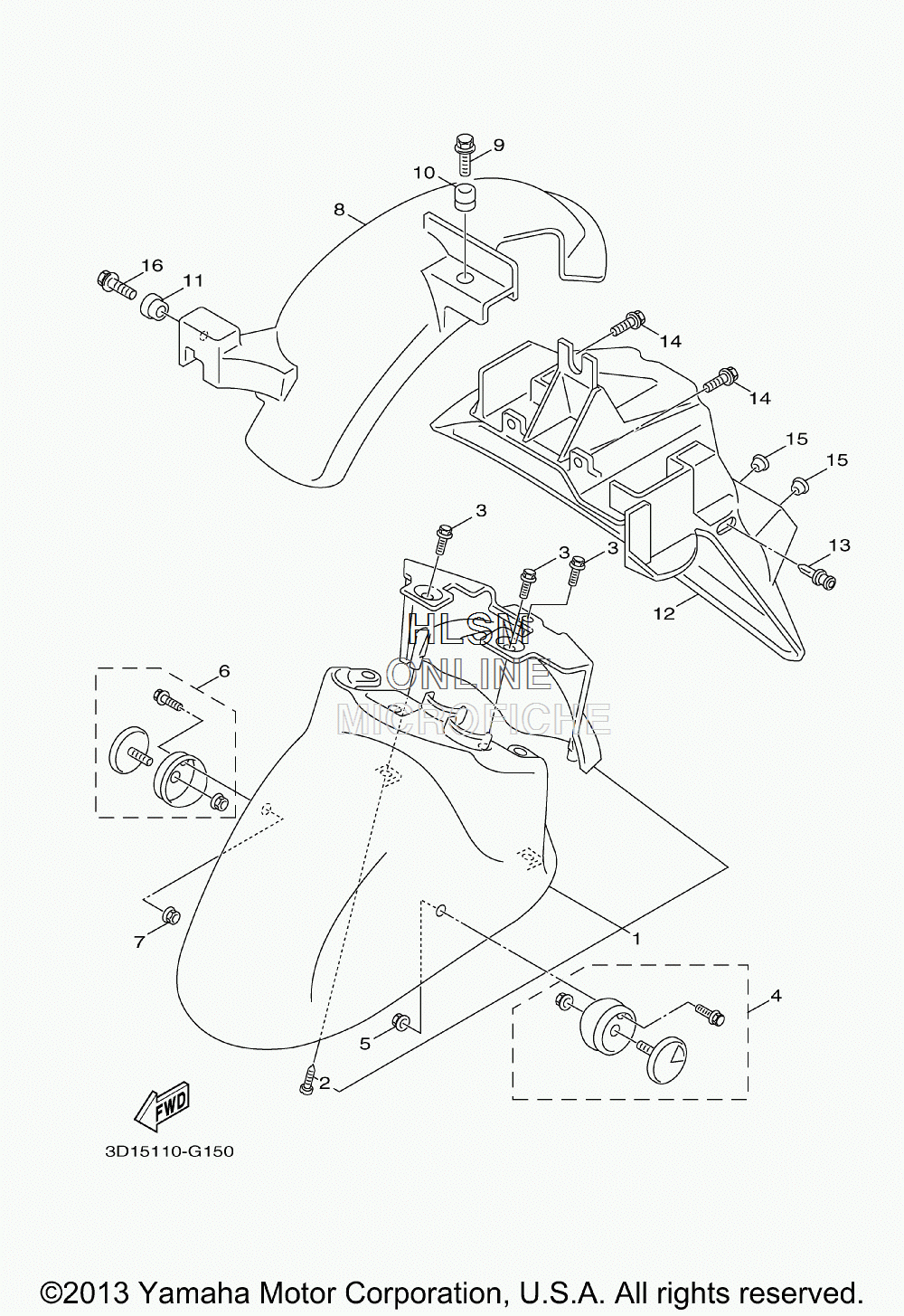

FENDER - FRONT / REAR для Yamaha VINO CLASSIC - 2014 года выпуска`
-
№АртикулНазвание
-
13D1-F1500-00-P9 FRONT FENDER ASSYFRONT FENDER ASSY
-
297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43D1-H5110-00-00 REFLECTOR ASSYREFLECTOR ASSY
-
595707-06500-00 NUT, FLANGENUT, FLANGE
-
63D1-H5120-00-00 FRONT REFLECTOR ASSY 2FRONT REFLECTOR ASSY 2
-
795707-06500-00 NUT, FLANGENUT, FLANGE
-
85ST-F1611-03-00 FENDER, REARFENDER, REAR
-
990119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090387-063F7-00 COLLARCOLLAR
-
1190387-06868-00 COLLARCOLLAR
-
125ST-F1629-02-00 GUARD, MUDGUARD, MUD
-
1390269-06802-00 RIVETRIVET
-
1490109-06043-00 BOLTBOLT
-
153D1-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
1690119-06873-00 BOLT, WITH WASHERBOLT, WITH WASHER
