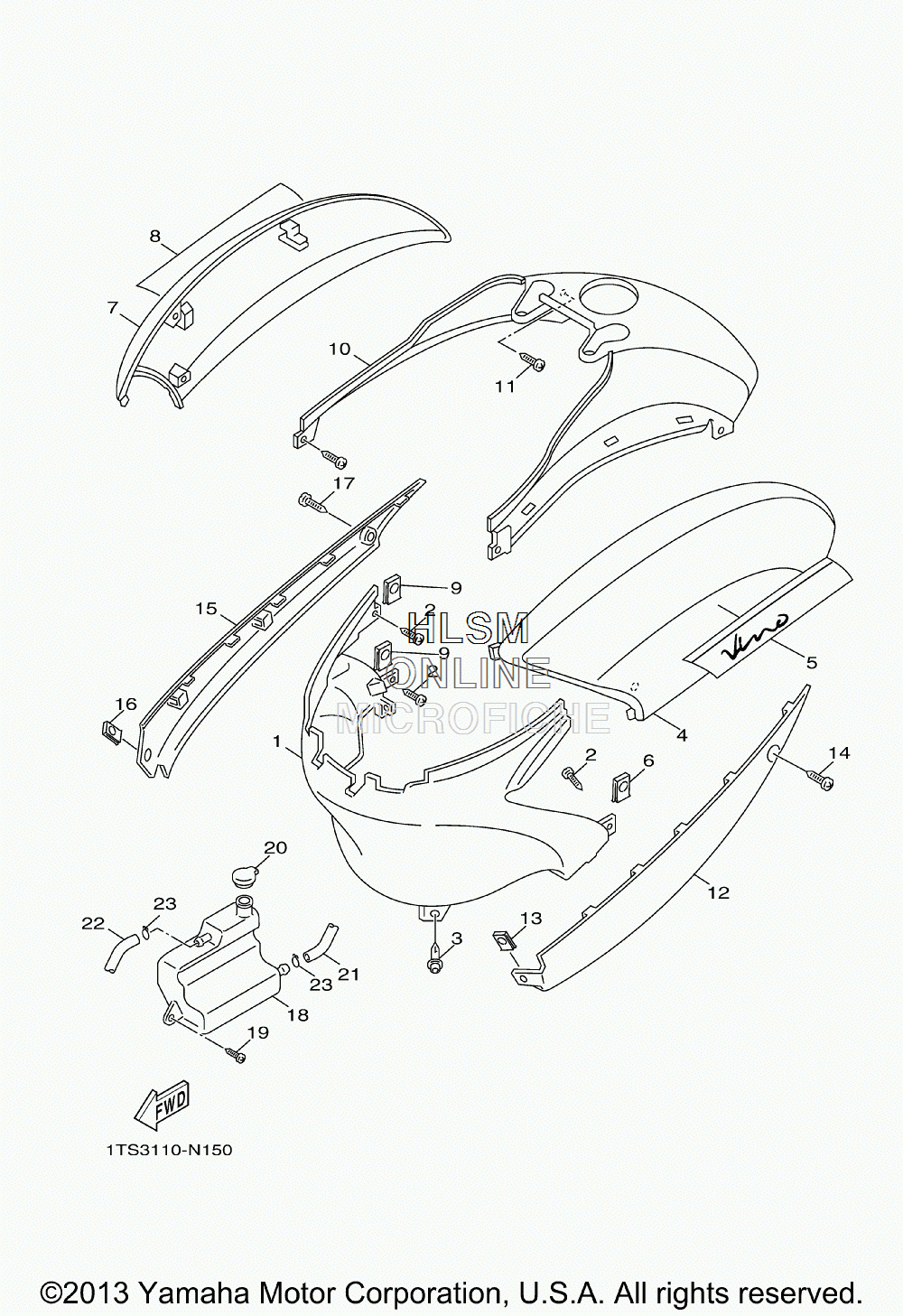

SIDE COVER для Yamaha VINO CLASSIC - 2014 года выпуска`
-
№АртикулНазвание
-
113P-F1711-20-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390269-07802-00 RIVETRIVET
-
413P-F1721-00-P4 COVER, SIDE 2COVER, SIDE 2
-
51TS-F1781-00-00 EMBLEM 1EMBLEM 1
-
690183-05807-00 NUT, SPRINGNUT, SPRING
-
713P-F1731-00-P4 COVER, SIDE 3COVER, SIDE 3
-
81TS-F1782-00-00 EMBLEM 2EMBLEM 2
-
990183-05807-00 NUT, SPRINGNUT, SPRING
-
105ST-F1741-41-00 COVER, SIDE 4COVER, SIDE 4
-
1197707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
125ST-F7482-00-PP MOLE, FOOTRESTMOLE, FOOTREST
-
1390183-05807-00 NUT, SPRINGNUT, SPRING
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
155ST-F7492-00-PP MOLE, FOOTREST 2MOLE, FOOTREST 2
-
1690183-05807-00 NUT, SPRINGNUT, SPRING
-
1797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
185ST-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
205CA-F1815-00-00 CAPCAP
-
2190445-09821-00 HOSEHOSE
-
225ST-F1877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
2390467-09006-00 CLIPCLIP
