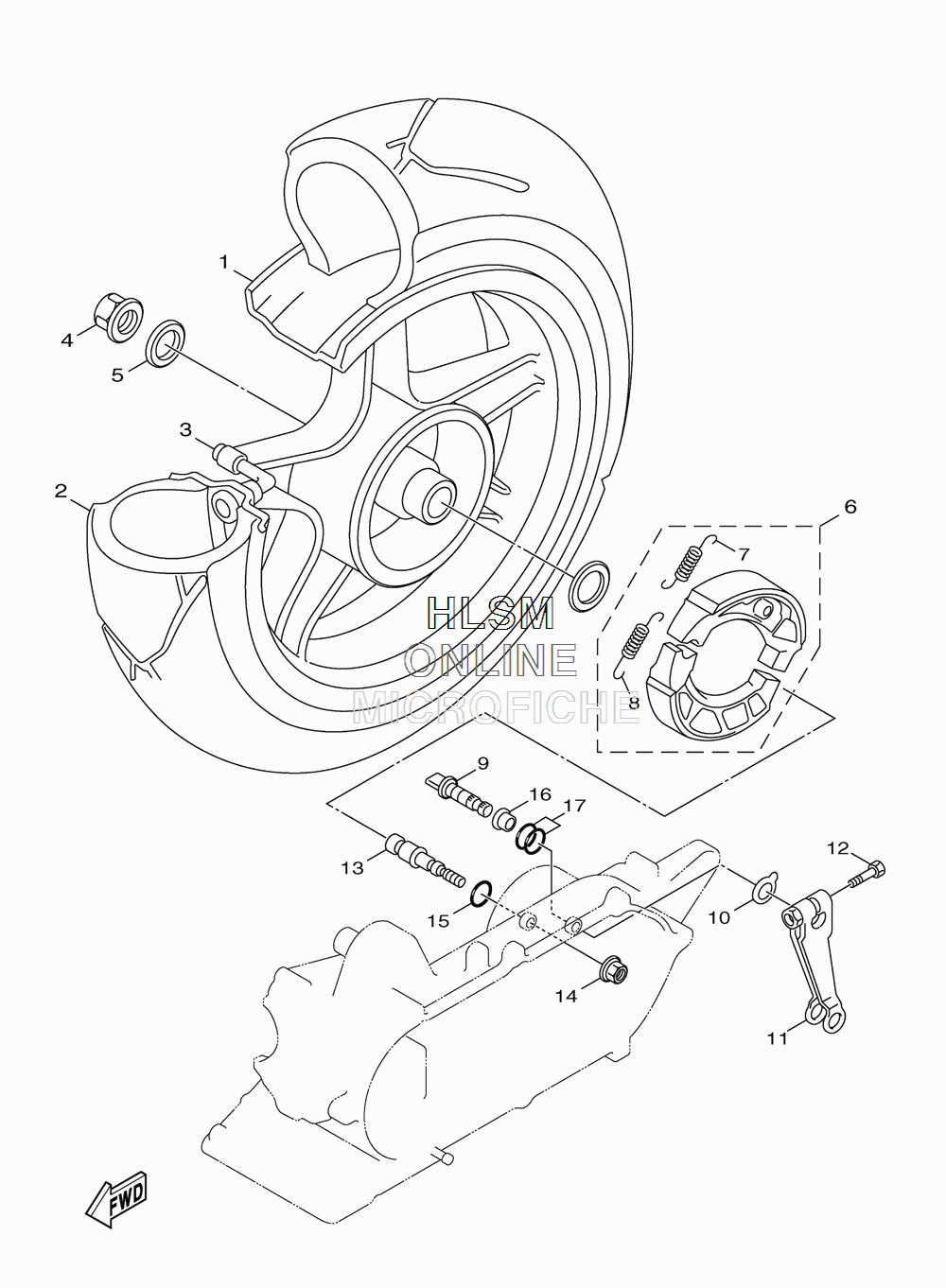

WHEEL - REAR для Yamaha ZUMA 125 - 2013 года выпуска`
-
№АртикулНазвание
-
15ML-F5338-20-33 CAST WHEEL, REAR (YB = YAMAHA BLACK)CAST WHEEL, REAR (YB = YAMAHA BLACK)
-
294113-12802-00 TIRE (130/70-12 56L) KENDATIRE (130/70-12 56L) KENDA
-
393900-00814-00 VALVE, RIM (PVR70)VALVE, RIM (PVR70)
-
490185-14124-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-220J8-00 WASHER, PLATEWASHER, PLATE
-
65ML-XF533-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
790506-13800-00 ...SPRING, TENSION...SPRING, TENSION
-
890506-16802-00 ...SPRING, TENSION...SPRING, TENSION
-
95S9-F5351-00-00 CAMSHAFTCAMSHAFT
-
104VP-F533A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
115S9-F5355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1290101-06830-00 BOLTBOLT
-
135ML-F5326-00-00 PIN, PIVOTPIN, PIVOT
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
-
1593210-09859-00 O-RINGO-RING
-
165ML-F5377-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1793210-14802-00 O-RINGO-RING
