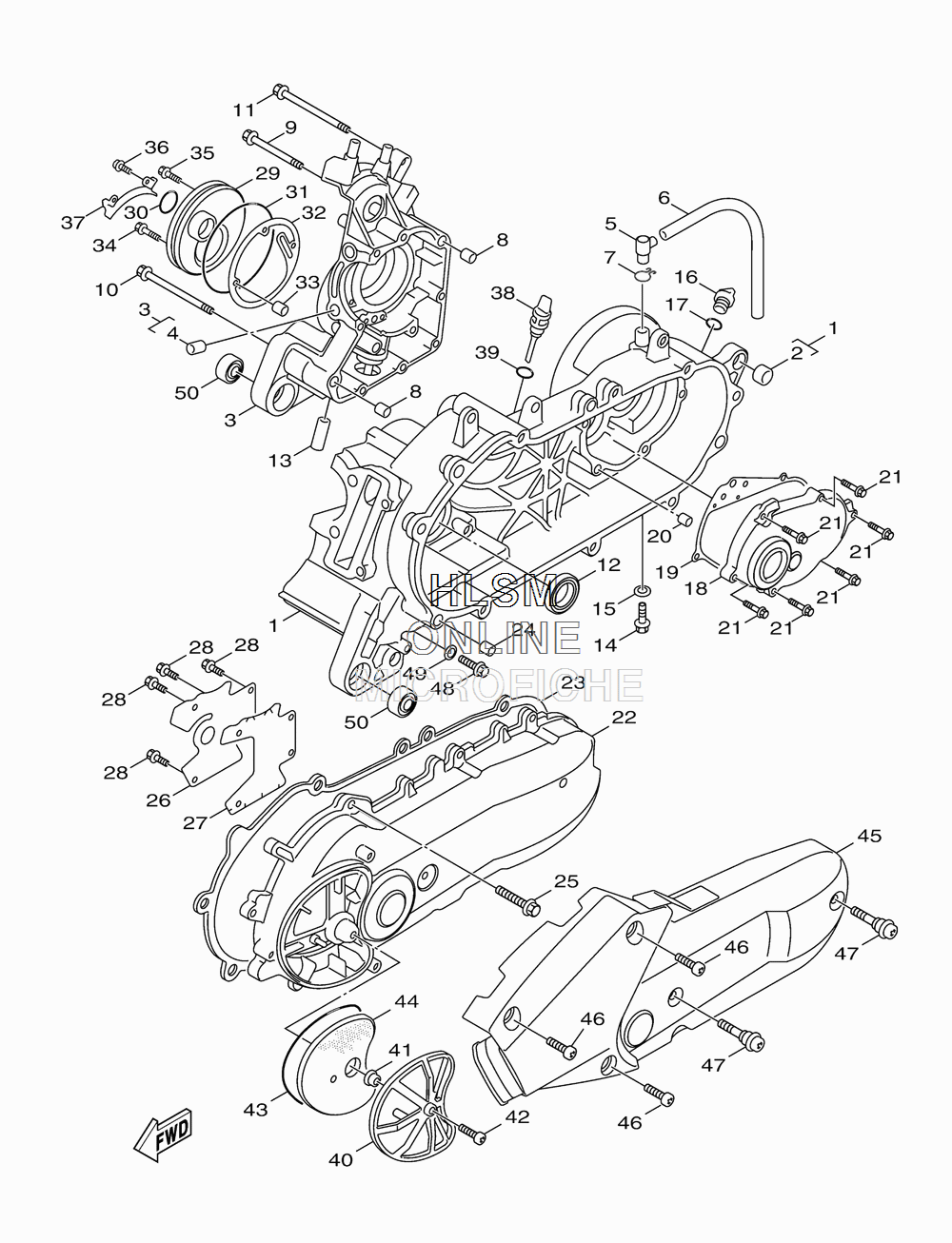

CRANKCASE ASSY. для Yamaha ZUMA 125 - 2013 года выпуска`
-
№АртикулНазвание
-
15S9-WE511-01-00 CRANKCASE 1CRANKCASE 1
-
24X6-F2216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
35S9-WE512-00-00 CRANKCASE 2CRANKCASE 2
-
45ML-E5138-00-00 ...NOZZLE 1...NOZZLE 1
-
55CA-E5371-00-00 BREATHERBREATHER
-
690446-13803-00 HOSEHOSE
-
790467-12052-00 CLIPCLIP
-
891810-14807-00 PIN, DOWELPIN, DOWEL
-
990105-06808-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-06810-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-06817-00 BOLT, FLANGEBOLT, FLANGE
-
1293102-22843-00 OIL SEALOIL SEAL
-
135ML-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1495817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1590430-08816-00 GASKETGASKET
-
164Y4-E5363-00-00 PLUG, OILPLUG, OIL
-
1793210-14805-00 O-RINGO-RING
-
185S9-E5421-02-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
195S9-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2091810-14807-00 PIN, DOWELPIN, DOWEL
-
2190105-06895-00 BOLT, FLANGEBOLT, FLANGE
-
225S9-E5411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
235S9-E5451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
2491810-14807-00 PIN, DOWELPIN, DOWEL
-
2595027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
265ML-E5191-00-00 PLATEPLATE
-
275ML-E5455-00-00 GASKET 1GASKET 1
-
2895027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
295ML-E5417-00-00 COVER, CAPCOVER, CAP
-
3093102-19293-00 OIL SEALOIL SEAL
-
3193211-07801-00 O-RINGO-RING
-
325ML-E5453-00-00 GASKETGASKET
-
3399480-05010-00 PINPIN
-
3490105-06809-00 BOLT WASHER BASEDBOLT WASHER BASED
-
3590105-06807-00 BOLT, FLANGEBOLT, FLANGE
-
3690105-06806-00 BOLT, FLANGEBOLT, FLANGE
-
375ML-E5113-00-00 PLATEPLATE
-
385S9-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
395ML-E3769-00-00 O-RINGO-RING
-
405ML-E5404-00-00 GUIDE, ELEMENTGUIDE, ELEMENT
-
4190387-06819-00 COLLARCOLLAR
-
4290154-06826-00 SCREW, BINDINGSCREW, BINDING
-
435ML-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
445ML-E5407-00-00 ELEMENT 1ELEMENT 1
-
455S9-XE543-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
4690154-06827-00 SCREW, BINDINGSCREW, BINDING
-
474DM-E5481-00-00 BOLT 1BOLT 1
-
4890340-12802-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
4990201-12172-00 WASHER, PLATEWASHER, PLATE
-
5093306-003Y4-00 BEARINGBEARING
